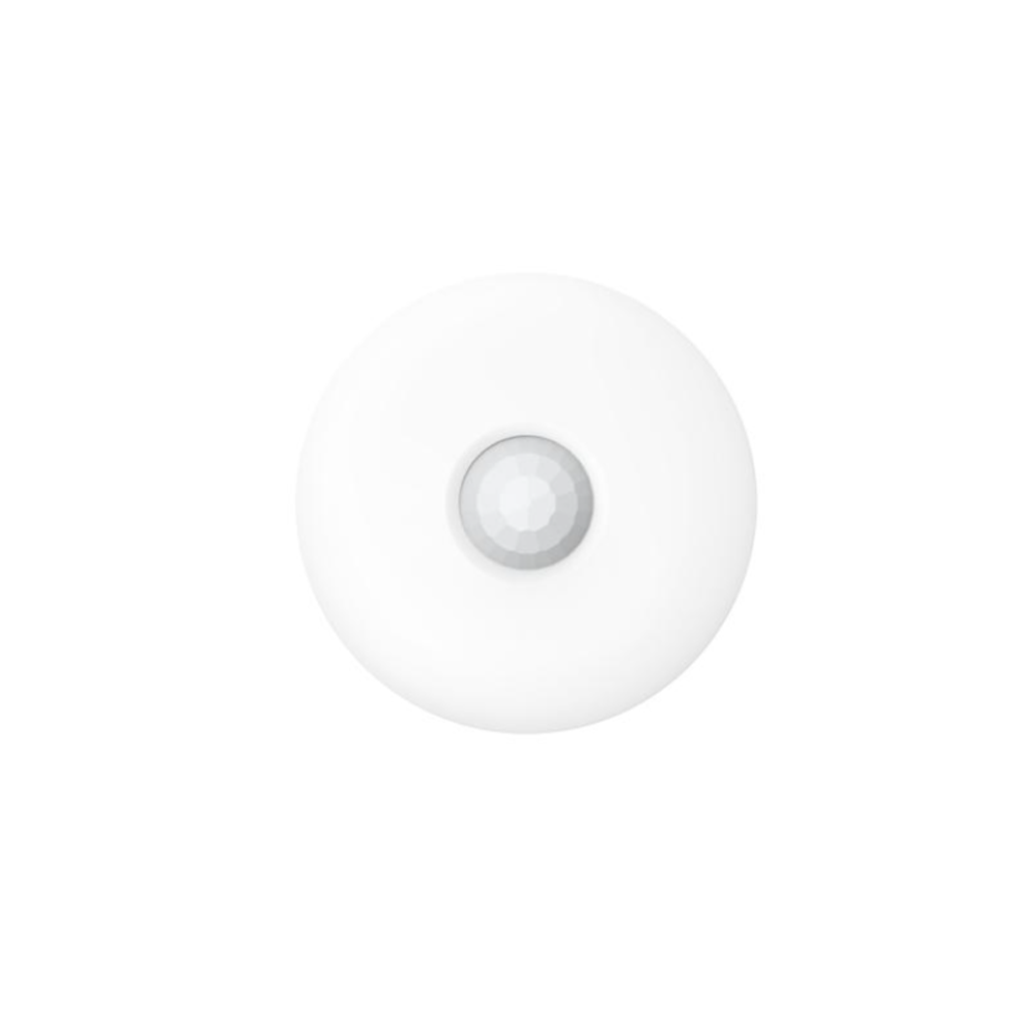

HIKVISION DS-PDCL12DT-EG2
Wired Dual-Tech Ceiling Detector
Features
- Digital quad pyro sensor + 24GHz microwave
- Automatic sensitivity
- Wide voltage adaptation and on-board EoL resistor
Specification
| Detection Performance | |
| Detection Method | Passive Infrared, Microwave |
| Detection Range | 12 m |
| Detection Angle | 360° |
| Detection Zones | 172 |
| Detectable Speed | 0.3 to 2m/s |
| Sensitivity | Auto, Low |
| White Light Filter | 6500lux |
| Microwave Frequency | 24 GHz(24.15～24.25 GHz) |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front |
| Interface | |
| LED Indicator | Green(PIR), Red(Microwave), Blue(Alarm) |
| Electrical characteristics | |
| Power consumption | 100 mA Max |
| Electrical Characteristics | |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| General | |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(W × H × D) | φ120 mm × 33.2 mm |
| Weight | 138 g |
| Mounting Height | 2.4 to 4 m |
| Mounting Method | Ceiling |
| Application Scenario | Indoor |
