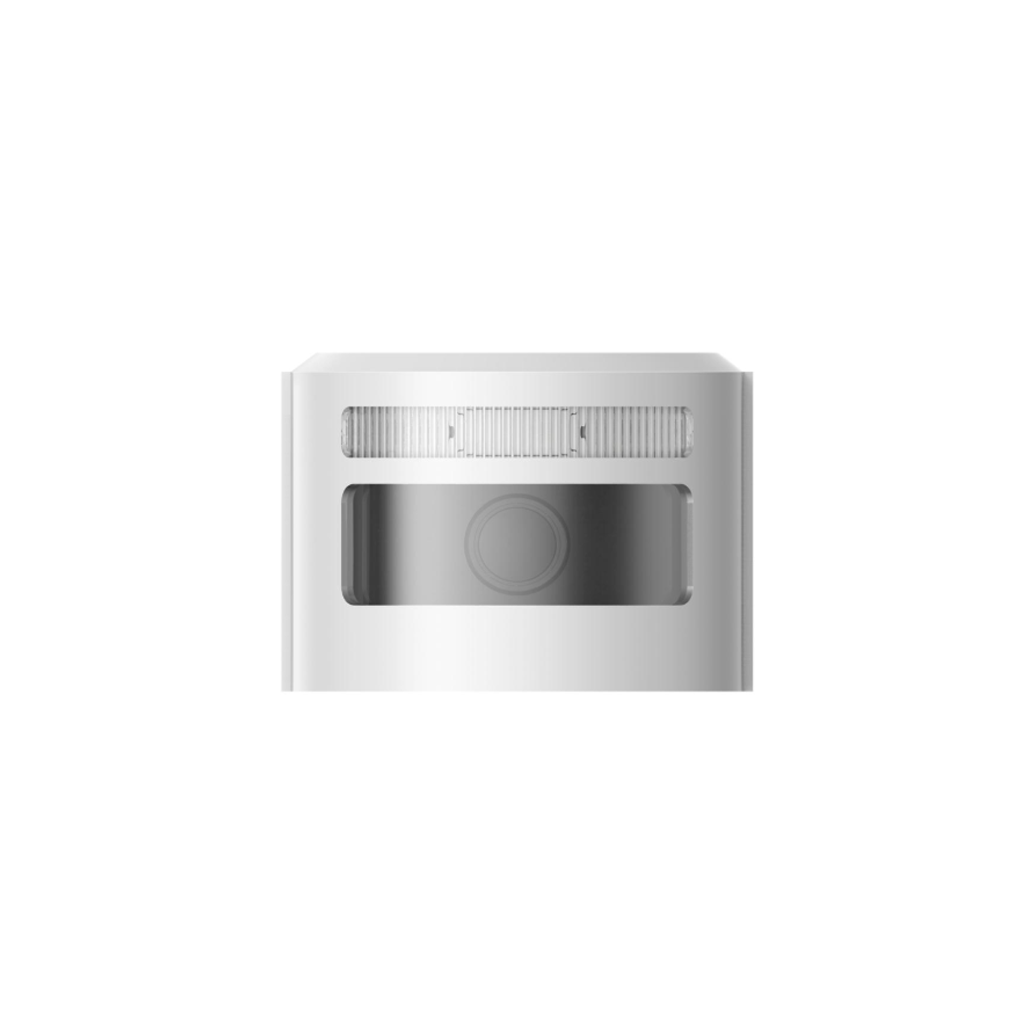

HIKVISION DS-PDCM15PF-IR
RF Camera Module
Features
- 1/2.7″ Progressive Scan CMOS
- 2.0 mm fixed lens
- 3D Digital Noise Reduction
- Easy Installation
- The direction of the Angle can be adjusted to fit the TT Detector’s Angle
- Protection Level IP66
Specification
| Detection Performance | |
| Detection Method | Video Verification |
| Feature | |
| Digital Noise Reduction | 3D |
| Focal length | [email protected] |
| Video | |
| Field Angle | 137.2°(H), 80.1°(V) |
| Image Type | JPEG |
| Resolusion | 640*480,320*240,160*120 |
| Fill Light | Infrared Light |
| Fill Range | 15m |
| Day/Night Switch | Auto |
| Interface | |
| Communication Interface | 1 12-Bit Data Interface |
| Electrical Characteristics | |
| Power Supply | 3 VDC |
| Power Consumption | 1200mA |
| General | |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP66 |
| Dimension(WxHxD) | 74.1mm x 72.35mm x 53mm |
| Weight | 155g |
