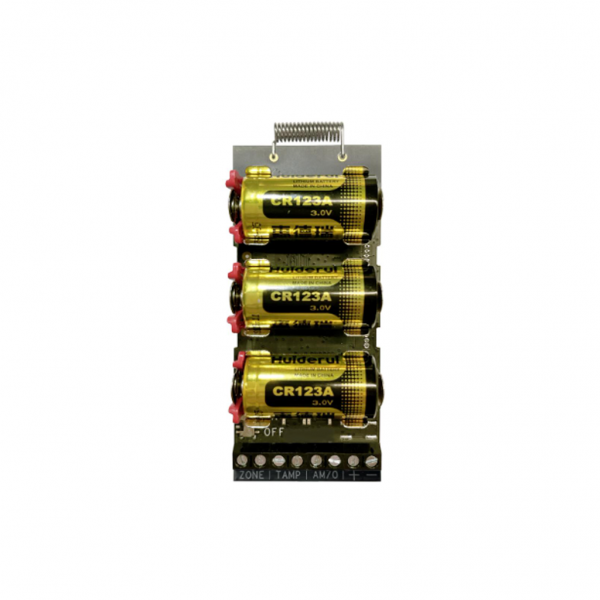

HIKVISION DS-PM1-I1-WB
Single Input Transmitter
Features
- Small size design, which can be put into wired detector easily
- 433MHz two-way wireless communication
- LED display, show the real status of device
- With one tamper input and one PGM, can be used as zone input or alarm outpout
- With 3.3v voltage output, can be used to power up external wired detector
- Detection of device removal by accelerometer
Specification
| Hardware features | |
| Serial port | 1 |
| Power switch | 1 |
| Alarm input | 1 Alarm, 1 Tamper |
| Alarm output | 1 PGM, AM/Output |
| 3.3v Output | 1, up to 10mA |
| Electrical characteristics | |
| Power supply | 3 CR123 |
| Operation humidity | 10%~90% |
| Operation temperature | –10℃ ~ 55℃ |
| Power consumption | Quiescent current: 40.29 uA Max current: 47.85mA Voltage: 3 VDC |
| Battery life span | Up to 5 years (standby time) |
| Wireless transmission | |
| RF frequency | 433MHz |
| RF method | Two-way communication |
| RF modulation | 2GFSK |
| RF distance | 1300m |
| Display | |
| Indicator | 3: Alarm/Tamper（Red）, Fault（Amber）, Signal Strength（Green/Red） |
| General | |
| Installation method | Put inside Wireless Ready Detector |
| Dimension(WxHxD) | 102*41*20mm |
| Weight | 35g(Without Battery), 90g(With Battery) |
