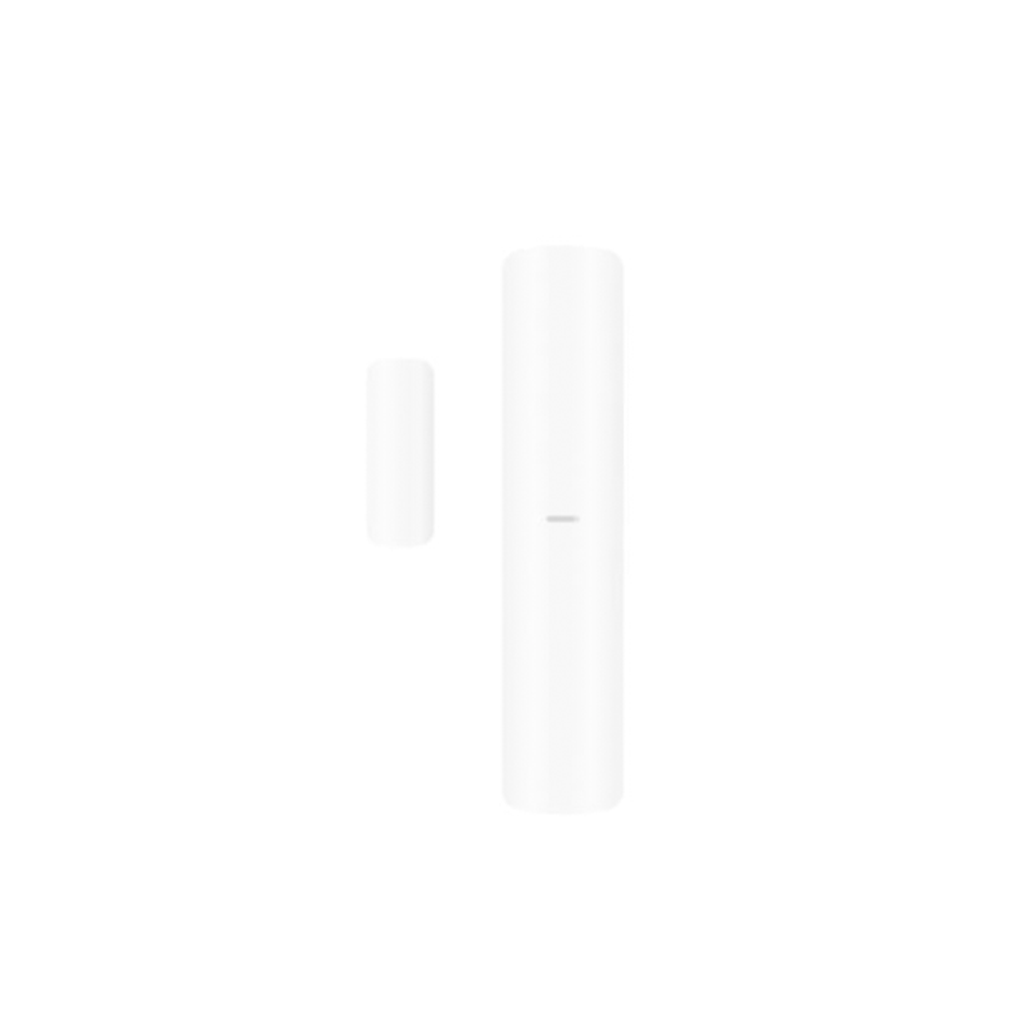

HIKVISION DS-PDMCK-EG2-WB
Wireless Magnet Shock Detector
Features
- Magnetic contact combined with shock and tilt detection
- 2 wired inputs extension
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission
Specification
| Detection Performance | |
| Detection Method | Opening Contact,Shock Sensor |
| Detection Gap | 43mm Max |
| Sensitivity | Shock Detection: High,Normal,Low Tilt Detection: Up to 25° |
| Feature | |
| Digital Processing | Support |
| Tamper Protection | Front, Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Alarm Input | Normally Closed, Normally Open, Impulse Count |
| Power Switch | Power up enrolling |
| LED Indicator | Green(MC),Orange(tilt),Red(shock),Blue(alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up, Remote ID, QR Code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 3 years (standby time) |
| Power Supply | Battery powered |
| Battery Type | CR123A x 1 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 22.5mm × 103mm × 23.2mm 13mm × 34.4mm × 11.4mm |
| Weight | 60g |
| Application Scenario | Indoor |
