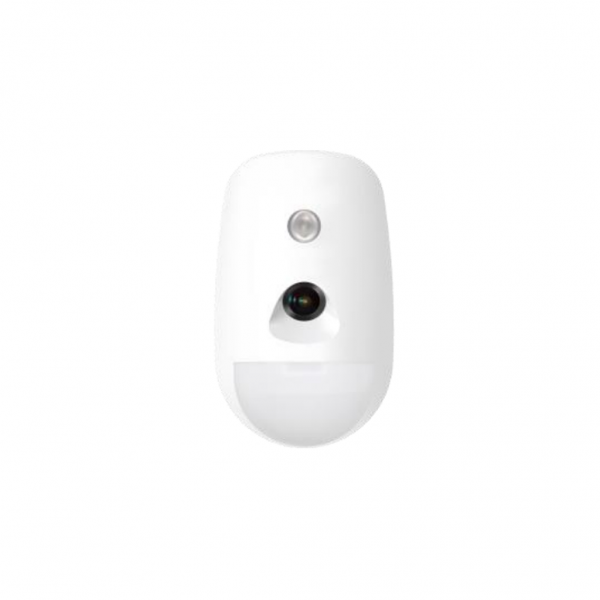

HIKVISION DS-PDPC12P-EG2-WE
Wireless PIR-CAM Detector
Features
- Detection range: 12m/85.9°
- Up to 30 kg pet immunity
- SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
- Polarizing IR lens design for more uniform night illumination and excellent night shots
- Large integrated memory buffer for image storage
- Fully remote configurable through APP
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
Specification
| Detection Performance | |
| Detection Method | Passive infrared, video verification |
| Sensor Model | SFG321-711 |
| Detection Range | 12m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3 to 2m/s |
| Sensitivity | Auto, High, Pet |
| Pet Immunity | 30 kg |
| White Light Filter | 6500lux |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front, Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Video | |
| Image Sensor | ASX340 |
| Field Angle | 88°(H), 68°(V) |
| Image Type | JPEG |
| Resolusion | 640*480, 320*240, 160*120 |
| Frame Rate | 2 |
| Fill Light | Infrared Light |
| Fill Range | 12m |
| Day/Night Switch | Color/Black & White |
| Interface | |
| Power Switch | Power Up Enrolling |
| LED Indicator | Blue (Alarm) |
| Transmission | |
| Transmission Technology | CAM-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868 MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 800m |
| Enrolling Method | Power up, Remote ID, QR Code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 6 years (standby time) |
| Power Supply | Battery powered |
| Battery Type | CR123A × 3 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10°C to 55°C (14°F to 131°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 72.2 mm × 120.5 mm × 56.7 mm |
| Weight | 210 g |
| Mounting Height | 1.8 m to 2.4 m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
