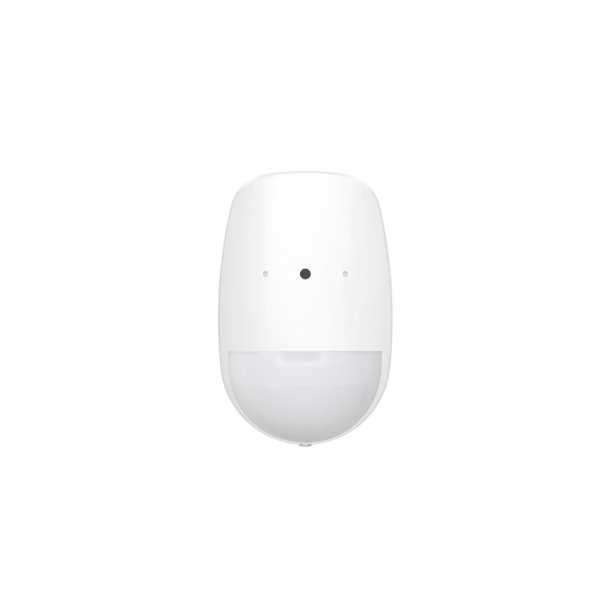

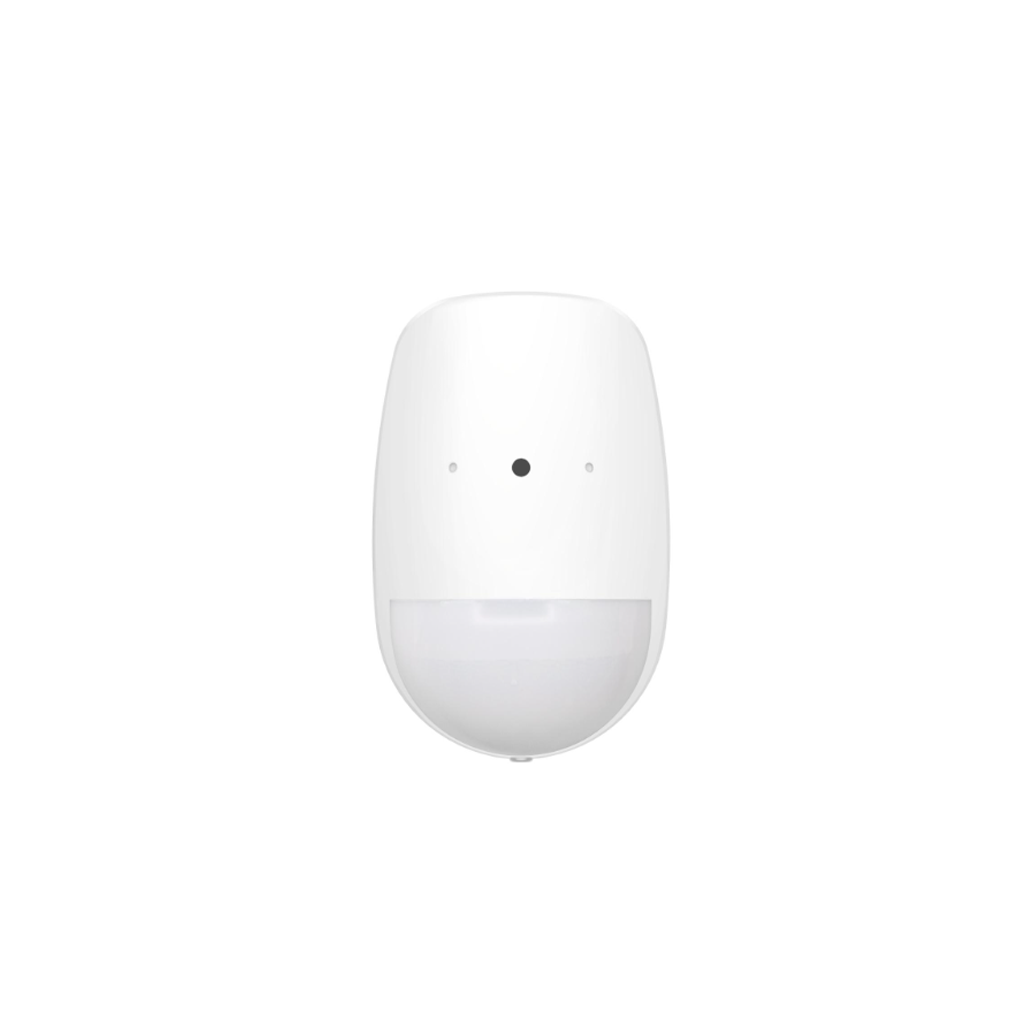

HIKVISION DS-PDPG12P-EG2
Wired PIR-Glass Break Detector
Features
- PIR Detection Range: 12m / 85.9°
- Glass Break Range: 8m / 120°
- Up to 30KG pet immunity
- Selectable EOL resistors
- 9-16 VDC wide voltage adaptation with polarity reverse connection protection
Specification
| Detection Performance | |
| Detection Method | Passive Infrared,Acoustic Sensor |
| Detection Range | 12 m |
| Detection Angle | 85.9° |
| Detection Zones | 52 |
| Detectable Speed | 0.3～2 m/s |
| Pet Immunity | 30 Kg |
| White Light Filter | 6500 lux |
| PIR Sensitivity | Auto, Pet |
| Glass Break Range | 8 m |
| Glass Type | Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing |
| Glass Thickness | 2.4 mm to 6.4 mm |
| Glass Break Sensitivity | Potentiometer Adjustment |
| Digital Temperature Compensation | Support |
| Glass Size | 0.3 m x 0.3 m to 3 m x 3 m |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front |
| Interface | |
| Alarm Output | Normally Closed |
| LED Indicator | Green(PIR), Red(BG), Blue(alarm) |
| Transmission | |
| Transmission Method | Wired |
| Electrical Characteristics | |
| Power Consumption | 36mA Max |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| General | |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(W × H × D) | 65.5 mm × 103 mm × 48.5 mm |
| Weight | 98.5 g |
| Mounting Height | 1.8 to 2.4 m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
