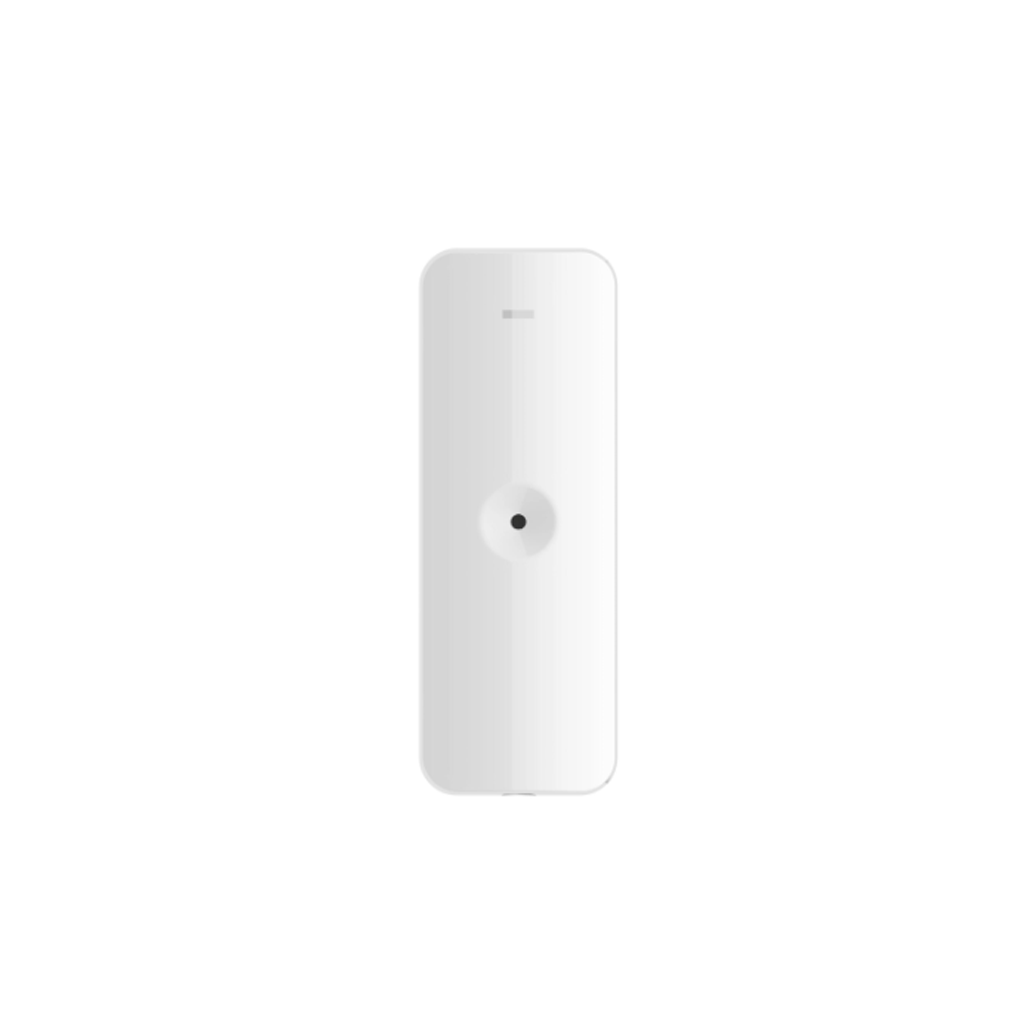

HIKVISION DS-PDBG8-EG2-WB
Wireless Glass Break Detector
Features
- High quality Omni-directional microphone sensor
- Fully remote configurable through App
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
Specification
| Detection Performance | |
| Detection Method | Acoustic Sensor |
| Detection Range | 8m |
| Detection Angle | 120° |
| Sensitivity | 2m, 4m, 6m, 8m |
| Glass Type | Float, Plate, Tampered, Wired, Laminated Leaded, Double Glazing |
| Glass Thickness | 2.4 mm to 6.4 mm |
| Glass Size | 0.3 m × 0.3 m to 3 m × 3 m |
| Feature | |
| Digital Processing | Support |
| Tamper Protection | Front, Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Alarm Input | Normally Closed, Normally Open, Impulse Count |
| Power Switch | Power up enrolling |
| LED Indicator | Blue (alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 433MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up, Remote ID, QR Code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 5 years (standby time) |
| Power Supply | Battery powered |
| Battery Type | CR123A × 2 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 38.8 mm × 107.0 mm × 24.5 mm |
| Weight | 83g |
| Mounting Method | Wall,Ceiling |
| Application Scenario | Indoor |
