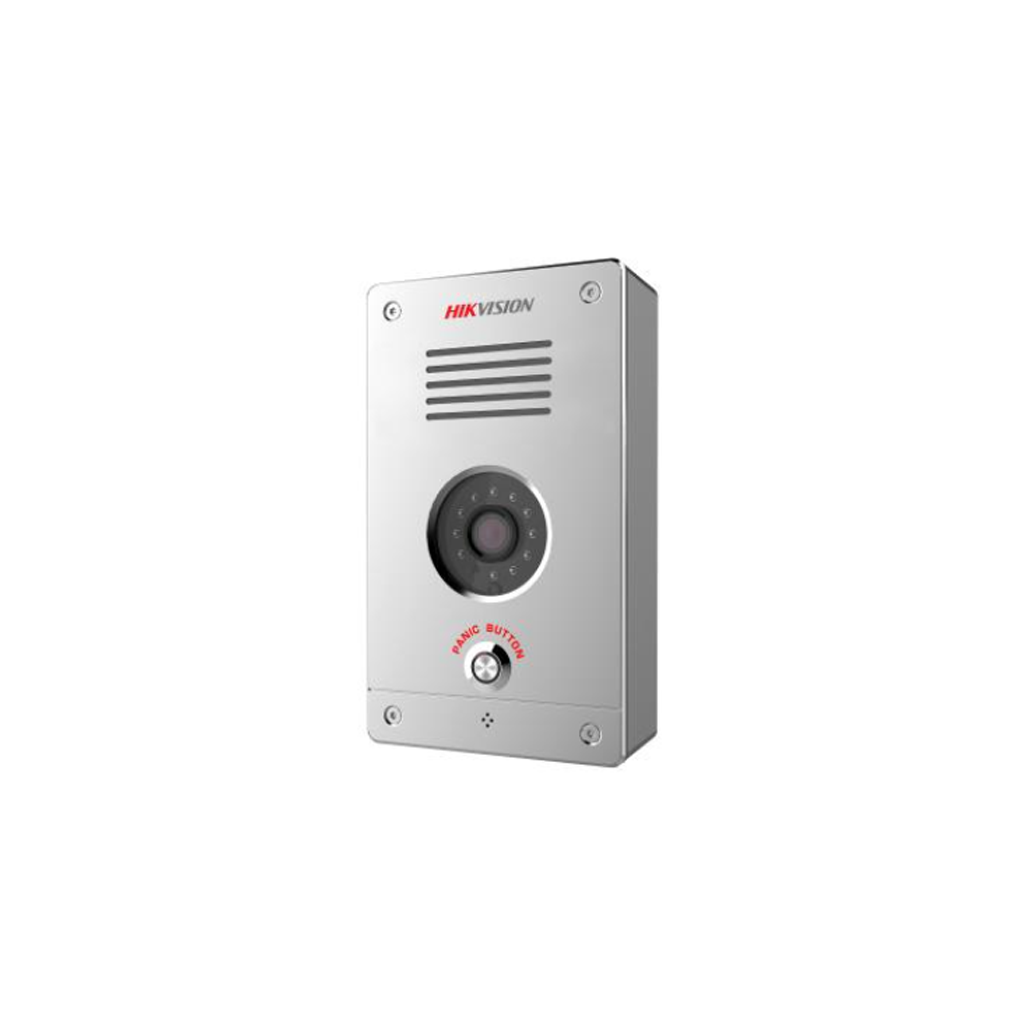

HIKVISION DS-PEA1-21
Video Panic Alarm Panel
Features
- One-touch emergency calling
- High quality imaging with 2 MP built-in camera
- Real-time security via sound and voice detection
- Supports broadcasting
- Supports dual net ports
- Built-in SD slot supports MicroSD / SDHC / SDXC up to 128 GB
- Supports siren and audio expansion
Specification
| Detection performance | |
| Sound pressure | 110dB, Sound Can be Configured Separately |
| Software features | |
| Tamper-Proof | tamper alarm |
| Intercom | 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m |
| Protocol | TCP/IP, RTSP, SNMP, HIK-SIP,ONVIF |
| Hardware features | |
| Alarm input | 2 |
| Alarm output | 2 |
| Netowrk interface | 1RJ45,10 M/100 M/1000 M self adaptive |
| Audio interface | 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m 1-ch 3.5 mm Audio Interface for External Audio Input |
| PSTN | 1 |
| Bus | RS-485 1, Half-duplex |
| SD Card | Standard Micro SD card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 128G |
| Video | |
| Resolusion | 1920*1080 |
| Frame rate | 25fps |
| Field Angle | Horizontal: 128° Vertical: 75° Diagonal: 147° |
| Day/night switch modeI | IR Cut Filter |
| Audio |
|
| Audio input | 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m 1-ch 3.5 mm Audio Interface for External Audio Input |
| Audio output | 1-ch 30 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output |
| Audio compression code rate | 64Kbps;16Kbps |
| Electrical characteristics | |
| Power supply | 12VDC |
| Power Consumption | ≤ 24 W |
| Wireless transmission | |
| Wired network | 10 M/100 M Self-adaptive Ethernet port |
| General | |
| Operation temperature | -40 °C to +60 °C (-40 °F to 140 °F) |
| Operation humidity | 10% to 90% |
| Dimension(WxHxD) | 218 mm × 128 mm × 58 mm (8.58″ × 5.04″ × 2.28″) |
| Installation method | Wall Mounting |
| Device management | |
| Camera | 2 MP HD IR Camera |
