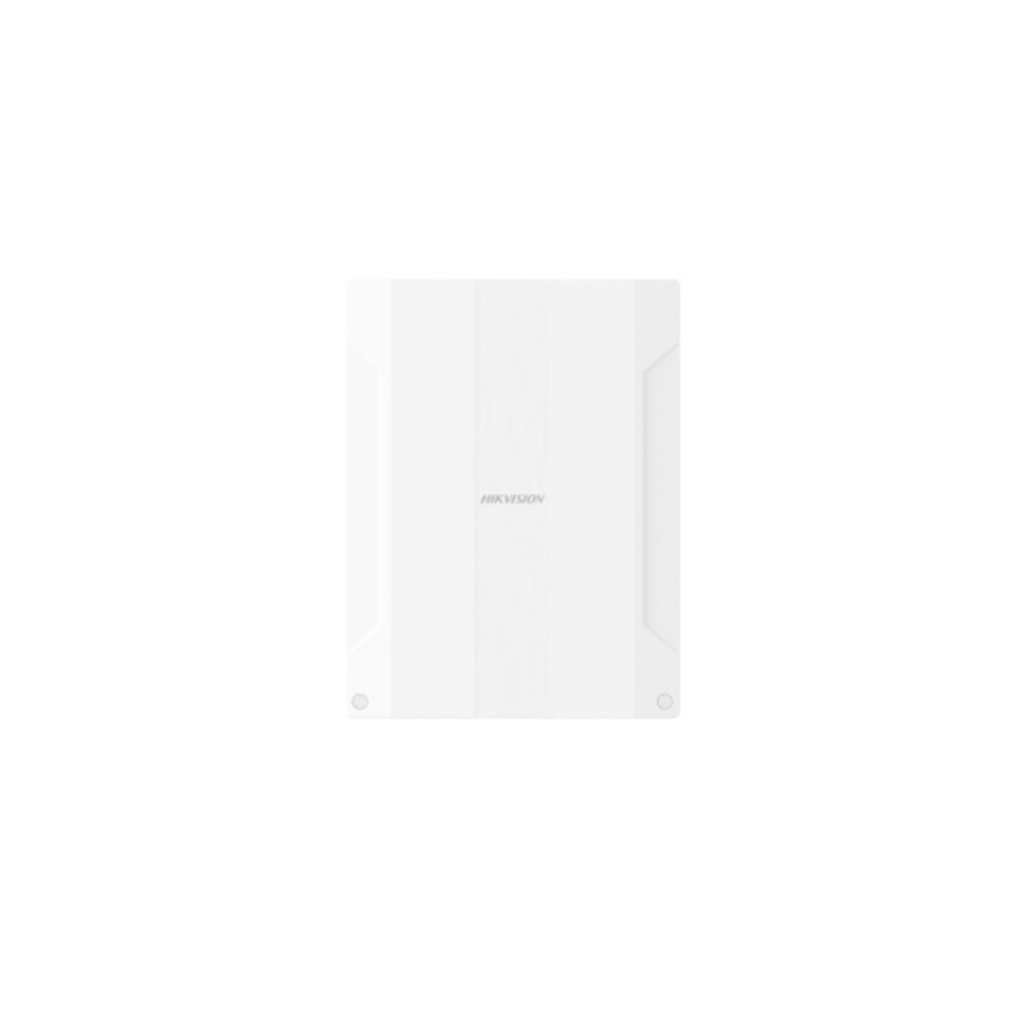

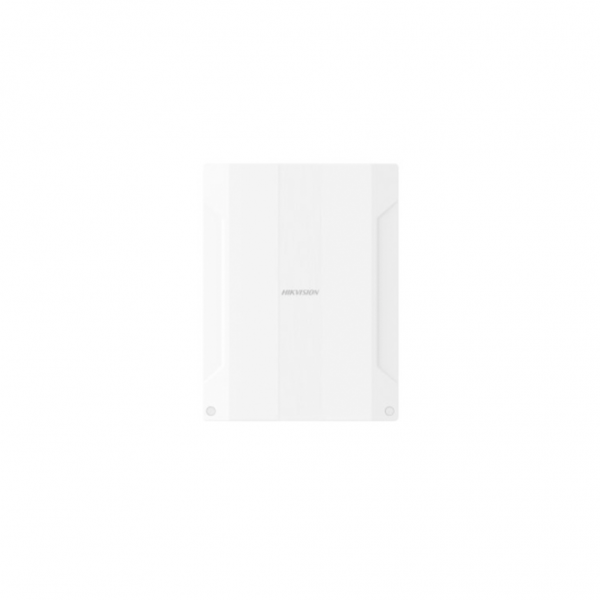

HIKVISION DS-PM1-I16O2-WB
Multi IO Transmitter
Features
- 433MHz two-way wireless communication
- LED display, show the real status of device
- With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
- With two 12v power outputs, can be used to power up external wired detectors
- Large space for back up storage battery
Specification
| Software features | |
| End of Line Resistance | 1k 2.2k 4.7k 8.2k NO/NC |
| Hardware features | |
| Serial port | 1 |
| Battery port | 1, 12 VDC input |
| Tamper-Proof | Front and rear |
| Power switch | 1 |
| Alarm input | 16 |
| Alarm output | 2 |
| Power Output | 2 (12 V, total1 A) |
| Electrical characteristics | |
| Battery type | Compatible with 12 V 7 Ah 150 × 64 × 94 mm |
| Power supply | 100 to 240 VAC，30 W |
| Operation humidity | 10% to 90% |
| Operation temperature | –10 to 40 °C |
| Power consumption | Battery Supply: Quiescent current (50 mA), Max current (1500 mA), Voltage (13.8 V) 220 V Supply: Quiescent current (45 mA), Max current (300 mA), Voltage (220 V) |
| Battery life span | Up to 36 hours |
| Wireless transmission | |
| RF frequency | 433 MHz |
| RF method | Two-way communication |
| RF modulation | 2GFSK |
| RF distance | 800m |
| Display | |
| Indicator | 3: Power(Green), Fault(Amber), Signal Strength(Green/Red) |
| General | |
| Installation method | Wall Mounting |
| Dimension(WxHxD) | 261*199*86.4 mm |
| Shell material | Plastic |
| Color | White |
| Weight | 975 g (without battery) |
