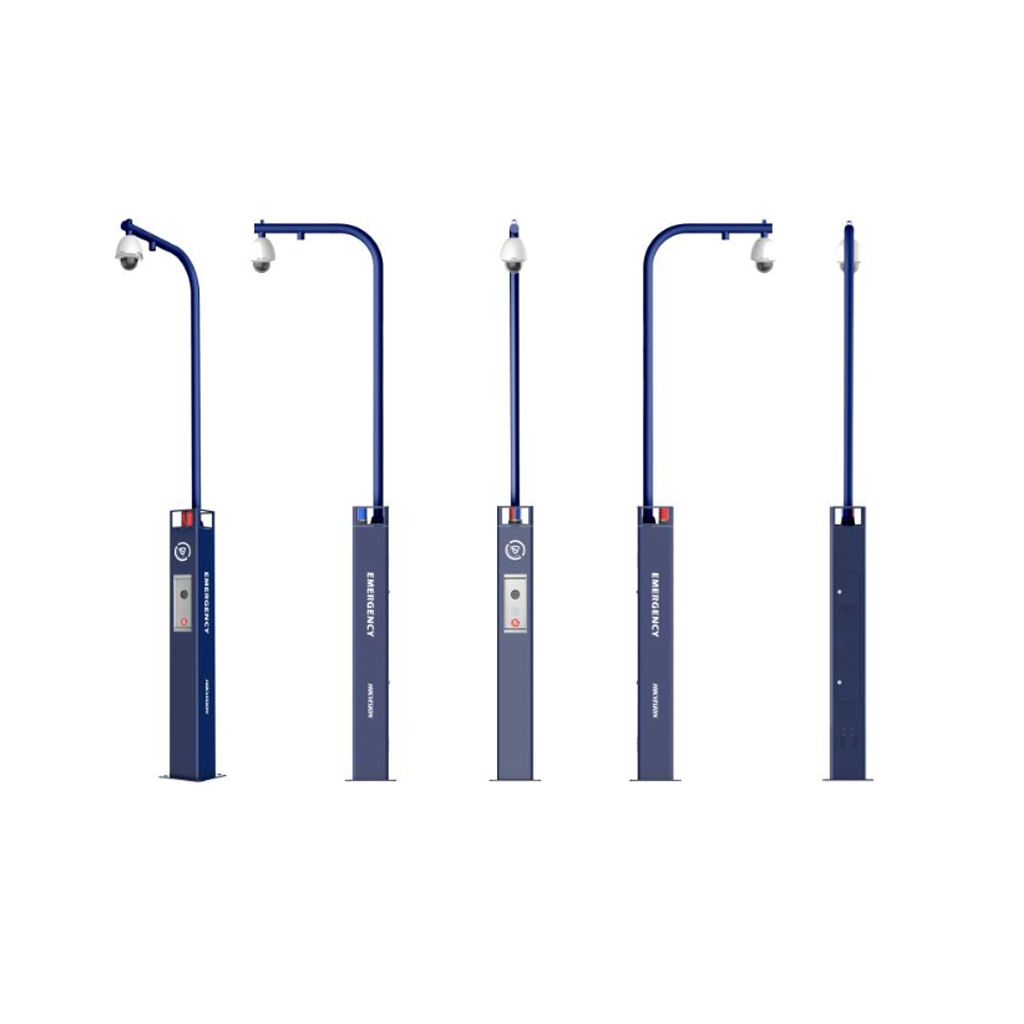

HIKVISION DS-PEA12-P/ZJ
Panic Alarm Station
Features
- One-touch emergency calling
- High quality imaging with 2 MP bulit-in camera
- Real-time security via sound and voice detection
- Supports broadcasting
- Supports dual net ports
- Built-in SD slot supports MicroSD / SDHC / SDXC up to 256 GB
- Supports siren and audio expansion
- Supports standard SIP
Specification
| Software features | |
| Wired network | 10 M/100 M Self-adaptive Ethernet port |
| Hardware features | |
| Electrical locker | Normal Cabinet Lock |
| Tamper-Proof | tamper alarm |
| Netowrk interface | 1RJ45,10 M/100 M/1000 M self adaptive |
| Audio interface | 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m 1-ch 3.5 mm Audio Interface for External Audio Input |
| Bus | RS-485 1, Half-duplex |
| SD card | Standard Micro SD card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 256G |
| Loudspeaker | 1-ch 30 W Build-in Loudspeaker Sound Can be Configured Separately |
| Video | |
| Resolusion | 1920*1080 |
| Frame rate | PAL: 25fps NTSC: 30fps |
| Field angle | Horizontal field of view:129° |
| Day/night switch mode | IR Cut Filter |
| Audio | |
| Audio input | 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m 1-ch 3.5 mm Audio Interface for External Audio Input |
| Audio output | 1-ch 30 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output |
| Intercom | 1-ch Built-in Omnidirectional Microphone, Pickup Distance: 5 m |
| Audio compression code rate | 64Kbps;16Kbps |
| Electrical characteristics | |
| Operation temperature | -40 °C to +70 °C (-40 °F to 158 °F) |
| Power supply | 110-240V AC |
| Operation humidity | 10% to 90% |
| Power consumption | ≤ 51 W |
| General | |
| Dimension(WxHxD) | Without Bracket: 280 mm × 280 mm × 2148 mm (11.02” × 11.02” × 84.57″) With Bracket: 280 mm × 280 mm × 4332 mm (17.72” × 19.69” × 170.56”) |
| Installation method | Ground Mounting |
| Device management | |
| Alarm input | 2 |
| Alarm output | 2 |
| Camera | 2 MP HD IR Camera |
| Sounder output | 1-ch 30 W Build-in Loudspeaker |
| Lamp | 1 Red and Blue Alarm Lamp, Light Can be Configured Separately |
| Report method | |
| Protocol | TCP/IP, RTSP, SIP |
