描述
HIKVISION DS-PEAP-CV2E(B) Video panic intercom panel 是海康威視緊急／求助對講，用於電梯廳、車場或周界。香港防盜為安裝商及經銷商。並非大堂訪客對講。規格以下方原廠資料為準。

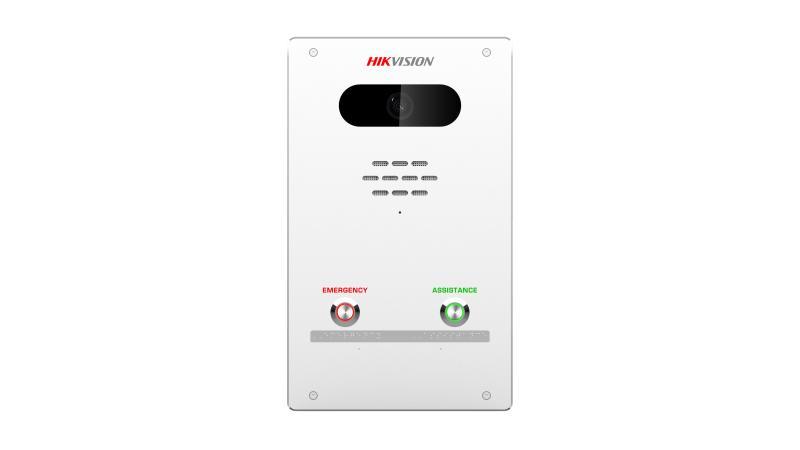

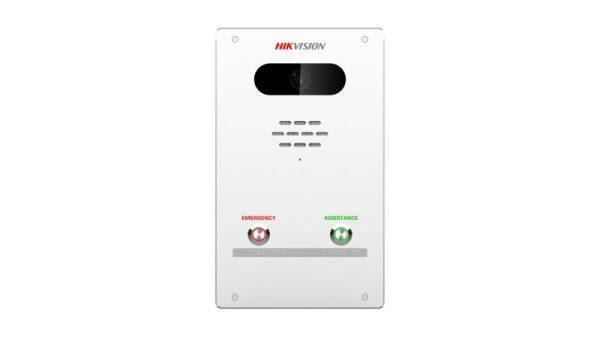

DS-PEAP-CV2E(B)
Video panic intercom panel
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Software features
- Tamper-ProofSupport
- ProtocolTCP/IP, RTSP, SIP, ONVIF
- Hardware features
- Alarm input2
- Alarm output2
- SD CardStandard Micro SD Card Slot, Supports Micro SD/SDHC/SDXC Card, Max. 256G
- Video
- Video compression standardH.264;H.265
- Resolusion2560*1440
- Frame rate25fps
- Field AngleHorizontal: 109° Vertical: 86° Diagonal: 142°
- Fill LightInfrared Light
- Day/night switch modeAuto switching
- Audio
- Audio input1-ch Built-in Omnidirectional Microphone Pickup Distance: 2 m listening Distance: 10 m 1-ch 3.5 mm Audio Interface for External Audio Input
- Audio output1-ch 3 W Build-in Loudspeaker 1-ch 3.5 mm Audio Interface for External Audio Output
- Audio encoding/decoding standardG.711U/PCM/ADPCM/AAC/OPUS
- Audio qualitySmart Noise Suppression
- Audio compression code rate16Kbps;64Kbps
- Electrical characteristics
- Power supply12 VDC or RJ45 PoE
- Power Consumption≤40W
- Wireless transmission
- Wired network10 M/100 M Self-adaptive Ethernet port
- Network encryptionSupports User Lock-in and Password Security Prompt
- General
- Operation temperature-40°C to 65°C
- Operation humidity10％ to 90％
- Shell materialMetal
- Dimension(WxHxD)229 mm × 138 mm × 44.5 mm
- IP RateIP65
- IK RateIK10
- Application scenarioOutdoor
- Installation methodEmbedded-mounted
- Device management
- CameraBuilt-in 4MP HD IR Camera IR Distance ≥ 10 m
