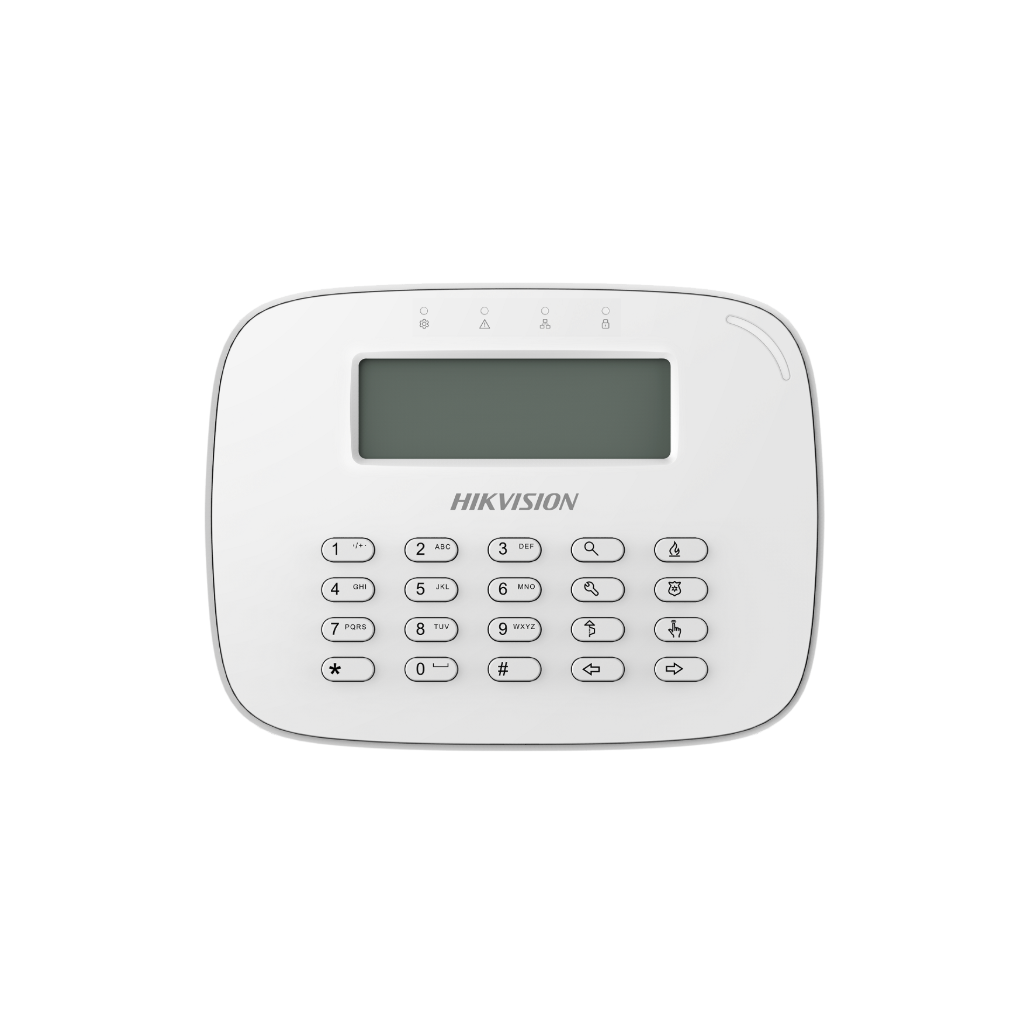

HIKVISION DS-PK-L
Wired Keypad
Features
- 80 × 25 mm LCD screen display
- Supports one-touch arm
- Supports displaying zone name on LCD screen
- Displays real-time system status on LED indicator and LCD screen
- Tamper proof
Specification
| Hardware features | |
| Tamper-Proof | Cover and wall |
| Function key | 8 Function Keys (Project, Query, Panic, Bypass, Fire, One-push to arm, Scroll up, Scroll down) |
| Electrical characteristics | |
| Power supply | DC 12V |
| Operation humidity | 10%～90% |
| Operation temperature | – 10 °C to + 55 °C (14 °F to 131 °F) |
| Power consumption | 1.8 W |
| Display | |
| Numeric key | 12 (0 1 2 3 4 5 6 7 8 9 * #) |
| Display screen | 80 × 25 mm LCD screen display |
| Indicator | Fault( Orange ●), Network( Green ●), Alarm( Red ●), Armed/Disarmed( Blue ●), Set( Red/Green ●/●) |
| General | |
| Dimension(WxHxD) | 164.13mm x 124.11mm x 30.96mm |
| Weight | 272g |
