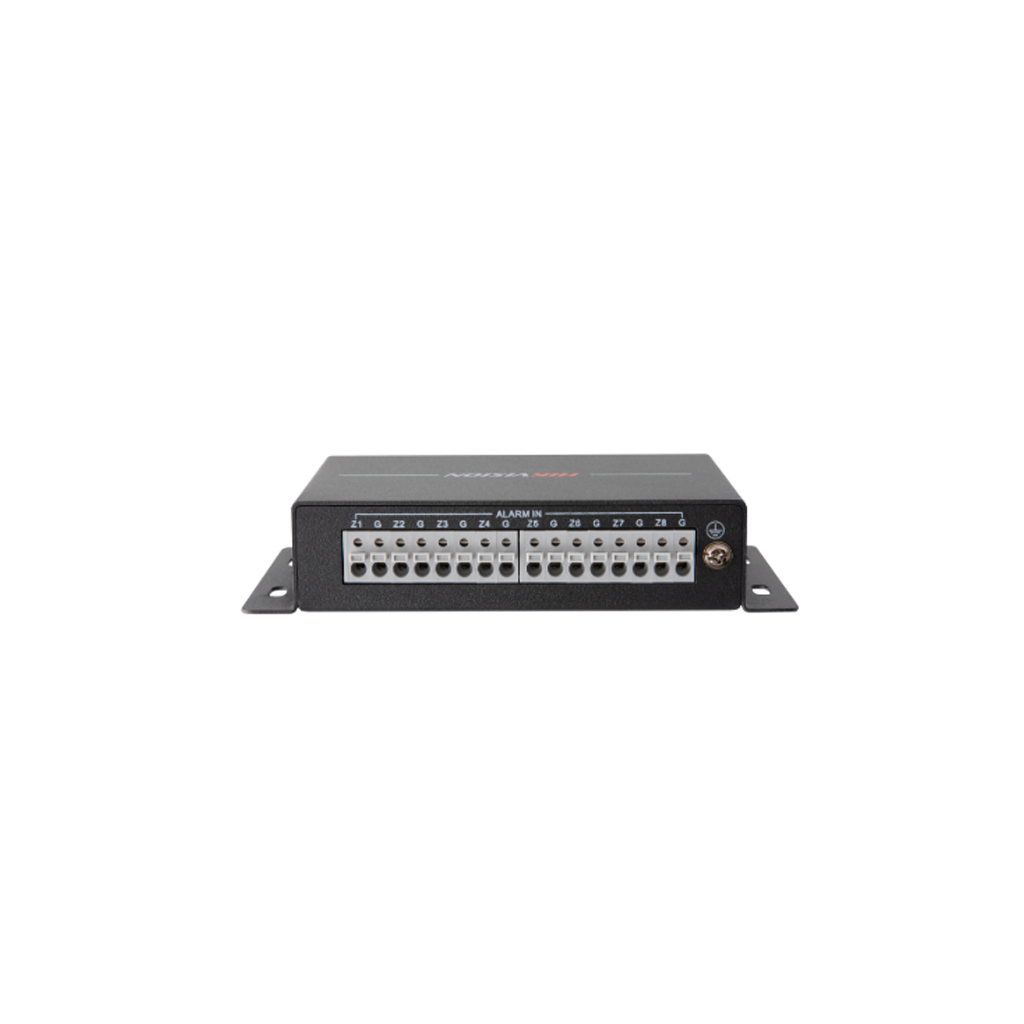

HIKVISION DS-PM-RSI8
RS485 Input Expander
Features
- RS485, 8-input module (For DS-19Axx-BN/DS-19Axx-BNG/PHA hybrid control panel series)
Specification
| Hardware features | |
| Alarm input | 8ch, configurable value and sensitivity of resistance, supports tampering alarm |
| Indicator | 3 Red/Green LED: communication, status, running |
| Electrical characteristics | |
| Power supply | 12V |
| Power Consumption | ≤2W |
| General | |
| Operation temperature | -10℃ ~ +55℃ |
| Operation humidity | 10%～90% |
| Dimension(WxHxD) | 132.5mm x 74mm x 28mm |
| Weight | <1kg |
