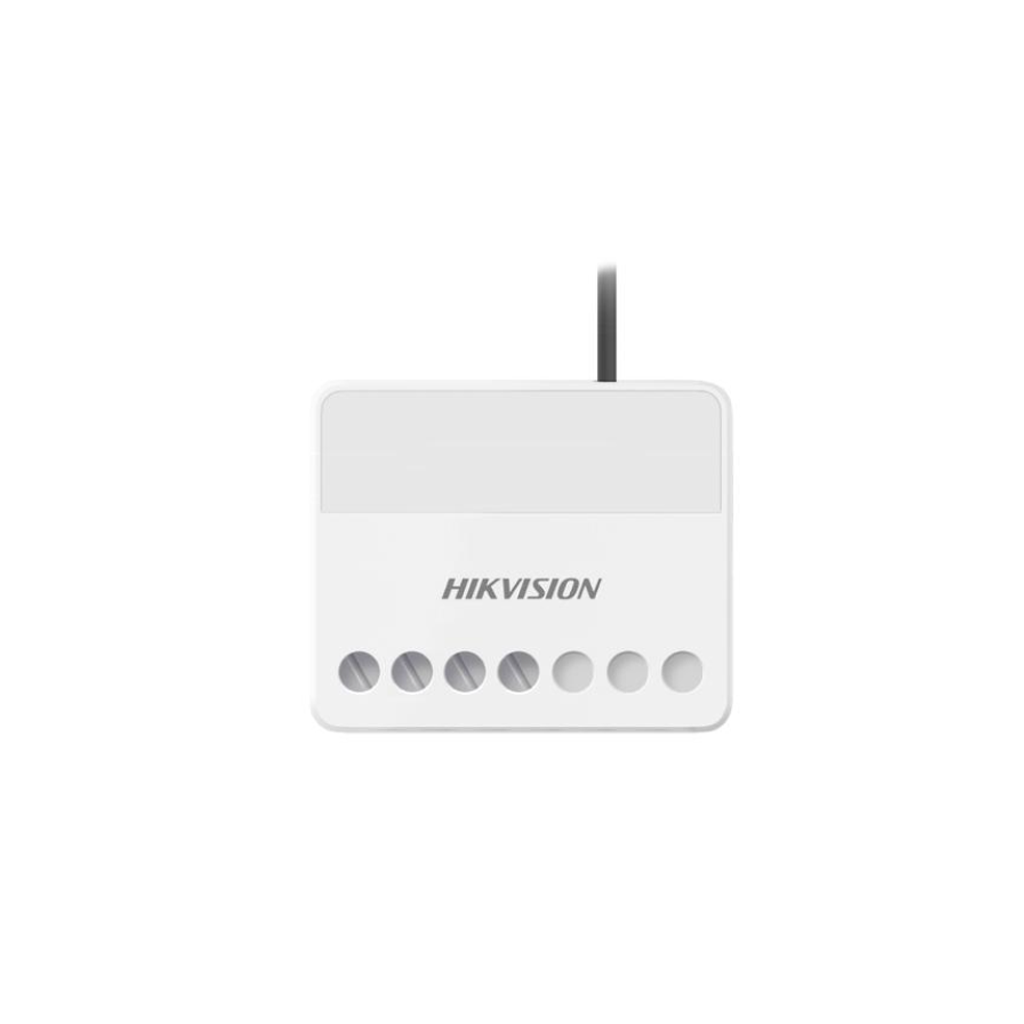

HIKVISION DS-PM1-O1H-WB
Wall Switch
Features
- 433MHz two-way wireless communication
- AES-128 encryption
- LED display, show status of device and replay on/off display
- Small case design, which can be put into hiding places easily
- Automation operating, one button turn on/off from APP/Keyfob/Keypad
- Setting scenarios by different events
Specification
| Software features | |
| Scenario setting | By Alarm, By Operation, By Fault, By Schedule, By Manual |
| Learning button | 1, For register |
| Hardware features | |
| Serial port | 1, for debug |
| Electrical characteristics | |
| Power supply | AC 100 V to 240 V, 50/60 HZ |
| Operation humidity | 10％ to 90％ |
| Operation temperature | -10 °C to 55 °C |
| Wireless transmission | |
| RF frequency | 433 MHz |
| RF method | Two way communication |
| RF modulation | 2GFSK |
| RF distance | 800 m |
| Wireless security | AES-128 |
| Display | |
| LEDs status | 3, Register/Signal (Green/Red), Power (Green), Relay Status (Blue) |
| General | |
| Installation method | Wall Mounting or Inside 86 box |
| Dimension(W x H x D) | 38 x 25 x 18 mm |
| Shell material | Plastic |
| Color | White |
| Weight | 31.5 g |
| Device management | |
| Relay output | 1, NO/NC (AC 100 to 240 V, Max 13A） |
