描述

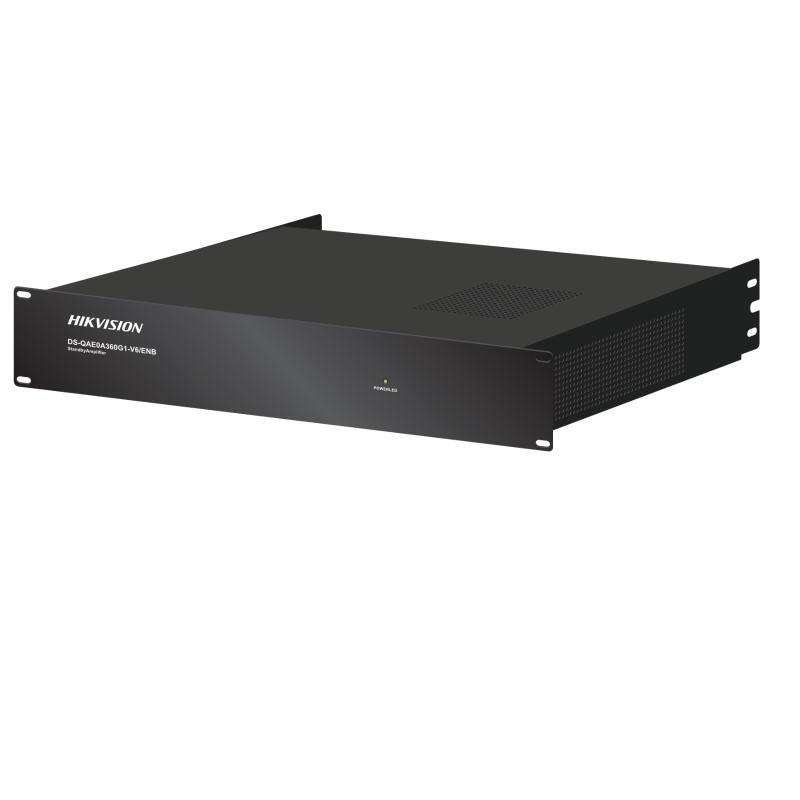

DS-QAE0A360G1-V6/ENB
360W EVAC Backup Amplifier
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Audio
- Frequency Response50 Hz-16 KHz, ±3 dB
- THD and SNRTHD: ≤0.7% (1KHz) SNR: ≥85 dB
- Audio Output2PIN terminal blocks used to connect with devices such as DS-QAE0A360G1-V6/EN / DS-QAE0A360G1-V6/ENEX
- Input1 RJ45 port used to devices such as DS-QAE0A360G1-V6/ENEX/DS-QAE0A360G1-V6/ENEX,CAT5E-STP cable recommended.
- General
- PowerAC 220-240V~, 50/60Hz, 360 W
- Dimension440x402x130 mm
- 17 kg
- Packing ListStandby Amplifier x1; Power Line x1; Terminal 2pin x1;
- Operating Temperature-5°C~45 °C
- Power Consumption750 W Max
- DC Power 24V2 groups of 24V terminal blocks which used for external backup power supply.
