DS-QAE0A450G1-V/ENB

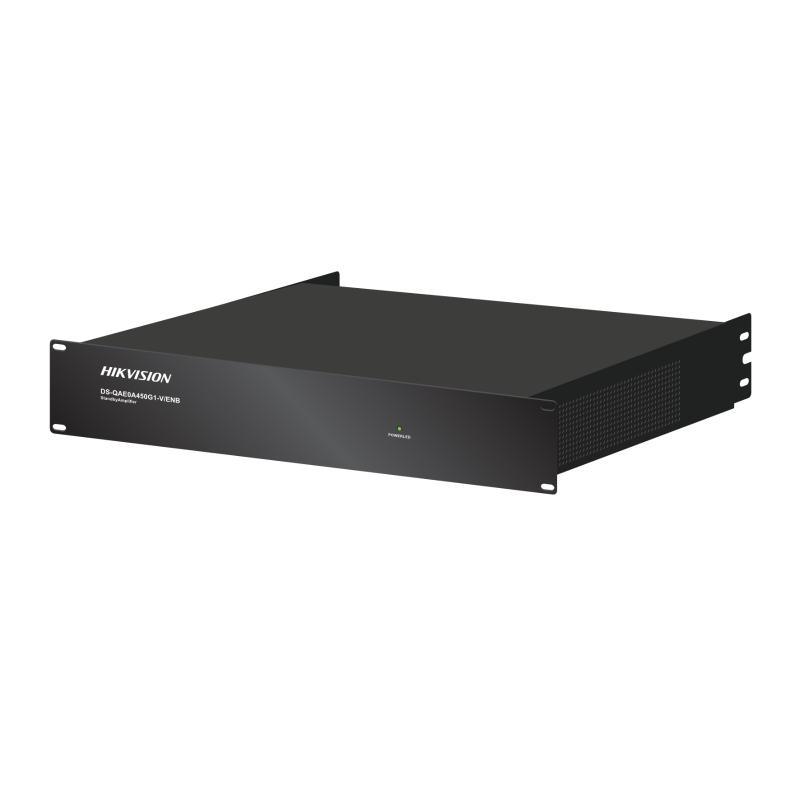

450W EVAC Backup Amplifier
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Audio
- Frequency Response100 Hz-15 KHz, ±3 dB
- THD and SNRTHD: ≤2% (1KHz) SNR: ≥65 dB
- Input6 ways of RJ45 ports used to connect with devices (DSQAE0A150G1-V/EN / DS-QAE0A300G1-V/EN / DS-QAE0A450G1-V/EN) to input audio signal or output status message.
- Output6 ways of 2PIN screw terminal used to connect with devices (DSQAE0A150G1-V/EN / DS-QAE0A300G1-V/EN / DS-QAE0A450G1-V/EN) to output amplifier’s signals.
- General
- Power220-240VAC, 50/60Hz, 450 W
- Dimension483x469x89 mm
- 10.7 kg
- Packing ListStandby Amplifier x1; Power Line x1;
- Operating Temperature-5°C~45 °C
- Power Consumption600 W Max
