DS-QAE0MP0G2/EN

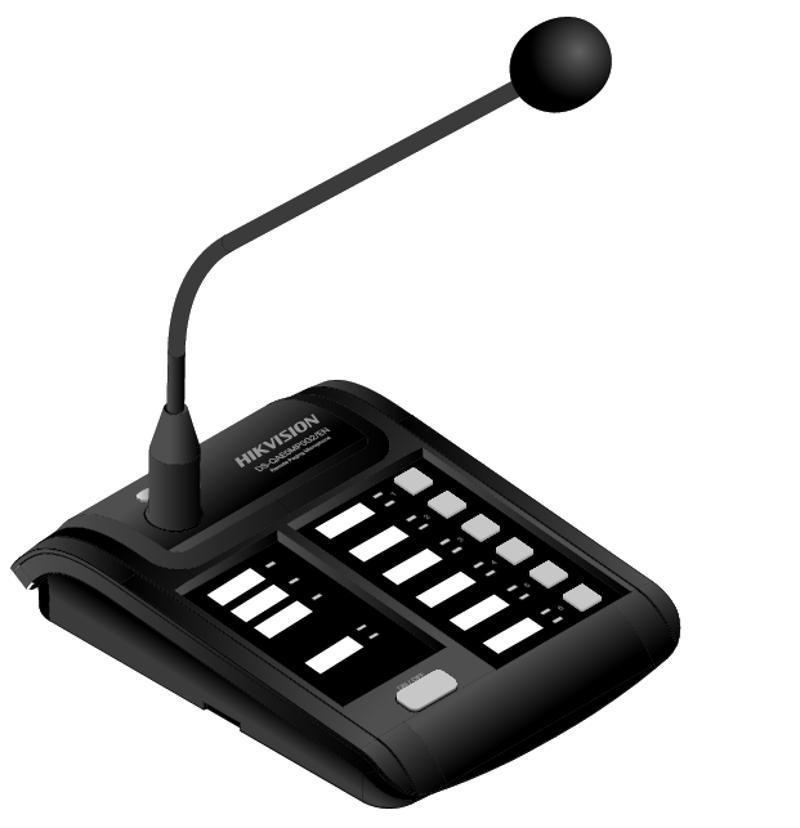

Remote Paging Microphone
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Audio
- Frequency Response200 Hz-15 KHz
- THD and SNRTHD: ＜1% (1KHz) SNR: ≥55 dB
- Related Current120mA（Remote emergency MIC),250mA(Connected to 3 zone expansion).
- Max. DistanceRecommend to use CAT-5E FTP , The MAX distance can reach 100 meters.
- Max. Extension Quantity3 PCS
- LINKA RJ45 port used to connect with device”DSQAE0MP0G1/EN / DS-QAE0MP0G2/EN” to interact with cascaded devices based on 24V related voltage.(communication range=100 meters)
- RD INA RJ45 port used to connect with device “DS-QAE0A360G1-V6/EN” to communicate with the host based on 24 related voltage. (communication range=100 meters)
- USBA type-B port used to connect with PC to place voice files (only support MP3 format) .
- Bottom Connection CableA 10PIN flat cable used to connect with zone expander “DS-QAE0MP0G1/ENEX” in order to select or control more zones
- Interface
- Volume KnobMIC volume control, Voice volume control
- General
- Power15 to 40 VDC, Powered by fire broadcasting host or outer power supply.
- Dimension243x170x75 mm
- 0.72 kg
- Packing ListRemote Paging Microphone x1; Microphone x1; Power Adapter x1;
- Operating Temperature-5°C~45 °C
