DS-QASIGNAL/EN

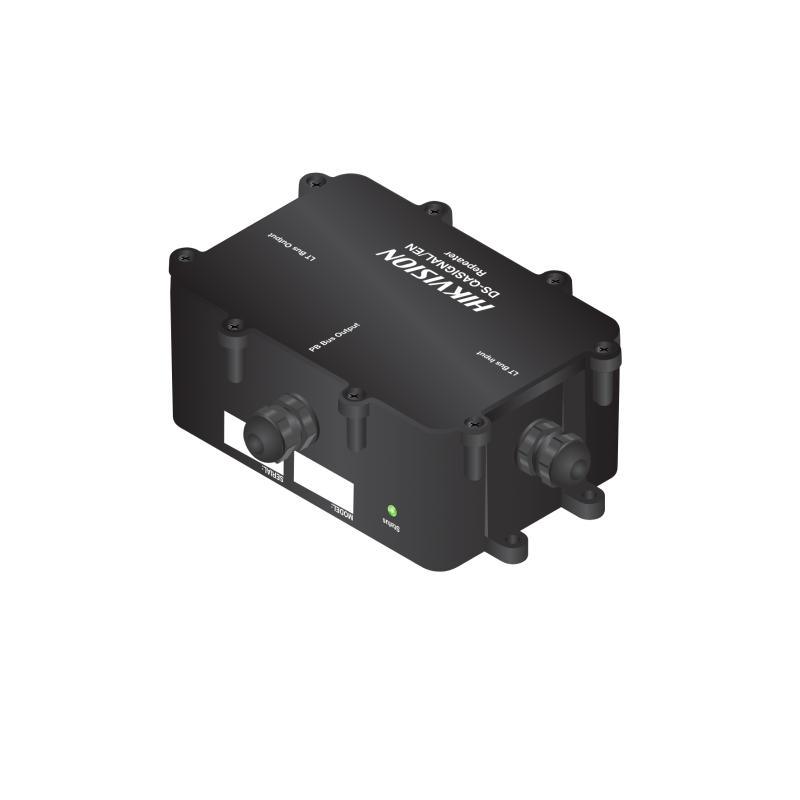

Signal Collector
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Audio
- Max. Transmission DistanceRS485: 1000 meters. PowerBus: 1000 meters
- ProtocolRS485,PowerBus.
- BUS INPUT4 PIN screw terminal used to connect with deivce “DS-QAE0A360G1-V6/EN” to communicate with the host (24V related voltage) within communication range 1000 meters.
- BUS OUTPUT4 PIN screw terminal used to connect with deivce “DS-QASIGNAL/EN” to communicate with the cascaded device (24V related voltage) within communication range 1000 meters.
- PB BUS OUTPUT2PIN screw terminal used to connect with device”DS-QAEOLS/EN” to communicate with subdevice(24V related voltage) within communication range 1000 meters.
- General
- Power24V DC, DS-QAE0A360G1-V6/EN Powered by the host
- Dimension139x89x46 mm
- 0.25 kg
- Packing ListRepeater x1;
- Operating Temperature-5°C~45 °C
- Power Consumption<2.4W
