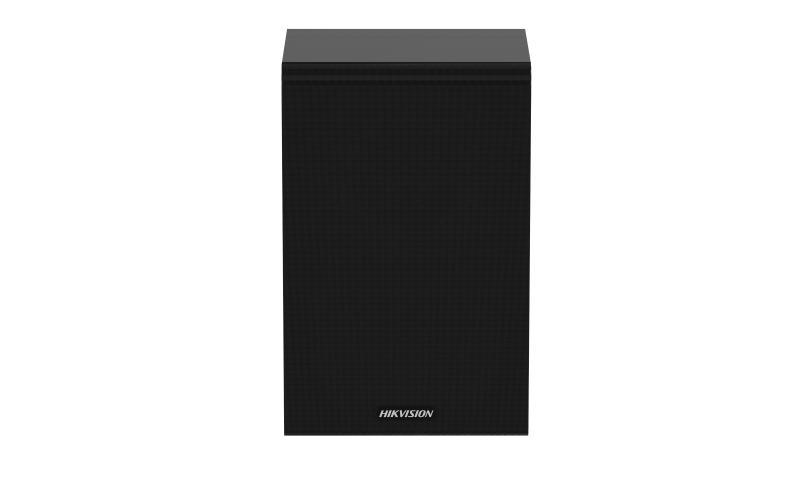

DS-QAZ1110G1-B
Network Cabinet Speaker 10W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Microphone
- TypeMEMS
- Amount2
- Frequency Response100 Hz to 20 kHz
- Sensitivity-42 dBV/Pa
- Sampling Rate48 kHz
- Quantization Bits16 bit
- Speaker
- Rated Power10 W
- Impedance8 Ω
- Max. Acoustic Pressure98 dBSPL
- Sensitivity(1 m, 1 W)90 dB
- DirectionAll directions
- Frequency Response100 Hz to 20 kHz
- SNR83 dB
- Speaker UnitFull frequency 5.25′′ × 1
- Coverage AngleHorizontal: 105° Vertical: 103°
- Function
- Audio AlgorithmAEC、AGC、ANS、DRC
- Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits
- Audio File FormatMP3, WAV
- NTP TimingSupport
- BroadcastRegular broadcast, live broadcast, emergency broadcast
- Two-Way AudioSupport
- Speech SynthesisLanguage Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
- Network
- Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
- Interface Protocol (API) ISAPI, ISUP, SIP, RTP,ONVIF
- ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
- Communication
- Communication MethodSupport wired network and bluetoothcommunication
- Audio
- Number of Sub Speaker24 V, 2.5 A, max. 60W: support 1* 10W sub speakers
- Sub Speaker Connection MethodImpedance Input
- Interface
- Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
- Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
- API ISAPI, ISUP, SIP,ONVIF
- Audio In3.5 mm audio interface × 1 Voltage Input × 1，COM 100 V
- Audio OutFixed resistance output × 1，phoenix terminal，8 Ω
- LED IndicatorGreen light on: normal Green light flash: intercom in progress Red light on: start or network disconnection Red light flash: upgrading
- ResetSupport
- Volume KnobSupport
- General
- Power24 VDC/1.5 A
- MaterialWooden
- Operating Temperature-10 °C to 50 °C(14 °F to 122 °F)
- Operating Humidity＜90% (No condensation)
- Dimension180.6 mm × 156 mm × 280 mm(7.11″ × 6.14″ × 11.02″)
- Package Dimension355 mm × 265 mm × 240 mm(13.98″ × 10.43″ × 9.45″)
- Approx. 2.5 kg (5.51 lb.)
- ColorBlack
- With Package WeightApprox. 3.72 kg (8.2 lb.)
- Packing ListDevice × 1 Adapter × 1 Screw pack × 1 Installation sticker × 1 Regulatory Compliance and Safety Information × 1
- Language41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
- BluetoothBluetooth 5.0, 10 m
- Approval
- RFCE-RED: EN 301489-1 V2.2.3 (BT or 2.4G), EN 301489-17 V3.2.4 (BT or 2.4G), EN 300 328 V2.2.2 (BT or 2.4G), EN62311 2020(BT or 2.4G) RCM: EN 300 328 V2.2.2 (BT or 2.4G), AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note IC ID: RSS-247(BT or 2.4G) ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018
- EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
- SafetyCB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
- EnvironmentCE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
