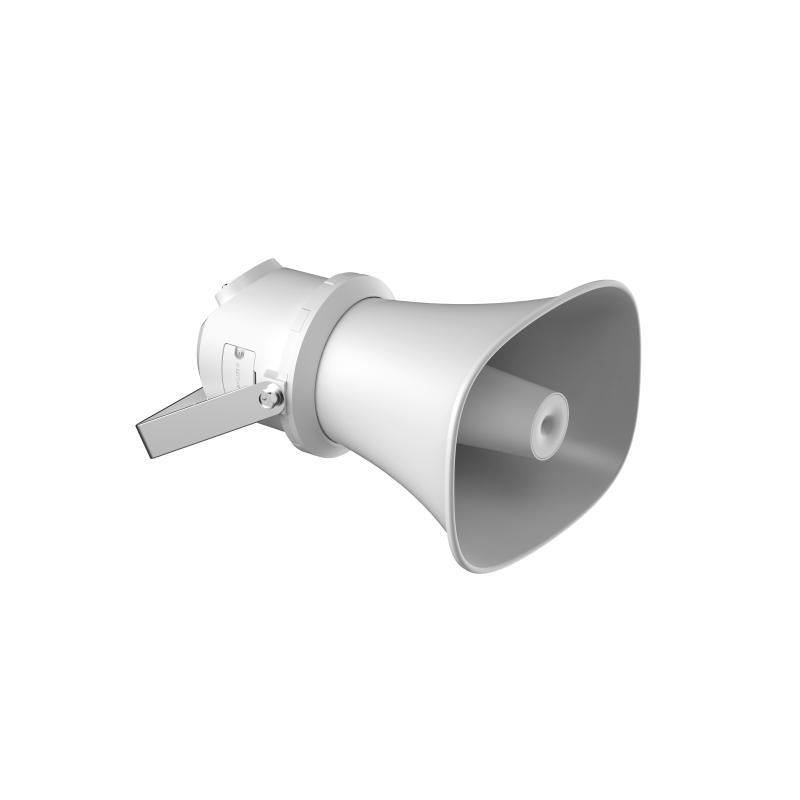

DS-QAZ1310G1T-EY(C)
Network Horn Speaker Anti-corrosion Dual POE 10W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Microphone
- TypeElectret
- Amount2
- Frequency Response100 Hz to 20 kHz
- Sensitivity-42 dBV/Pa
- Sampling Rate48 kHz
- Quantization Bits16-bit
- Speaker
- Rated Power10 W
- Impedance8 Ω
- Max. Acoustic Pressure121 dBSPL
- Sensitivity(1 m, 1 W)110 dB
- Direction70° horizontal by 100° vertical
- Frequency Response300 Hz to 13 kHz
- SNR85 dB
- Function
- Audio AlgorithmAEC,AGC,ANS,DRC
- Audio Bit RateG.711ulaw (64 Kbps)/G.711alaw (64 Kbps)/MP3 (128 Kbps)
- Audio File FormatWAV, MP3
- NTP TimingSupport
- BroadcastRegular broadcast, live broadcast, emergency broadcast
- Two-Way AudioSupport
- Speech SynthesisLanguage Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
- Network
- Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP,SSH
- Interface Protocol (API)ISAPI, ISUP, SIP, RTP,ONVIF
- ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
- Communication
- Communication MethodSupport wired network communication
- Interface
- AlarmAlarm input ×1
- Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 2
- AudioLine in × 1
- Power Output12 VDC, 25 mA, 0.3 W, PoE: max. 5 W
- Local StorageBuilt-in 64 GB EMMC (Audio file storage is 55 GB.)
- APIISAPI, ISUP, SIP,ONVIF
- ResetSupport
- General
- MaterialMetal
- Operating Temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Operating Humidity＜90% (No condensation)
- Dimension182.4 mm × 273.87 mm × 239.38 mm (7.18″ × 10.78″ × 9.42″)
- Power12 VDC, 1500 mA, 18 W, PoE: IEEE 802.3at, Class 4
- Package Dimension310 mm × 245 mm × 350 mm (12.2″ × 9.6″ × 13.8″)
- Approx. 2.1 kg (4.63 lb.)
- ColorWhite
- With Package WeightApprox. 3.0 kg (6.61 lb.)
- Packing ListDevice × 1 Threading cap × 1 Regulatory Compliance and Safety Information × 1
- Language41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
- Approval
- ProtectionIP67, IK10
- EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
- SafetyCB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
- EnvironmentCE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
