描述
DS-QAZ1325G1T(C)

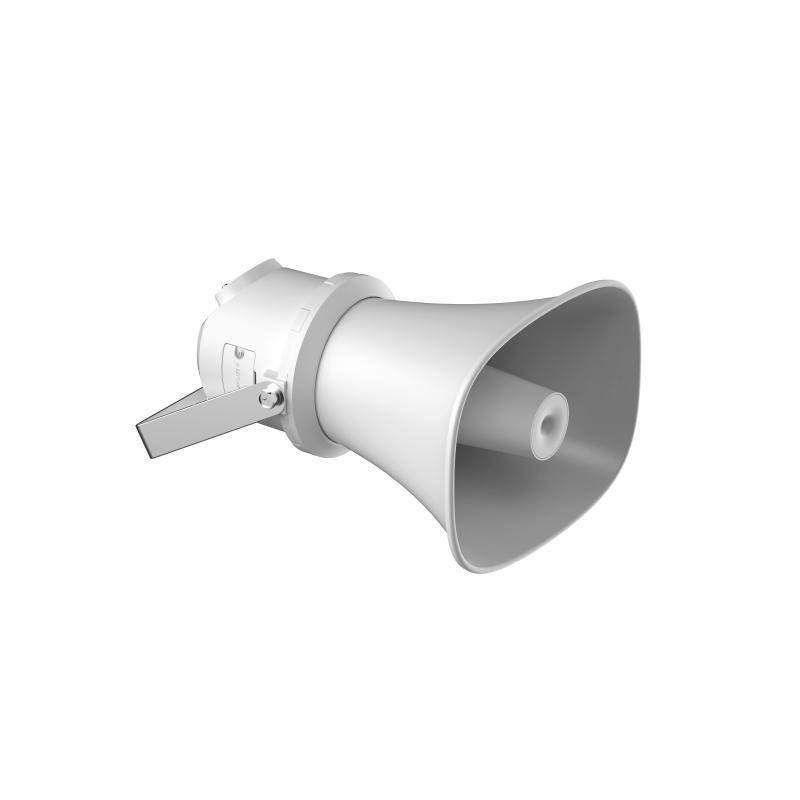

Network Horn Speaker 25W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Microphone
- Typeelectret
- Amount2
- Frequency Response100 Hz to 20 kHz
- Sensitivity-42 dBV/Pa
- Sampling Rate48 kHz
- Quantization Bits16 bit
- Speaker
- Rated Power25 W
- Impedance8 Ω
- Max. Acoustic Pressure124 dBSPL
- Sensitivity(1 m, 1 W)110 dB
- Direction70° horizontal by 100° vertical
- Frequency Response300 Hz to 8 kHz
- SNR83 dB
- Function
- Audio AlgorithmAEC、AGC、ANS、DRC
- Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
- Audio File FormatMP3, WAV
- NTP TimingSupport
- BroadcastRegular broadcast, live broadcast, emergency broadcast
- Two-Way AudioSupport
- Speech SynthesisLanguage Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
- Network
- Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
- Interface Protocol (API)ISAPI, ISUP, SIP, RTP,ONVIF
- ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
- Communication
- Communication MethodSupport wired network communication
- Interface
- AlarmAlarm input ×1
- Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
- AudioLine in × 1
- Power Output12 VDC, 25 mA(max.)
- Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
- APIISAPI, ISUP, SIP,ONVIF
- ResetSupport
- General
- MaterialMetal
- Operating Temperature-40 °C to 60 °C(-40 °F to 140 °F)
- Operating Humidity＜90% (No condensation)
- Dimension182.4 mm × 273.87 mm × 239.38 mm (7.18″ × 10.78″ × 9.42″)
- Power24 VDC , 1167mA , 28W
- Package Dimension310 mm × 245 mm × 400 mm(12.2″ × 9.6″ × 15.6″)
- Approx. 2.1 kg (4.63 lb.)
- ColorWhite
- With Package WeightApprox. 3.4 kg (7.50 lb.)
- Packing ListDevice × 1 Threading cap × 1 Regulatory Compliance and Safety Information × 1 Power adapter × 1 AC power cord× 1
- Language41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
- Approval
- ProtectionIP67, IK10
- EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
- SafetyCB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
- EnvironmentCE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
