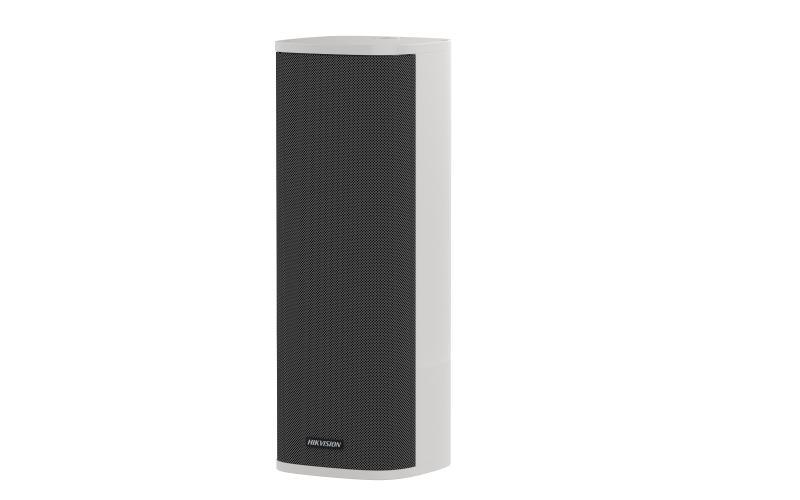

DS-QAZ1460G1
Network Column Speaker 60W
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Microphone
- Typeelectret
- Amount2
- Frequency Response100 Hz to 20 kHz
- Sensitivity-42 dBV/Pa
- Sampling Rate48 kHz
- Quantization Bits16 bit
- Speaker
- Rated Power60 W
- Impedance4 Ω
- Max. Acoustic Pressure106 dBSPL
- Sensitivity(1 m, 1 W)90 dB
- DirectionAll directions
- Frequency Response100 Hz to 20 kHz
- SNR85 dB
- Speaker UnitLow frequency 5.25′′ × 2，high frequency 1′′ × 1
- Coverage AngleHorizontal: 190° Vertical: 120°
- Function
- Audio AlgorithmAEC、AGC、ANS、DRC
- Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps) Sampling bit width: 16 bits
- Audio File FormatMP3, WAV
- NTP TimingSupport
- BroadcastRegular broadcast, live broadcast, emergency broadcast
- Two-Way AudioSupport
- Speech SynthesisLanguage Type: English, Russian, Spanish, Japanese, Thai, Portuguese (Brazil), Korean, French
- Network
- Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
- Interface Protocol (API) ISAPI, ISUP, SIP, RTP,ONVIF
- ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
- Communication
- Communication MethodSupport wired network communication
- Interface
- Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
- Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
- API ISAPI, ISUP, SIP,ONVIF
- AlarmAlarm input × 2
- Audio InLine in × 1, phoenix terminal
- LED IndicatorGreen light on: normal Green light flash: intercom in progress Red light on: start or network disconnection Red light flash: upgrading
- ResetSupport
- General
- Power100 VAC to 240 VAC
- MaterialMetal
- Operating Temperature-40 °C to 60 °C(-40 °F to 140 °F)
- Operating Humidity＜90% (No condensation)
- Dimension160 mm × 160 mm × 446.8 mm(6.3″ × 6.3″ × 17.59″)
- Package Dimension715 mm × 265 mm × 250 mm(28.1″ × 10.4″ × 9.8″)
- Approx. 5.4 kg(11.90 lb.)
- ColorWhite
- With Package WeightApprox. 7.1 kg(15.65 lb.)
- Packing ListDevice × 1 Screw pack × 1 Support × 1 L-shaped wrench × 1 Regulatory Compliance and Safety Information × 1
- Language41 languages: English, French, Spanish, German, Italian, Japanese, Thai, Russian, Portuguese (Brazil), Arabic, Bulgarian, Czech, Danish, Greek, Spanish (Mexico), Estonian, Persian, Finnish, Hebrew, Croatian, Hungarian, Indonesian, Kazakh, Korean, Kirgiz, Lao, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Slovenian, Serbian, Swedish, Turkish, Ukrainian, Uzbek, Vietnamese
- Approval
- ProtectionIP66: IEC 60529-2013
- EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
- SafetyCB: IEC 62368-1:2014 CE-LVD: EN 62368-1:2014/A11:2017
- EnvironmentCE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
