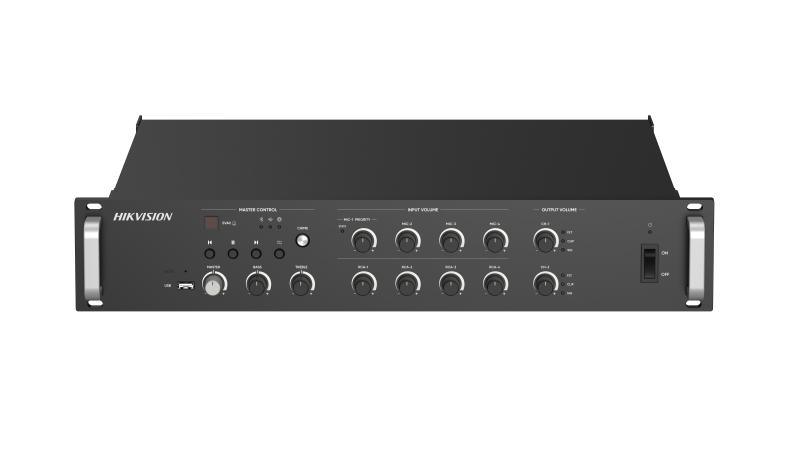

DS-QAZ1A500G1-VB2(B)
500W 2-Zone Network Amplifier
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Protocol
- Network ProtocolIPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, NTP, RTP
- Interface ProtocolISAPI, ISUP, SIP
- Function
- Audio Bit RateG.711ulaw（64 Kbps）/G.711alaw（64 Kbps）/MP3（128 Kbps）/AAC（128 Kbps）
- Protection Functionshort circuit protection, overcurrent protection, over temperature protection, anti-static electricity protection, surge protection, electrical shock protection
- Network
- Network ProtocolIPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
- Interface Protocol (API)ISAPI, ISUP, RTP
- Audio
- Rated Power500 W
- Frequency Response100 V COM/70 V COM/8 Ω V COM/4 Ω COM：50~20000 Hz（±3 dB） RCA Out/3.5 mm out：50~20000 Hz（±1 dB）
- THD and SNRTHD: ＜0.5%@1 kHz，1/3 rated power SNR: >90 dB
- Interface
- Alarm1 EVAC alarm input 1 alarm input 1 alarm output, when the output device connected to the alarm output is normally closed, connect: 1A GND; when the output device connected to the alarm output is normally open, connect: 1B GND.
- Ethernet Interface1 RJ45 10 M/100 M/1000 M adaptive Ethernet port
- Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
- Audio InMIC 1~4: -28 dBV, 4.7 kΩ, unbalance, 6.35 mm jack RCA in 1~4: 0 dBV, 4.7 kΩ, unbalance, RCA pin jack USB 2.0 × 1 Bluetooth Note: The 6.35 mm jack cannot be wired without connecting a microphone.
- Audio OutConstant voltage output × 2: 100 V COM & 70 V COM. When both channels operate simultaneously, each channel supports a maximum output power of 250 W; or channel 1 outputs 500 W independently while channel 2 remains inactive. Alternatively, constant impedance output × 2: 4 Ω COM & 8 Ω COM, with a maximum output of 250 W per channel. RCA out 1-2: 0 dBV, unbalance, RCA pin jack 3.5 mm out 1-2: 0 dBV, unbalance, 3.5 mm jack Note: Ensure that both the channel mode in the WEB interface and switch on the rear panel are set to the corresponding mode (100V/70V or 8Ω/4Ω).
- LED IndicatorPower Indicator (solid white): the device is normal working. USB flash drive indicator (solid white): the device is in USB flash drive mode. Bluetooth Indicator (solid blue): the device is in Bluetooth mode EVAC Alarm Indicator (solid red): the EVAC alarm has been triggered. MIC1 Indicator (solid white): the MIC1 audio input is connected normally. Module Indicator: FLT solid indicates overload or other system faults; CLIP solid indicates clipping or other exceptions; SIG solid indicates normal working.
- Volume KnobTotal Volume Knob × 1， MIC Input Volume Knob × 4， RCA Input Volume Knob × 4， Output Channel Volume Knob × 2， Treble Volume Knob × 1， Bass Volume Knob × 1
- USBUSB 2.0. File format: FAT32 and EXFAT, maximum capacity: 256 GB. FAT32 formatted USB drive: maximum capacity of a single partition is 32 GB EXFAT formatted USB drive: Maximum capacity of a single partition is 256 GB
- General
- Power100 to 240 VAC
- MaterialFront panel: PC+ABS, top and bottom covers: SGCC
- Dimension495.97 mm × 90.89 mm × 473.18 mm (19.53″ × 3.58″ × 18.63″)
- Package Dimension595 mm × 553 mm × 175 mm (23.43″ × 21.77″ × 6.89″)
- ≈ 5.6 kg (12.35 lb.)
- With Package Weight≈ 7.6 kg (16.76 lb.)
- ColorBlack
- Packing ListDevice × 1 Power Cord × 1 Regulatory Compliance and Safety Information × 1
- BluetoothBluetooth 5.0，10 m
- Operating Temperature-10 °C to 50 °C (-14 °F to 122 °F )
- Operating Humidity＜90% (No condensation)
- Power ConsumptionStandby Consumption: 45 W Annual Average Consumption: Max. Working Consumption: 110 W (based on the average playing time)
- EnvironmentThis device can only be safely used in the region below 2,000 meters above the sea level
