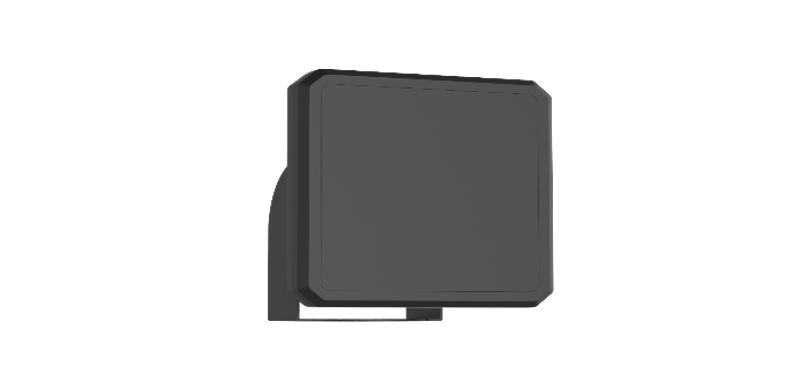

DS-TDSB00-EMM
Multi-Target Speed-Measuring Radar
DS-TDSB00-EMM 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Radar
| Working Frequency | 60 to 61 GHz |
|---|---|
| Modulation Waveform | FMCW |
| Sweep Bandwidth | 200M Hz |
| Horizontal Detection Angle | ±60° |
| Vertical Detection Angle | ± 12.6° |
| Max. Detectable Targets | Up to 128 |
| Coverage Lanes | Up to 8 lane(s) |
| Detection Distance | 150 m |
| Distance Resolution | 0.75 m |
| Distance Measurement Accuracy | ± 1 m |
| Angle Resolution | 3.8° |
| Speed Measuring Range | 10 km/h to 320 km/h |
| Speed Resolution | 0.23m/s |
| Speed Measuring Accuracy | ±2 km/h |
| Trigger Mode | Approaching direction,Leaving direction,Bidrection |
| Capture Rate | 98% |
Interface
| Network Interface | 1 RJ 45 10 M/100 M self-adaptive Ethernet port |
|---|---|
| RS-485 | 1 RS-485 |
General
| Power | DC 9 V to 24 V, 1 A, max. 5 W, two-core terminal block |
|---|---|
| Material | Cover: PC, main body: ADC12 |
| Dimensions | 173 mm × 175.6 mm × 202.5 mm (6.81" × 6.91" × 7.97") (L × W × H) |
| Package Dimensions | 270 mm × 250 mm × 223 mm (10.62" × 9.84" × 8.78") (L × W × H) |
| Weight | Approx. 1.64 kg (3.61 lb.) |
| With Package Weight | Approx. 2.16 kg (4.76 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
| Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing) |
| Installation Height | 4 to 6 m (Recommend height: 6 m) |
Approval
| EMC | EN 301 489-1 V2.2.3:2019,EN 301 489-3 V2.1.1:2019 |
|---|---|
| Safety | CB:IEC 61010-1:2010,IEC 61010-1:2010/AMD1:2016 CE-LVD: EN 61010-1:2010+A1:2019 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| RF | CE-RED:EN 301 489-1 V2.2.3,EN 301 489-3 V2.1.1，RN 301 489-17 V3.2.4，EN 301 489-52 V1.2.1，EN 300 440 |
