描述

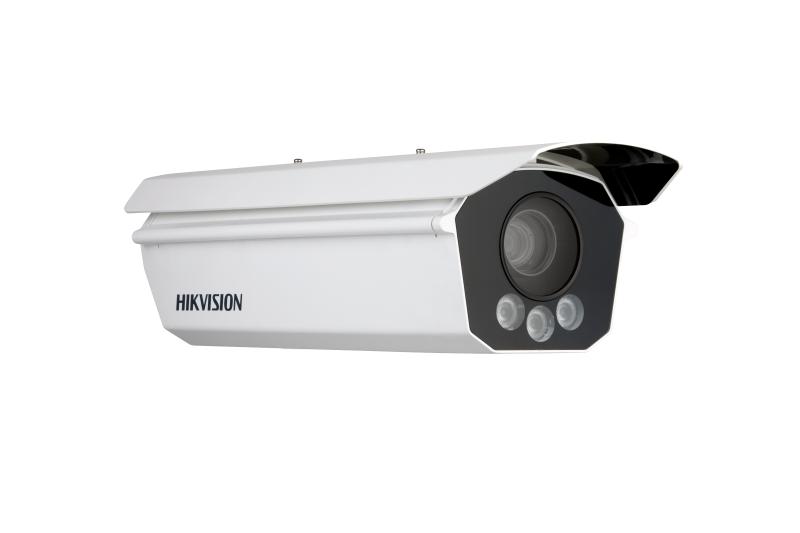

iDS-TCVC00-HE
12MP Checkpoint Camera
iDS-TCVC00-HE 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | 12 MP,1.1" GMOS |
|---|---|
| Max. Resolution | 4112 × 3072 |
| Min. Illumination | Color: 0.001 Lux @ (F1.4, AGC ON), 0 Lux with white light |
| Shutter Time | 25fps 10 us-40000 us, 30fps 10 us-30000 us |
| Day & Night | 24/7 color imaging |
Lens
| Lens Type | Varifocal lens, motorized lens, 11 to 40 mm |
|---|---|
| Focal Length & FOV | 11 to 40 mm, horizontal FOV 61.5° to 24.0°, vertical FOV 46.0° to 18.0°, diagonal FOV 76.6° to 29.9° |
| Focus | Auto |
| Aperture | F1.6 |
Illuminator
| Built-in Supplement Light Type | White light |
|---|---|
| Light Bead | 3 |
| Built-in Supplement Light Range | Up to 30 m |
| External Supplement Light | Strobe and flash light |
Video
| Main Stream | 50Hz: 25 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720) 60Hz: 30 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576) 60 Hz: 30 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576) |
| Video Compression | Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile/Main profile/High profile |
| H.265 Type | Main Profile |
Network
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,802.1X,IPv4/IPv6,UDP,ISUP,ARP,IGMP |
|---|---|
| Simultaneous Live View | Up to 10 channels |
| API | ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M),OTAP |
| User/Host | Up to 32 users,3 user levels: administrator, operator, and user |
| Security | Password protection,Complicated password,HTTPS encryption,Control timeout settings,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for Open Network Video Interface |
| Network Storage | Micro SD/TF card (512 GB),Local storage,CVR,NVR,ANR |
| Client | Hik-Central Master,Hik-Central Pro,HikCentral Master Lite |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser. |
|---|---|
| Day/Night Switch | Auto,Schedule,Manual |
| SNR | 60 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
Interface
| Ethernet Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces |
|---|---|
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
| Alarm | 2 input interfaces (T1, SYNC), 7 output interfaces |
| RS-485 | 3 RS-485 interfaces (half duplex, HIKVISION) |
| RS-232 | 1 RS-232 interface |
| USB | 1 USB 2.0 interface |
Event
| Basic Event | HDD error,Network disconnected,IP address conflict, Vehicle detector exception, Traffic light detector exception |
|---|
Road Traffic and Vehicle Detection
| Coverage | Up to 3 lane(s) |
|---|---|
| Smart Function | License plate recognition,Vehicle type classification,Vehicle color recognition,No-plate vehicle capture,Moving direction detection |
| LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Trigger Mode | External I/O trigger/Radar trigger/Video trigger |
| Vehicle Type | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle |
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| No License Plate Detection | Supported |
| Motorcycle LPR | Supported |
| Vehicle Manufacturer | 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo |
| Vehicle Color | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only. |
| License Plate Color Recognition | Customized to support |
| U-Turn | Supported (only E-Police mode) |
| Red Light Running | Supported (only E-Police mode) |
| Failing to Yield for Pedestrians | Supported (only E-Police mode) |
| Stop Vehicle on Intersection | Supported (only E-Police mode) |
| Not Following Directional Sign | Supported (only E-Police mode) |
| Driving on Lane Line Detection | Supported |
| Lane Change Detection | Supported |
| Yellow Box Junction Violation | Supported (only E-Police mode) |
| Seatbelt Detection | Supported (with flash supplement light) |
| Phone Call Detection | Supported (with flash supplement light) |
| Vehicle Window Film | Supported (with flash supplement light) |
| Wrong-Way Driving Detection | Supported |
| Emergency Lane Occupation | Supported (truck forbidden lane, emergency lane, urban bus lane) |
| Prohibition Mark Violation | Supported |
| Speeding | Supported (with Radar) |
| Low-Speed | Supported (with Radar) |
| Without Helmet | Supported |
| Manned Non-Motor Vehicle | Supported |
| Capture Speed Range | 10 to 320 km/h |
General
| Operating System | Linux |
|---|---|
| Power | AC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block |
| Material | Aluminum alloy |
| Dimension | 501.0 mm × 175.6 mm × 144.6 mm (19.72" × 6.92" × 5.69") |
| Package Dimension | 667 mm × 357 mm × 224 mm (26.26" × 14.06" × 8.82") |
| Weight | Approx. 5.13x kg (11.31x lb.) |
| With Package Weight | Approx. 7.4x kg (16.31x lb.) |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
| Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,Password protection,Three streams,Pixel counter |
| Heater | Supported |
| Language | 7 languages: English, Russian, Croatian, Korean, Spanish, Traditional Chinese, Ukrainian |
Approval
| EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
|---|---|
| Safety | CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2018+A11 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IK10: IEC 62262:2002,IP67: IEC 60529-2013 |
