描述

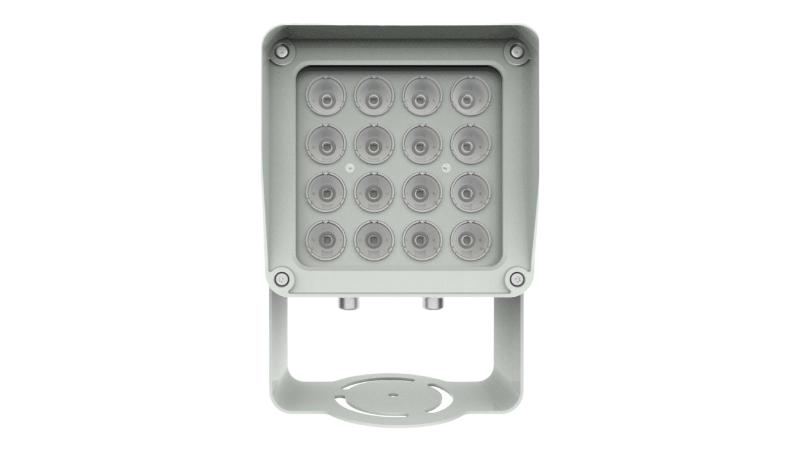

DS-TL2000CI
IR LED Continuous Supplement Light
DS-TL2000CI 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Supplement Light
| Light Type | IR light |
|---|---|
| IR Wavelength | ≥850 nm |
| LED Lamp Beads | 16 |
| Center Illuminance | 60 uW/㎡ |
| Angle of Light | 30° |
| Effective Distance | 16 to 50 m |
| Service Life | ≥ 50000 Hours |
| Coverage | 3 lane(s) |
Function
| Day and Night Function | Support ambient brightness detection, and automatic start-up at low illumination |
|---|
General
| Power | 200 VAC to 240 VAC,0.3 A max.56.8 W,three wires |
|---|---|
| Material | Aluminium alloy |
| Dimensions | 215.25 mm × 151 mm × 127.5 mm (8.47" × 5.94" × 5.02") (L × W × H) |
| Package Dimensions | 290 mm × 247 mm × 230 mm (11.42" × 9.72" × 9.06") (L × W × H) |
| Weight | Approx. 2.7 kg (5.90 lb.) |
| With Package Weight | Approx. 3.5 kg (7.61 lb.) |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Approval
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Safety | CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014, CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
