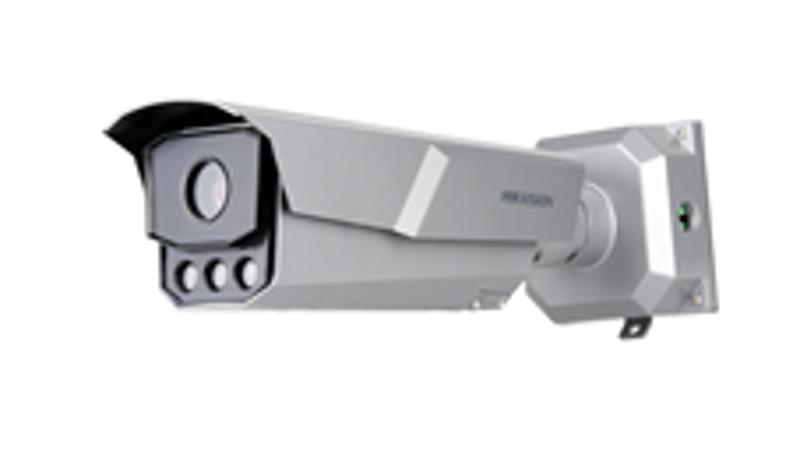

iDS-TCW403-BI
4 MP IR Container No. Recognition Camera
iDS-TCW403-BI 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.001 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux with IR |
| Shutter Time | 1 s to 1/100000 s |
| Day & Night | IR cut filter |
Lens
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 113.5° to 39°, vertical FOV 58.4° to 22.7°, diagonal FOV 141.3° to 44.3° |
|---|---|
| Focus | Auto |
| Iris Type | Auto-iris: DC drive |
| Aperture | F1.38 |
Illuminator
| Built-in Supplement Light Type | IR light |
|---|---|
| Built-in Supplement Light Range | Up to 40 m |
| IR Wavelength | 850 nm |
Video
| Main Stream | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288) |
| Third Stream | 50 Hz: 25 fps (1280 × 760, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 760, 704 × 576, 352 × 288) |
| Video Compression | Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
Audio
| Audio Compression | G.722.1,G.711 |
|---|---|
| Audio Bit Rate | 8 Kbps (G.711),16 Kbps (G.722.1) |
Network
| Protocols | TCP/IP,ICMP,802.1X,IGMP,SNMP,SMTP,NTP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,QoS,IPv4/IPv6,UDP,ARP,ISUP |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users,3 user levels: administrator, operator, and user |
| Security | Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP.EAP-LEAP.EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,Host authentication (MAC address),TLS 1.2,1.3,Control timeout settings,Security audit log,RTP/RTSP over HTTPS,WSSE and digest authentication for ONVIF |
| Network Storage | TF/SD card (512 GB),Local storage,CVR,NVR,ANR |
| Web Browser | Chrome V61 to Chrome V89, IE9 to IE11,Chrome V61+, IE9 to IE11, Firefox V41+, Edge,IE9 to IE11 |
| Image Settings | Saturation,Brightness,Contrast,Sharpness,Gain,White balance,AGC,Adjustable by client software or web browser.,Rotate mode |
|---|---|
| Day/Night Switch | Schedule,Manual,Auto |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | 3D DNR |
Interface
| Ethernet Interface | 1 RJ45 10/100/1000 M self-adaptive Ethernet port(s) |
|---|---|
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
| Audio | 1 line in and 1 line out |
| Alarm | 1 input T port,1 output F port,2 relay port |
| RS-485 | 1 RS-485 |
| Wiegand | 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit) |
Event
| Basic Event | Network disconnected,IP address conflict,HDD error |
|---|
Road Traffic and Vehicle Detection
| Smart Function | Container No. Recognition and ISO No. Recognition |
|---|
General
| Operating System | Linux |
|---|---|
| Power | DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block, PoE: 802.3at, Type 2, Class 4, max. 15 W |
| Material | Aluminum alloy |
| Dimension | 428.5 mm × 120 mm × 138 mm (16.9" × 4.72" × 5.2") (L × W × H) |
| Package Dimension | 452 mm × 398 mm × 198 mm (17.8" × 15.67" × 7.8") (L × W × H) |
| Weight | Approx. 3 kg (6.61 lb.) |
| With Package Weight | Approx. 5.19 kg (11.44 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (Non-condensing) |
| General Function | One-key reset,Three streams,Password protection,Heartbeat |
Approval
| EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
|---|---|
| Safety | CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,CB: IEC 62368-1: 2014+A11 |
| Environment | WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006,CE-RoHS: 2011/65/EU |
| Protection | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018) |
