描述

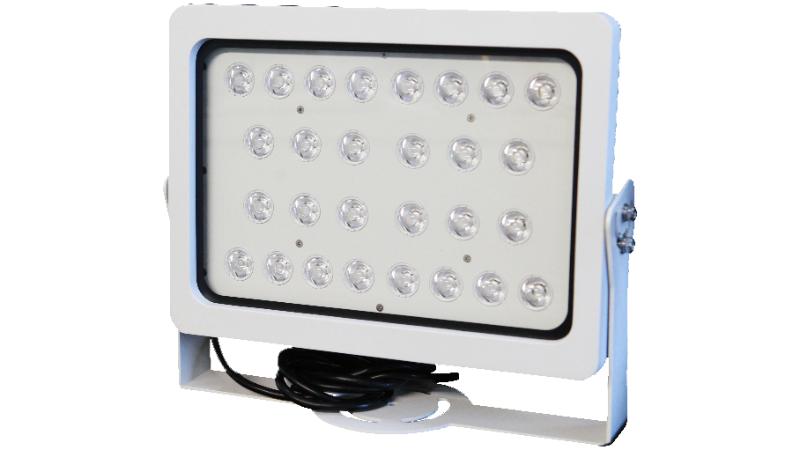

DS-TL2002CI
IR LED Continuous Supplement Light
DS-TL2002CI 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Supplement Light
| Light Type | IR light |
|---|---|
| IR Wavelength | 850nm |
| LED Lamp Beads | 28 |
| Center Illuminance | 100 uW/㎡ |
| Angle of Light | 30° |
| Effective Distance | 16 to 50 m |
| Service Life | ≥ 50000 Hours |
| Coverage | 3 lane(s) |
Function
| Day and Night Function | Support ambient brightness detection, and automatic start-up at low illumination |
|---|---|
| Brightness Control | Two grades of brightness control |
| Remote Control | Adopt remote start-up the supplement light via a control line |
General
| Power | 200 VAC to 240 VAC, 0.3 A, max. 56.8 W, three wires |
|---|---|
| Material | Aluminium alloy |
| Dimensions | 270.5 mm × 314 mm × 119.8 mm (10.65" × 12.36" × 4.72") (L × W × H) |
| Package Dimensions | 430 mm × 380 mm × 215 mm (16.93" × 14.96" × 8.46") (L × W × H) |
| Weight | Approx. 5.2 kg (11.40 lb.) |
| With Package Weight | Approx. 6.3 kg (13.87 lb.) |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Approval
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Safety | CB: IEC 60598-1:2020, IEC 60598-2-5:2015, CE-LVD: EN IEC 60598-1:2021+A11:2022, EN 60598-2-5:2015, EN IEC 62031:2020+A11:2022 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP66: IEC 60529: 1989+A1: 1999+A2: 2013 |
