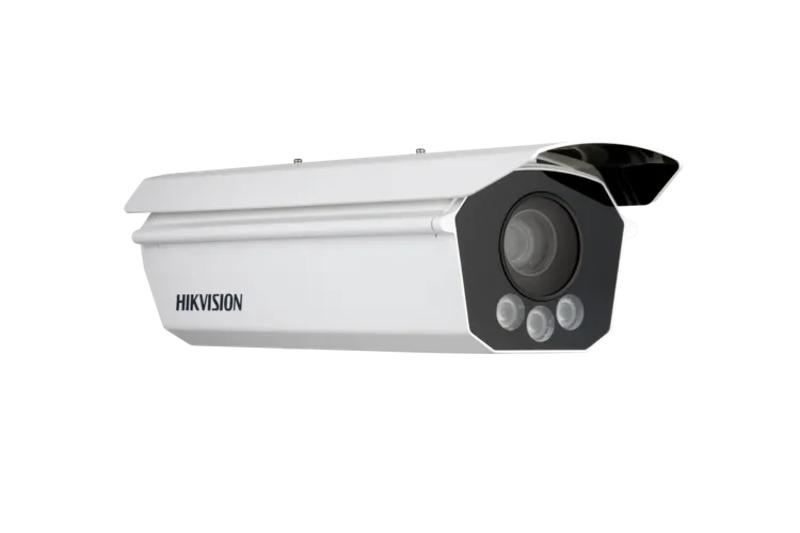

iDS-TCV500-HI
5MP IR Checkpoint Camera
iDS-TCV500-HI 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | 5 MP (2/3'' GMOS) |
|---|---|
| Max. Resolution | 2464 × 2056 |
| Min. Illumination | Color: 0.001 Lux @ (F1.4, AGC ON), B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter Time | 8 us-20000 us |
| Day & Night | IR cut filter |
Lens
| Lens Type | Varifocal lens, motorized lens, 11 to 40 mm; Varifocal lens, motorized lens, 15 to 50 mm |
|---|---|
| Focal Length & FOV | 11 to 40 mm, horizontal FOV 36.8° to 13.9°, vertical FOV 30.7° to 11.6°, diagonal FOV 48.0° to 18.2°;15 to 50 mm, horizontal FOV 32.0° to 10.4°, vertical FOV 26.6° to 8.6°, diagonal FOV 42.4° to 13.6° |
| Focus | Auto |
| Aperture | F1.6;F1.4-C |
Illuminator
| Built-in Supplement Light Type | IR light |
|---|---|
| Built-in Supplement Light Range | Up to 30 m |
| Light Bead | 3 |
| IR Wavelength | 850 nm |
| External Supplement Light | Strobe and Flash light |
Video
| Main Stream | 50 Hz: 50 fps (2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576) 60 Hz: 30 fps(2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576) |
|---|---|
| Sub Stream | 50 Hz: 50 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576) 60 Hz: 30 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576) |
| Third Stream | 50 Hz: 50 fps (2048 × 1536, 1920 × 1080, 704 × 576) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080, 704 × 576) |
| Video Compression | H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile/Main profile/High profile |
| H.265 Type | Main profile |
Network
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, SNMP, 802.1X, IPv4/IPv6, UDP, ISUP, ARP, IGMP, SMTP |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI, SDK, ISUP, ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) |
| User/Host | Up to 16 users 3 user levels: administrator, operator and user |
| Security | Password protection, Complicated password, HTTPS encryption, Control timeout settings, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/TF card (512 GB), local storage and CVR, NVR, ANR |
| Client | Hik-Central Master, Hik-Central Pro, HikCentral Master Lite |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V40+, Edge |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser. |
|---|---|
| Day/Night Switch | Auto, Schedule, Manual |
| SNR | 60 dB |
| Image Enhancement | BLC, 3D DNR |
Interface
| Ethernet Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces |
|---|---|
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
| Alarm | 2 input interfaces (T1, SYNC), 7 output interfaces |
| RS-485 | 3 RS-485 interfaces (half duplex, HIKVISION) |
| RS-232 | 1 RS-232 interface |
| USB | 1 USB 2.0 interface |
Event
| Basic Event | HDD Error, Network disconnected, IP address conflicted, Traffic light detector exception |
|---|
Road Traffic and Vehicle Detection
| Coverage | Up to 2 lane(s) |
|---|---|
| Trigger Mode | External I/O trigger/Radar trigger/Video trigger |
| Smart Function | License plate recognition, Vehicle type classification, color identification, no-plate vehicle capture, moving direction detection |
| LPR Countries/Regions | Mid-East: United Arab Emirates (Abu Dhabi, Fuchaiha, Dubai, Cape Haima, Ozhman, Sharjah, Umgavan), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Cote d'Ivoire, South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra, Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh America: United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, Dominican, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, Britain, Ireland, Germany, Italy, Austria, Israel, Palestine, Belgium, Luxembourg ,Albania, Kosovo Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia |
| No License Plate Detection | Supported |
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| Motorcycle LPR | Supported |
| Vehicle Color | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only. |
| Vehicle Manufacturer | 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo |
| Vehicle Type | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle |
| License Plate Color Recognition | Customized to support |
| U-Turn | Supported(only E-Police mode) |
| Red Light Running | Supported(only E-Police mode) |
| Failing to Yield for Pedestrians | Supported(only E-Police mode) |
| Stop Vehicle on Intersection | Supported(only E-Police mode) |
| Not Following Directional Sign | Supported(only E-Police mode) |
| Yellow Box Junction Violation | Supported (only E-Police mode) |
| Driving on Lane Line Detection | Supported |
| Lane Change Detection | Supported |
| Seatbelt Detection | Supported (with flash supplement light) |
| Phone Call Detection | Supported (with flash supplement light) |
| Vehicle Window Film | Supported (with flash supplement light) |
| Wrong-Way Driving Detection | Supported |
| Emergency Lane Occupation | Supported (truck forbidden lane, emergency lane, urban bus lane) |
| Prohibition Mark Violation | Supported |
| Speeding | Supported (with Radar) |
| Low-Speed | Supported (with Radar) |
| Manned Non-Motor Vehicle | Supported |
| Without Helmet | Supported |
| Capture Speed Range | 10 to 320 km/h |
General
| Operating System | Linux |
|---|---|
| Power | AC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block, DC 24 model: DC 24 V, 2.5 A, max. 35 W, 2-core terminal block |
| Material | Aluminum alloy |
| Dimension | 501 mm × 175.6 mm × 144.6 mm (19.72" × 6.92" × 5.69") (L × W × H) |
| Package Dimension | 667 mm × 357 mm × 224 mm (26.26" × 14.06" × 8.82") (L × W × H) |
| Weight | Approx. 5.13 kg (11.31 lb.) |
| With Package Weight | Approx. 7.4 kg (16.31 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing) |
| General Function | Password protection,Three streams,Heartbeat,One-key reset,Pixel counter |
| Heater | Optional |
| Language | 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
Approval
| EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
|---|---|
| Safety | CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017, CE-LVD:EN IEC 62368-1:2020+A11:2020 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IK10: IEC 62262:2002,IP67: IEC 60529-2013 |
