描述

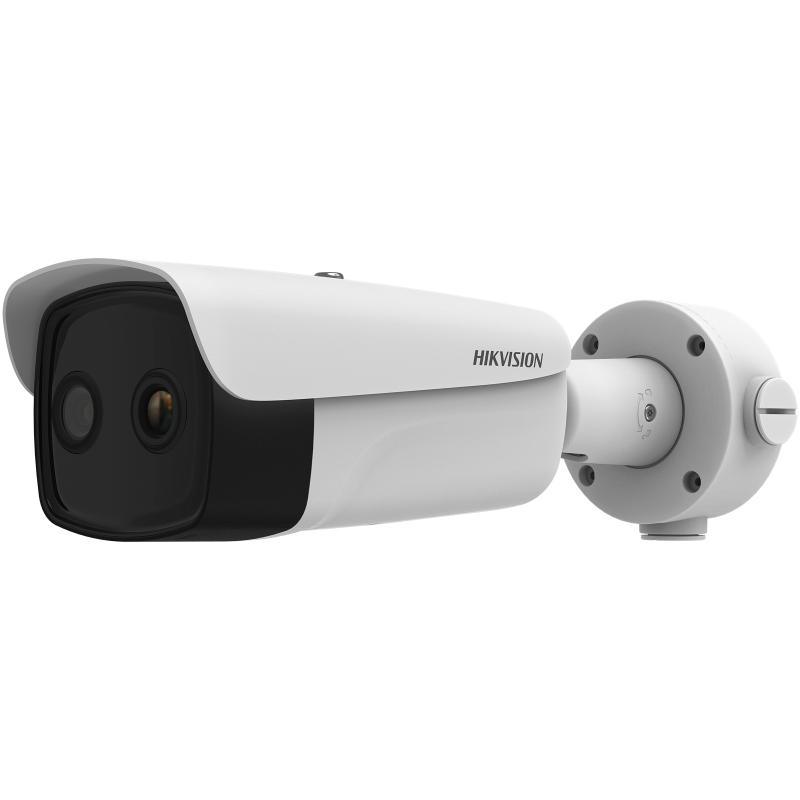

HIKVISION HM-TD2638-8/G1/T3Y Thermal & Optical Bi-spectrum Network Bullet Camera 是海康威視熱成像雲台或雙光譜定位系統。香港防盜為安裝商及經銷商。承重、電源及預置位要現場核；規格以下方原廠資料為準。
HM-TD2638-8/G1/T3Y
Thermal & Optical Bi-spectrum Network Bullet Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution384 x 288
- Pixel Pitch12 μm
- NETD ≤ 20 mK (@25° C,F# = 1.0)
- Focal Length7.6 mm
- IFOV1.58 mrad
- ApertureF1.0
- Field of View35° × 26.1° (H × V)
- Min. Focusing Distance1 m
- Digital Zoom×2, ×4，×8
- Optical Module
- Image Sensor1/2.7″ Progressive Scan CMOS
- Resolution 2688 × 1520
- Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Field of View83.7° × 43° (H × V)
- Focal Length4.3 mm
- Shutter Speed1 s to 1/100,000 s
- White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
- Day & Night ModeIR Cut Filter with Auto Switch
- WDR120 dB
- Image Effect
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in Picture Display partial image of thermal channel on the full screen of optical channel
- Target ColorationYes. Supported in white hot and black hot mode.
- EISThermal channle supports EIS, exclusive with all smart functions
- Illuminator
- IR Distance Up to 30 m
- IR Intensity and AngleAutomatically adjusted
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types (point, area, line), 21 rules in total
- Temperature Range-20 °C to 150 °C (-4 °F to 302 °F)
- Temperature Accuracy ± 8 °C (±14.4 °F)
- Fire DetectionDynamic fire detection, up to 10 fire points detectable
- Smoking DetectionUp to 10 smoking points detected
- Video and Audio
- Main Stream Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280×720P， 704×576， 352×288， 384×288)
- Sub-stream Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288) 60 HZ: 30 fps (704 × 480, 352 × 240) Thermal channel 25 fps (704 × 576, 352 × 288, 384 × 288)
- Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Video and Image
- Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
- Network StorageMicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
- Client iVMS-4200, Hik-Connect
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2-ch, relay outputs (alarm response actions configurable)
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
- Audio Input1, 3.5 mm Mic in/Line in interface Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio Output Linear level, impedance: 600 Ω
- Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- General
- Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block PoE (802.3af, class 3)
- Power Consumption24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.1W 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.3W PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 11.8W
- Working Temperature/HumidityTemperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less
- Protection LevelIP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing NEMX 4X anti-corrosion housing
- Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81″ × 4.68″ × 4.65″)
- 1.82 kg (4.01 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans104 m
- VCA Range for Vehicles240 m
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KSC9832: 2019; KSC9835: 2019)
- SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 LOA: SANS/IEC 60950-1
- EnvironmentCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013 IK10: IEC 62262-2002
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
