描述
HIKVISION HM-TD3028T-2/Q(B) Thermography Cube Camera 是海康威視熱成像雲台或雙光譜定位系統。香港防盜為安裝商及經銷商。承重、電源及預置位要現場核；規格以下方原廠資料為準。

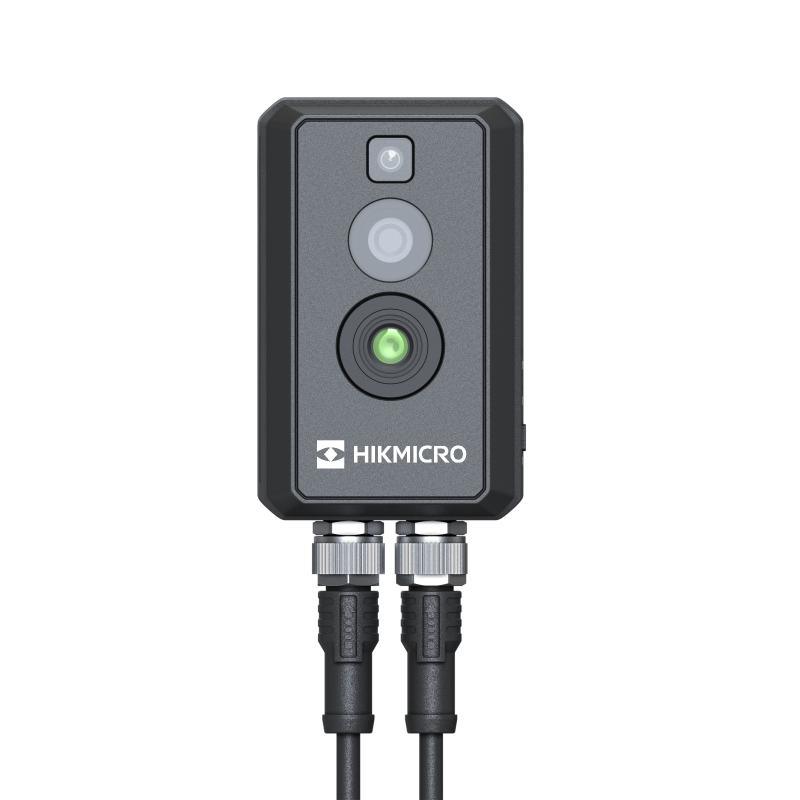

HM-TD3028T-2/Q(B)
Thermography Cube Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution256 × 192
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD≤40 mK (25°C, F1.0)
- Focal Length2.1 mm
- IFOV5.71mrad
- Field of View90° × 64.2° (H × V)
- Min. Focusing Distance0.1 m
- ApertureF1.0
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/5″ Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.06 Lux @ (2.2, AGC ON)，0 Lux with IR
- Shutter Speed1 s to 1/100,000 s
- Focal Length1.4mm
- Field of View96.9° × 77.2° (H × V)
- Aperture (Range)F2.2
- WDR120 dB
- Image Effect
- Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
- Picture in PictureDisplay partial image of thermal channel on the full screen of optical channe
- Target ColorationYes. Supported in white hot and black hot mode.
- Audible and Visual Alarm
- White Light RangeUp to 3.5 m
- Visual AlarmYes. White light alarm
- Audio alarmBuzzer triggered when alarm happens
- Smart Function
- Temperature Measurement3 temperature measurement rule types (point, area, line), 21 rules in total
- Temperature Range-20 °C to 550 °C (-4 °F to 1022 °F)
- Temperature AccuracyMax (± 2 °C, ±2 %)
- Video and Audio
- Main StreamThermal: 25 fps (1280 × 960, 1280 × 720, 704 × 576, 640 × 512) Optical: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440,1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440,1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-streamThermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
- Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
- Video and Image
- Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP
- Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T), OTAP
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
- Interface
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionRelay output/Smart capture/FTP upload/Email linkage
- Communication Interface1, RJ45 10 M/100 M/1000M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
- General
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply12 VDC, Max. 5 W PoE (802.3af, class 2)
- Working Temperature/HumidityAccurate Temperature Measurement: -20 °C~60 °C, ＜90% RH Normal Operation: -40 °C~70 °C,＜90% RH
- Protection LevelIP67 Standard
- Dimensions56 mm × 38.9 mm × 111.2 mm (2.20″ × 1.53″ × 4.38″)
- Approx. 335 g (0.74 lb)
- Approval
- EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KSC 9832:2023; KSC 9835:2019)
- SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; LOA: SANS/IEC 60950-1
- EnvironmentCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
