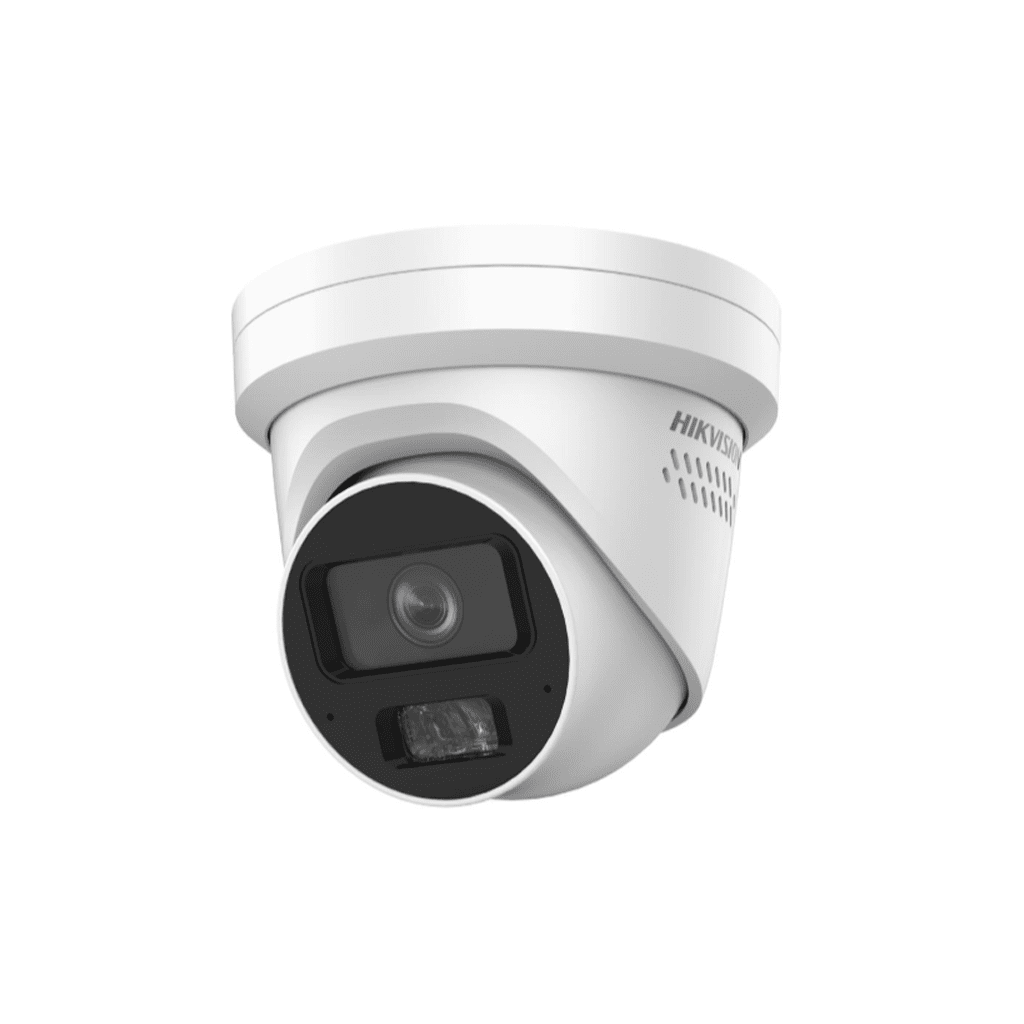

HIKVISION iDS-2CD5387G2-XS
8MP DarkfighterS Fixed Lens Turret Camera
Features
- High quality imaging with 8 MP resolution
- Excellent low-light performance via Darkfighter2.0 technology
- Clear imaging against strong back light due to 120 dB Auto-WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 4 streams to meet a wide variety of applications
- Water and dust resistant (IP67)
- TPM 2.0 for cyber security
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter, Blue glass module (less ghost phenomenon) |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 65°,rotate: 0° to 360° |
| Image | |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC,HLC,3D DNR,Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| Image Stabilization | EIS |
| General | |
| Power | 12 VDC ± 20%, 0.76A, max. 9.1 W, PoE: IEEE 802.3af, Type 1, Class 3, 36 V to 57 V, 0.29 A to 0.22 A, max. 12.3 W |
| Material | Aluminum alloy body |
| Dimension | Ø138.63 mm × 123.42 mm (Ø5.46″ × 4.86″) |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 6.0″) |
| Weight | Approx. 820 g (1.81 lb.) |
| With Package Weight | Approx. 1095 g (2.42 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log |
| Integrated Connector Panel | No |
