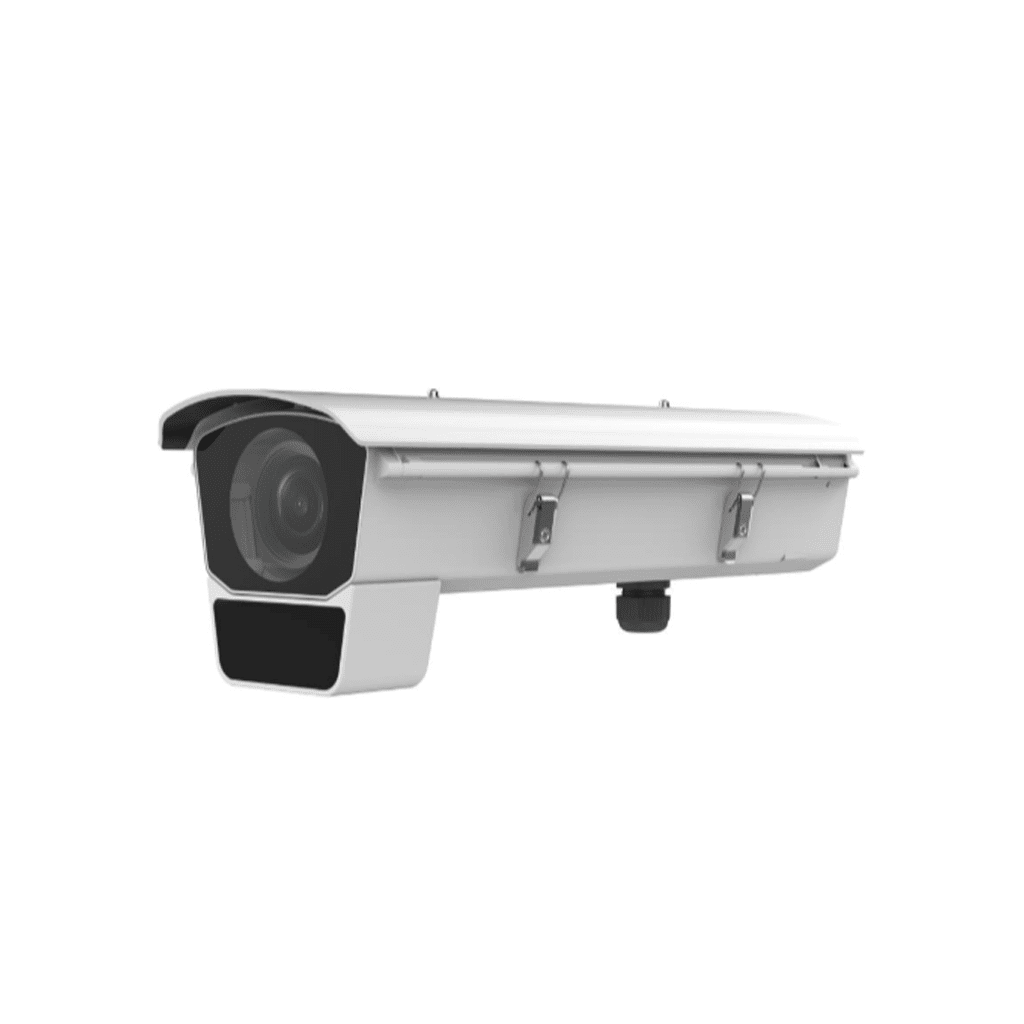

HIKVISION iDS-2CD7046G0/E-IHSY(/F11)(R)
4MP DeepinView Varifocal Box With Housing Camera
Features
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP66) and vandal proof (IK10)
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter Blue glass module to reduce ghost phenomenon |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| SNR | ≥ 52 dB |
| Privacy Mask | 8 programmable polygon privacy masks |
| Image Stabilization | EIS |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| General | |
| Power | With F11: 24 VDC ± 20%, 0.98 A, max. 23.3 W, three-core terminal block 24 VAC ± 20%, 1.05 A, max. 25 W, three-core terminal block PoE: IEEE 802.3bt, Type3, Class 5, 42.5 V to 57 V, 0.63 A to 0.47 A, max. 26.4 W Without /F11: |
| Material | Aluminum alloy body, PP sun shield, PC front panel |
| Dimension | 465.3 mm × 169.2 mm × 164.7 mm (18.3″ × 6.7″ × 6.5″) |
| Package Dimension | 615 mm × 360 mm × 225 mm (24.2″ × 14.2″ × 8.9″) |
| Weight | Approx. 3800 g (8.4 lb.) |
| With Package Weight | Approx. 6000 g (13.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, password protection, one-key reset |
| Device Management | Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
