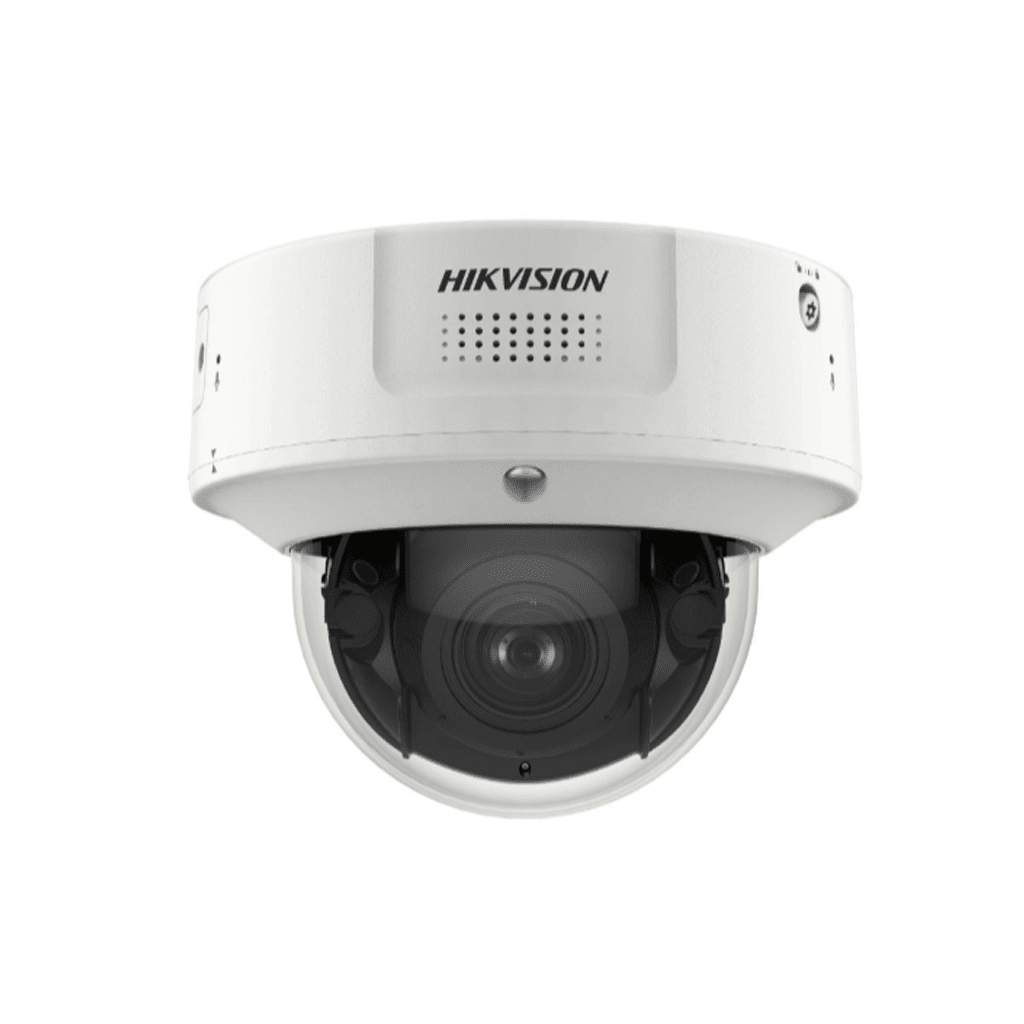

HIKVISION iDS-2CD7186G2-IZ(H)S(Y)
8MP DeepinView Moto Varifocal Dome Camera
Features
- High quality imaging with 8 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Capture vehicles and humans of different speed clearly via ShotN technology
- Clear imaging against strong back light due to 140 dB AWDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
- High frame rate, up to 8MP@60fps and 2MP@120fps
- Built-in dual-mic and speaker for real-time audio security
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter,Blue glass module (less ghost phenomenon) |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| Image Stabilization | EIS |
| General | |
| Power | 12 VDC ± 20%, 1.25 A, max. 14.75 W,three-core terminal block,reverse polarity protection, 24 VAC ± 20%, 1.05 A, max. 14.1 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.37 A to 0.27 A, max. 15.7 W |
| Material | Base: metal, cover: metal |
| Dimension | Ø144.3 mm × 114.1 mm (Ø5.7″ × 4.5″) |
| Package Dimension | 244 mm × 174 mm × 173 mm (9.6″ × 6.9″ × 6.8″) |
| Weight | Approx. 1100 g (2.43 lb.) |
| With Package Weight | Approx. 1482 g (3.27 lb.) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | With -H: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing), Without -H: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,one-key reset,mirror,password protection |
| Cable Length | 0.25 m (0.8 ft.) |
| Heater | -H: Yes |
| Device Management | Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces |
| Integrated Connector Panel | No |
