HIKVISION iDS-2CD7T46G2/VX3-I(H)S(Y)

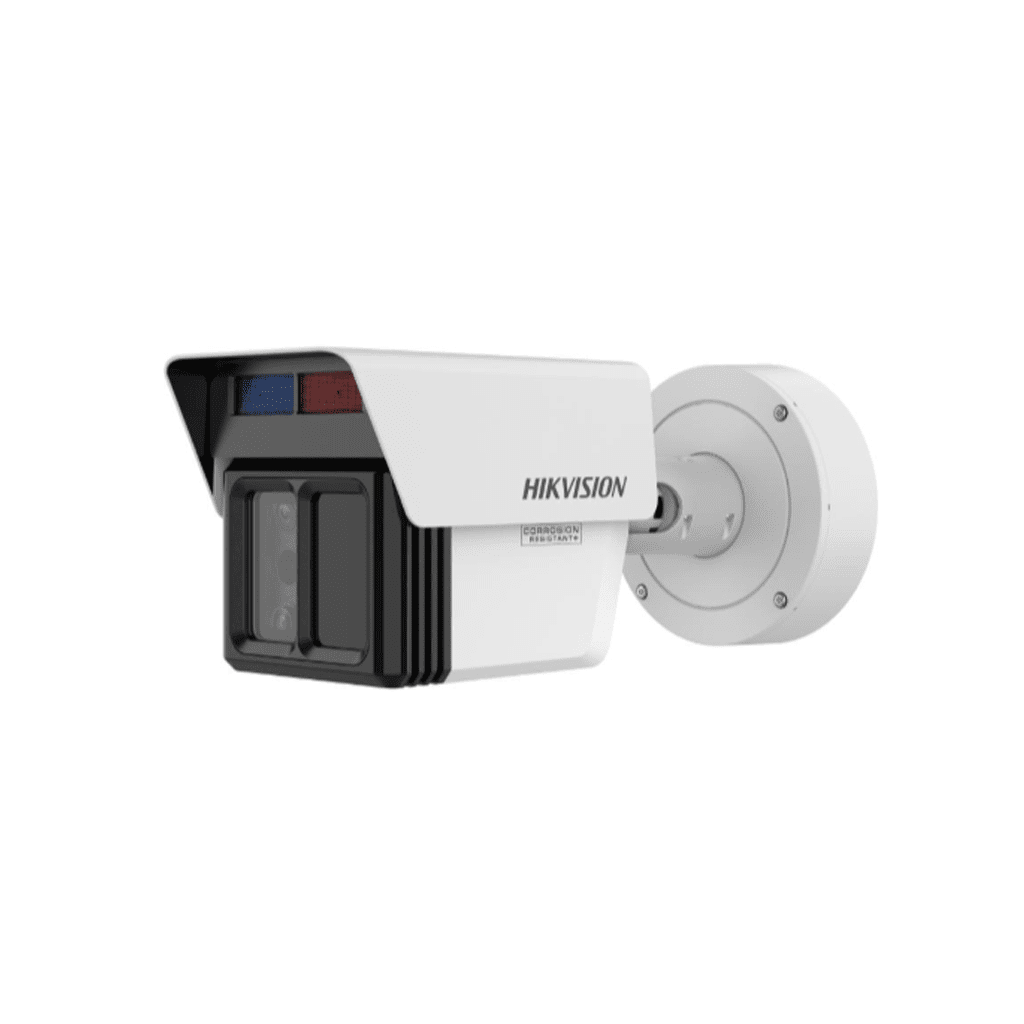

4MP DeepinViewX Triple Fixed Lens Bullet Camera for Perimeter Protection

Features

High quality imaging with 4MP and 2 × 2MP Resolution
Excellent low-light performance via DarkFighter 2.0 Sharpmotion
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
Dedicated Guanlan large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras. Detect person and vehicle up to 120 m
Red/blue alarm LED and audible warning
Motorized tilt adjustment from -10° to 10° for easy installation
TPM 2.0 for cyber security

Specifications

Camera
Image Sensor	1/2.7″ Progressive Scan CMOS
Max. Resolution	Channel 1: 2688 × 1520 Channel 2: 1920 × 1080 Channel 3: 1920 × 1080
Min. Illumination	Channel 1: Color: 0.005 Lux @ (F1.2, AGC ON),B/W:0.002 Lux @ (F1.2, AGC ON),0 Lux with IR; Channel 2: Color: 0.005 Lux @ (F1.2, AGC ON),B/W:0.0002 Lux @ (F1.2, AGC ON),0 Lux with IR; Channel 3: Color: 0.005 Lux @ (F1.2, AGC ON),B/W:0.0002 Lux @ (F1.2, AGC ON),0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Image Parameters Switch	Yes
Image Settings	Saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask	8 programmable polygon privacy masks
SNR	≥ 52 dB
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Image Stabilization	EIS
General
Power	12 VDC ± 20%, 2.1 A, max. 25.2 W PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.56 A to 0.45 A, max. 25.5 W
Material	Front cover: metal, body: metal, bracket: metal
Dimension	128.9 mm × 139.5 mm × 337 mm (5.1″ × 5.5″ × 13.2″)
Package Dimension	423 mm × 200 mm × 198 mm (16.65″ × 7.87″ × 7.8″)
Weight	With -Y: Approx. 2500 g (5.51 lb.), Without -Y: Approx. 2510g (5.53 lb.)
With Package Weight	With -Y: Approx. 3470 g (7.65 lb.), Without -Y: Approx. 3530 g (7.78 lb.)
Storage Conditions	-30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	With -H: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing), Without -H: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat, mirror, password protection, one-key reset
Heater	-Y: Yes
Device Management	Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
