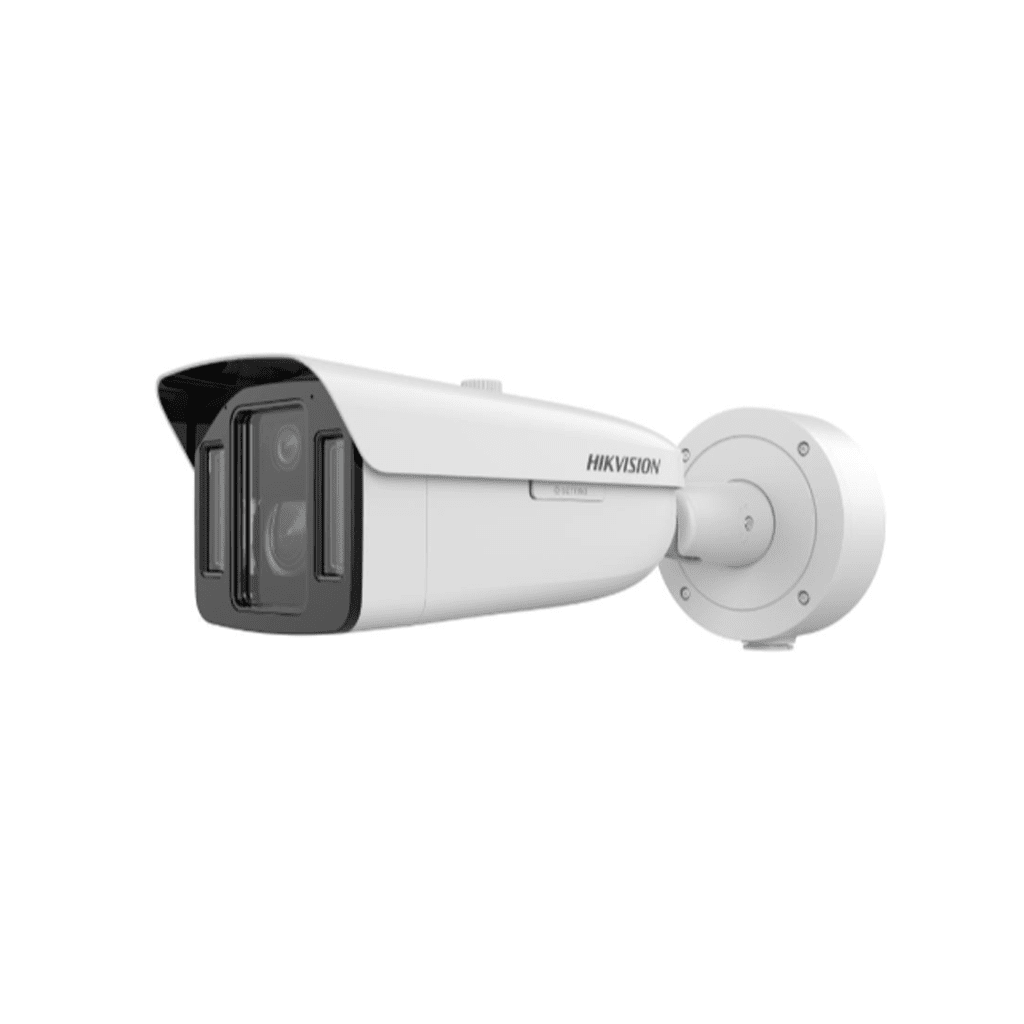

HIKVISION iDS-2CD8A48G2-XZHS(Y)
4MP DeepinView Multi-Sensor Bullet Camera
Features
- Excellent low-light performance via DarkFighterX and ColorVu technology
- Adopt dual-channel design so you can get details in channel 1 and panorama view in channel 2
- High quality imaging with 4 MP resolution in channel 1 and 4 MP resolution in channel 2
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67) and vandal proof (IK10)
Specifications
| Camera | |
| Image Sensor | Channel 1: 1/1.8″ Progressive Scan CMOS, Channel 2: 1/1.8 Progressive Scan CMOS” |
| Max. Resolution | Channel 1: 2560 × 1440, channel 2: 2560 × 1440 |
| Min. Illumination | Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR, Channel 2: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light, B/W: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | Blue glass module (less ghost phenomenon) |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360° |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
| Day/Night Switch | Channel 1: Day, Night, Day (DarkfighterX), Auto (DarkfighterX), Schedule (DarkfighterX), Full Time Color, Channel 2: Day, Night, Auto, Scheduled-Switch, Triggered by Alarm input |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | Channel 1: BLC, HLC, 3D DNR, Defog, EIS, Channel 2: BLC, HLC, 3D DNR, Defog |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| General | |
| Power | Three-core terminal block, 12 VDC ± 20%, 1.82A, max. 21.8 W, 24 VAC ± 20%, 1.4 A, max. 21.6 W, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.56 A to 0.42 A, max. 23.7 W |
| Material | Aluminum alloy body |
| Dimension | Ø140 mm × 410.1 mm (Ø5.5″ × 16.1″) |
| Package Dimension | 462 mm × 197 mm × 195 mm (18.2″ × 7.76″ × 7.68″) |
| Weight | Approx. 2620 g (5.78 lb.) |
| With Package Weight | Approx. 3260 g (7.19 lb.) |
| Storage Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,one-key reset,mirror,password protection,flash log,anti-banding |
| Heater | With -H: Yes |
| Demist | Yes |
| Integrated Connector Panel | -Y: No |
