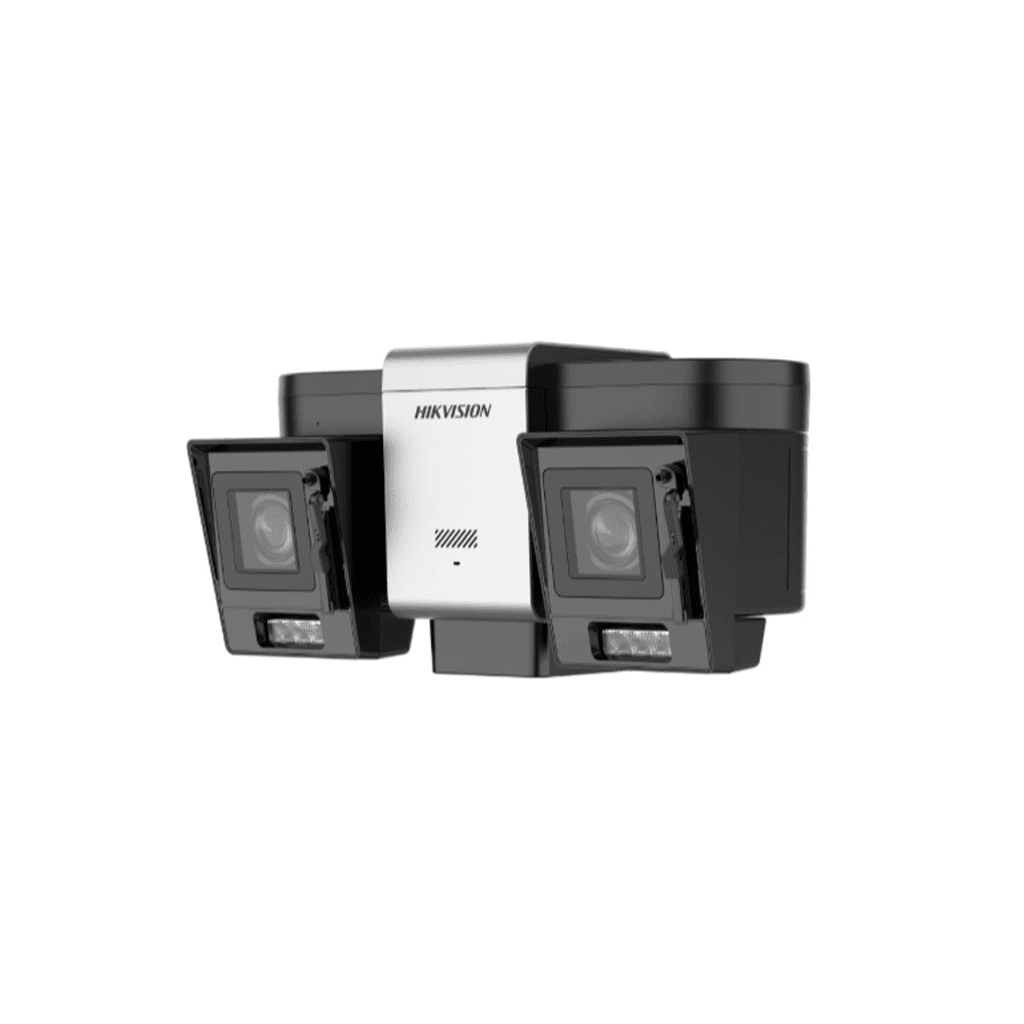

HIKVISION iDS-2CD8V446G0/X2-XZHS(Y)

4MP DeepinView Dual-Lens Omni Camera

Features

Excellent low-light performance via DarkFighter2.0 technology
Intelligent functions based on deep learning in various scenarios
High quality imaging with 4 MP resolution in channel 1/2
Clear imaging against strong back light due to 150 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Adopt 2-channel design with motorized PT, pan -10° to 190°, tilt -5° to 25°
Built-in power meter for historical power statistics
Support wiper for window cleaning and built-in heater to ensure clear image
Water and dust resistant (IP67) and corrosion resistant (NEMA 4X)

Specifications

Camera
Image Sensor	Channel 1: 1/1.8″ Progressive Scan CMOS, Channel 2: 1/1.8 Progressive Scan CMOS”
Max. Resolution	Channel 1: 2560 × 1440, Channel 2: 2560 × 1440
Min. Illumination	Channel 1: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR Channel 2: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with Light B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	Channel 1: IR cut filter, Blue glass module to reduce ghost phenomenon, Channel 2: IR cut filter, Blue glass module to reduce ghost phenomenon
Angle Adjustment	Channel 1: Pan: -10° to 190°, tilt: -5° to 25°, Channel 2: Pan: -10° to 190°, tilt: -5° to 25°
Image Parameters Switch	Yes
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	150 dB
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction
Privacy Mask	8 programmable polygon privacy masks
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
General
Power	36 VDC ± 20%, 1.56 A, max. 56.12 W,two-core terminal block
Material	Plastics and metal
Dimension	382.3 mm × 193.6 mm × 201.5 mm (15.1″ × 7.6″ × 7.9″)
Package Dimension	490 mm × 280 mm × 343 mm (19.3″ × 11″ × 13.5″)
Weight	Approx. 4795 g (10.6 lb.)
With Package Weight	Approx. 6760 g (14.9 lb.)
Storage Conditions	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-banding
Heater	Yes
Wiper	Yes
Demist	Yes
Flashing Light	White Light
