描述

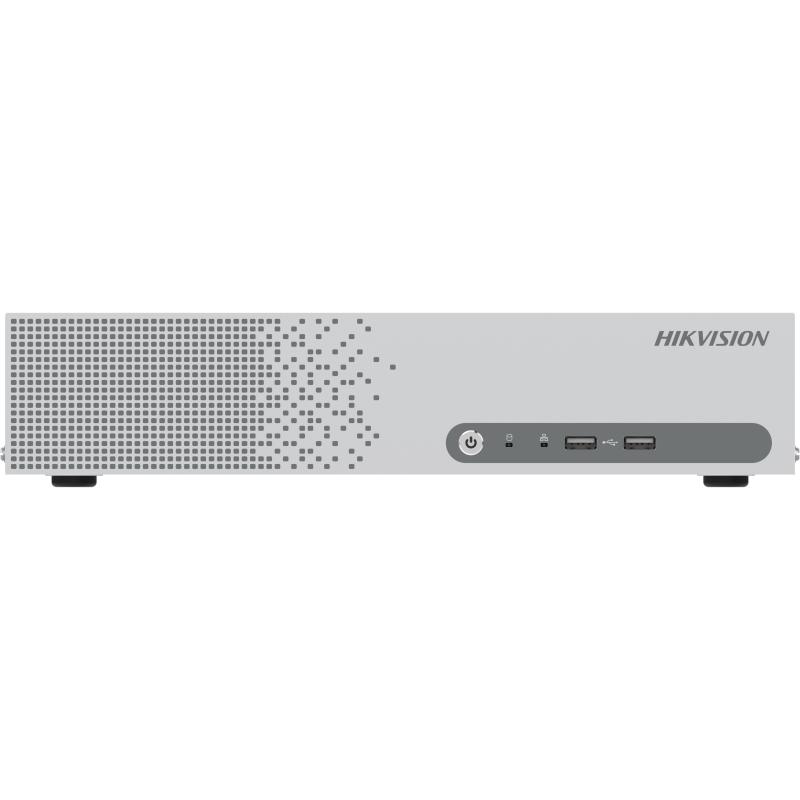

iDS-6716NXI-M1/AF
DeepinMind AIOP NVS
iDS-6716NXI-M1/AF 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
AI Open Platform Performance
| Engine | 2 * KT5，1 for small model analysis as default , 1 for lager model algorithm secondary analysis,1 engine can support 4 algorithm models at the same time |
|---|---|
| Live Video Analysis | 1 engine can support up to 8ch,(8ch@4MP，4ch @8MP) |
| Auto-Switch Video Analysis | 1 engine can support up to 16ch,(switch time between 10 to 3600 seconds) |
| Scheduled Capture Analysis | 1 engine can support up to 16ch, (switch time between 3 to 3600 seconds) |
| Offline Picture Analysis | 4 images per GPU per second or 1 image per GPU per second ( Large model) |
Human
| Facial recognition | Face Capture/Face Picture Comparison(32 face libraries, 100, 000 pictures) |
|---|---|
| Personnel Compliance | Hard Hat/Reflective Cloth/Skin Exposure/Goggles/Smoking/Phone Call/Using Phone/Sleeping (Face down)/Sleeping (Reclining)/Absence/Seatbelt/Person Overstay/Person Loitering |
| Workwear Registration and Comparison | Work uniform/Work hat |
| People Counting | Regional people counting/People counting statistics |
| Street Behaviour | Violent/Fall Down/Running/Gathering |
Vehicle
| Vehicle Recognition | Excavator/Bulldozer/Dump Truck/Concrete Pump Truck/Crane/Cement Tanker/Tower Crane/Truck/Oil Tank Truck/Electric Moped/Bicycle/Coach/Small Sized Vehicle/Forklift/Tricycle |
|---|
Environment
| Smoke and Fire | Smoke/Fire |
|---|---|
| Perimeter Protection | Intrusion detection/Line crossing detection/Region entrance detection/Region exiting detection |
| Fire Escape Occupation Detection | Fire_Escape_Occupation_Detection |
Object
| Object Detection | Fire_Extinguisher/ Oxygen_Cylinder/ Acetylene_Cylinder/ Gas_Cylinder/ Fire_Extinguisher_Box/Fire_Blanket/ Banner/ Dustbin/Traffic_Cone |
|---|
AIOP
| AI Open Platform Algorithm | Detection model, Classification model, Mixed model (Detection model and Classification model), Double detection model |
|---|
Video and Audio
| IP Video Input | 16-ch |
|---|---|
| Incoming Bandwidth | 256 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| Video Output Mode | HDMI/VGA simultaneous output |
| HDMI Output | HDMI1：8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1080P (1920 × 1080)/60 Hz HDMI2：4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| VGA Output | 1080P (1920 × 1080)/60 Hz |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
Decoding
| Decoding Format | H.265/H.265+/H.264/H.264+ |
|---|---|
| Decoding Capability | Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080P |
| Recording Resolution | 16-ch |
| Synchronous Playback | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
Network
| Remote Connection | 128 |
|---|---|
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
Auxiliary Interface
| SATA | 1 SATA interface |
|---|---|
| Capacity | Up to 16 TB capacity for each HDD,1 built-in 3.5-inch 2 TB SATA hard disk |
| eSATA | 1 eSATA interface |
| Serial Interface | 1 RS-232 interface, 2 RS-485 interfaces |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
| Alarm In/Out | 16/4 |
General
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian |
|---|---|
| Power Supply | 12V DC, 7.5A |
| Consumption | ≤ 60 W (without HDD) |
| Working Temperature | -10℃ to 55℃ (14℉ to 131℉) |
| Working Humidity | 10% to 90% |
| Dimension (W × D × H) | 320 mm × 224 mm × 65 mm |
