描述

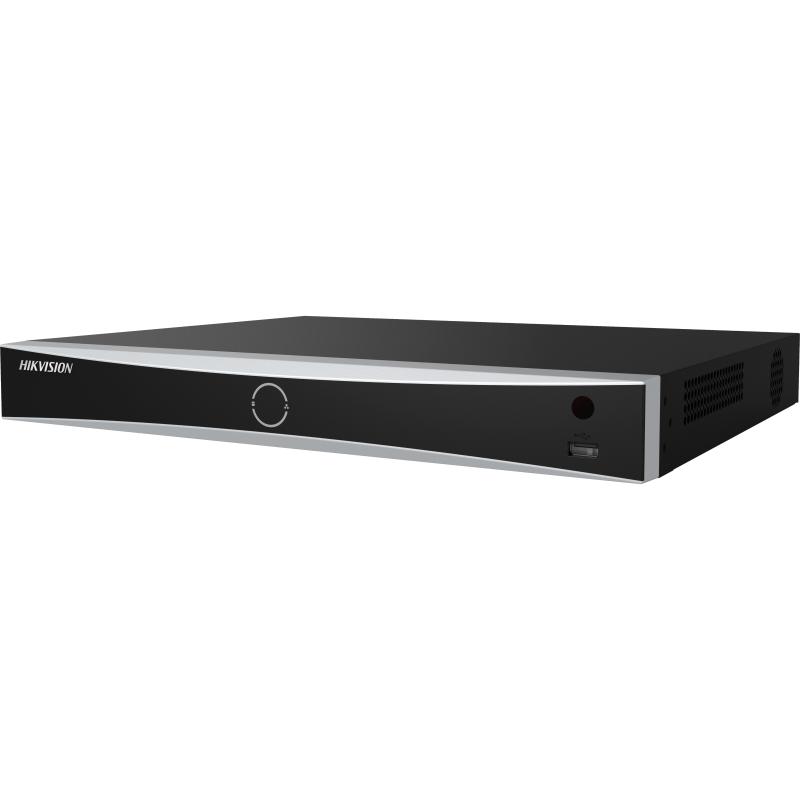

iDS-7608NXI-M2/8P/X
8-ch 1U 8 PoE 8K DeepinMind NVR
iDS-7608NXI-M2/8P/X 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Intelligent Analytics
| AI by NVR | Facial recognition, perimeter protection, video structuralization, AcuSearch |
|---|---|
| AI by Camera | Facial recognition, perimeter protection, video structuralization, AcuSearch , motion detection2.0, ANPR, people counting, VCA |
| Engine | 1 engine can run an intelligent algorithm, engine mode is adjustable |
AcuSearch
| By Camera | All channels, up to 345,600 targets/day The camera should enable AcuSearch function |
|---|---|
| By NVR | Up to 4-ch, up to 345,600 targets/day |
Perimeter Protection
| By NVR | 8-ch 4 MP or 4-ch 8 MP (Without Large Model) 6-ch 2 MP or 4-ch 4 MP or 2-ch 8 MP (With Large Model) |
|---|---|
| By Camera | All channels (powered by Large Model) |
Video Structuralization
| Structured Analysis | Up to 6-ch 2 MP or 4-ch 4 MP or 2-ch 8 MP |
|---|---|
| Face Picture Library | Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
| Face Picture Comparison | 8-ch; Comparison speed: 16 pictures per second |
Target Recognition
| Facial Detection and Analytics | Face picture comparison, human face capture, face picture search |
|---|---|
| Face Picture Library | Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
| Face Picture Comparison (Captured from Camera) | 8-ch; Comparison speed: 24 pictures per second |
| Facial Detection and Analytics Performance | Up to 8-ch 2 MP or 4-ch 4 MP or 2-ch 8 MP |
ANPR
| By Camera | All channels |
|---|---|
| Plate Attributes | Plate number, license plate color, license plate type |
| Vehicle Attributes | Vehicle brand, vehicle color, vehicle type |
Video and Audio
| IP Video Input | 8-ch Up to 32 MP resolution |
|---|---|
| Incoming Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 256 Mbps |
| HDMI Output | 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| Video Output Mode | HDMI/VGA independent output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| VGA Output | 1920 × 1080/60Hz |
Decoding
| Decoding Format | H.265/H.265+/H.264/H.264+ |
|---|---|
| Decoding Capability | 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP (30fps) |
| Synchronous Playback | 8-ch |
| Recording Resolution | 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF |
Network
| Remote Connection | 128 |
|---|---|
| Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
| API | ONVIF (profile S/G); SDK; ISAPI |
| Compatible Browser | IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version |
| Network Interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
PoE
| Interface | 8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
|---|---|
| Power | ≤ 120 W |
| Standard | IEEE 802.3 af/at |
Auxiliary Interface
| SATA | 2 SATA interfaces; 3.5-inch HDD |
|---|---|
| eSATA | 1 eSATA interface |
| Capacity | Up to 20 TB capacity for each HDD |
| USB Interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm In/Out | 4/1 |
General
| GUI Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian |
|---|---|
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 50 W (without HDD and PoE off) |
| Working Temperature | -10 to 55°C (14 to 131° F) |
| Working Humidity | 10 to 90% |
| Dimension (W × D × H) | 385 × 315 × 52 mm ( 15.2"× 12.4" × 2.0") |
Certification
| Obtained Certification | CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
|---|---|
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| CE | EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
