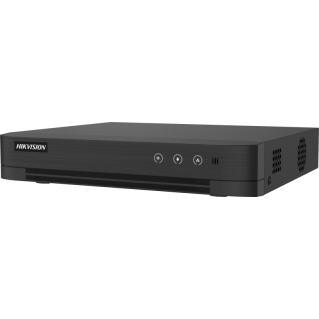

HIKVISION iDS-7208HUHI-M1/T 8-ch 5MP 1U H.265 AcuSense DVR

HIKVISION iDS-7208HUHI-M1/T 8-ch 5MP 1U H.265 AcuSense DVR

查詢價錢

8-ch 5MP 1U H.265 AcuSense DVR

  • Key Feature
  • 8 channels and 1 HDD 1U AcuSense DVR
  • Support 4-ch advanced model Perimeter Protection base d on Deep Learning algorithm
  • Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
  • Up to 16 channels IP camera inputs, each channel up to 8MP
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Support all channels Motion Detection Technology
  • Support a ll channels HDTVI Two -Way Audio Technology Compression and Recording

此型號可由傑成系統有限公司上門安裝（保安牌照 1507）。身份為安裝商及經銷商。安裝見閉路電視安裝；保養見保養；其他公司系統維修見維修。

WhatsApp 查詢此型號 預約免費勘察
  • 持牌安裝（保安公司牌照 1507）
  • 原廠行貨，原廠保用
  • 全港免費上門勘察
貨號: iDS-7208HUHI-M1-T 分類: , ,

描述

iDS-7208HUHI-M1/T

8-ch 5MP 1U H.265 AcuSense DVR

Specification

Video And Audio

  • IP Video Input4-ch (up to 12-ch) Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input8-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps AHD Input 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps HDCVI Input 8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25/20fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps CVBS Input PAL/
  • Video Output ModeHDMI/VGA simultaneous output
  • HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input) Synchronous Playback 8-ch Recording

Decoding

  • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Frame Rate Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) Video Bitrate 32 Kbps to 10 Mbps Dual -stream Support
  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711u Audio Bitrate 64 Kbps Network Total Bandwidth 128 Mbps

Network

  • Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface Wi -Fi Connectable to Wi -Fi network by Wi -Fi dongle through USB interface
  • Network ProtocolTCP/IP, PPPoE, DHCP, Hik -Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connection64

Auxiliary Interface

  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • USB InterfaceRear panel: 2 × USB 2.0

General

  • Power Supply12 VDC, 2 A
  • Consumption≤ 15 W (without HDD)
  • Working Temperature-10 ° C to +55 ° C (+14 ° F to +131 ° F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)
  • Weight≤ 1.6 kg (without HDD, 3.5 lb.)

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。 官方規格書 PDF
