描述

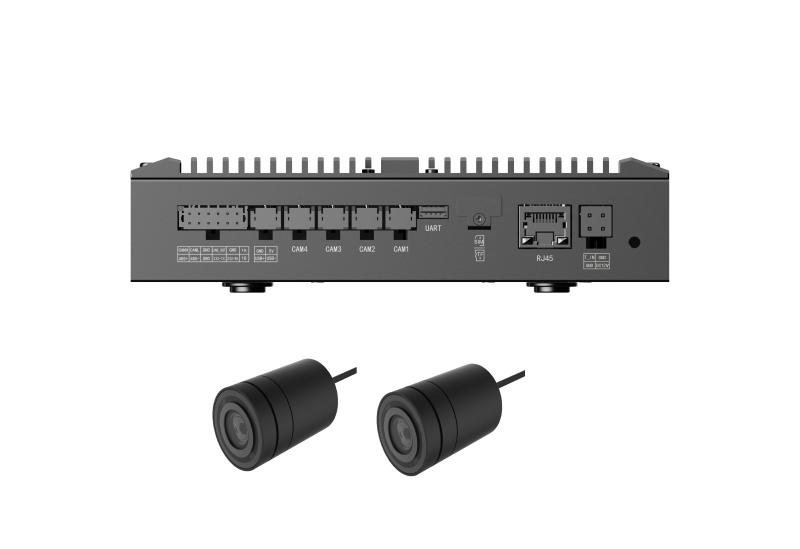

iDS-MI3704-H
Mobile Patrol ANPR System
iDS-MI3704-H 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Max. Resolution | 1920 × 1080 |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F2.0, AGC ON) |
| Shutter Time | 1/25 s to 1/20000 s |
Lens
| Focal Length & FOV | 4 mm, horizontal FOV 91°, vertical FOV 75°, diagonal FOV 105° |
|---|---|
| Focus | Fixed |
| Iris Type | Fixed iris |
| Aperture | Max. F2.0 |
Illuminator
| Built-in Supplement Light Type | White light or IR light |
|---|---|
| Light Bead | 4 |
| Built-in Supplement Light Range | Up to 8 m |
Video
| Main Stream | 50 Hz:25fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) |
|---|---|
| Sub Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) |
| Video Compression | H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile,Baseline Profile,High Profile |
| H.265 Type | Main Profile |
Network
| Protocols | TCP/IP,HTTP,FTP,DHCP,DNS,RTP,RTSP,NTP,ISUP |
|---|
Wireless (Wi-Fi)
| Encryption Mode | WPA-PSK/WPA2-PSK |
|---|---|
| Wi-Fi Protocol | 802.11b,802.11n,802.11g |
| Frequency Range | 2.4 GHz to 2.4385 GHz |
| Channel Bandwidth | 20/40 MHz |
| Modulation | 802.11b: CCK(11, 5.5Mbps), QPSK(2Mbps), BPSK(1Mbps),,802.11g: OFDM,802.11n: OFDM |
| Transfer Rate | 11b: 11,5.5,2,1 Mbps, 11g: 54,48,36,24,18,12,9,6 Mbps,11n: up to 150 Mbps |
| Wireless Range | Up to 120 m (The performance varies based on actual environment.) |
| Antenna | 1 antenna(s) |
Wireless (Mobile Communication)
| Frequency | EU: LTE FDD: Band 1/3/5/7/8/20/28 LTE TDD: Band 38./40/41 WCDMA/HSPA+: Band 1/5/8 TD-SCDMA: Band 34/39 GSM/GPRS/EDGE: 850/900/1800MHz LA: LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 LTE-TDD: Band38/40 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900MHz |
|---|---|
| Standard | LTE-TDD,LTE-FDD,TD-SCDMA,EVDO,EDGE,GPRS,GSM,CDMA |
| SIM Card Type | Nano SIM |
Supplement Detection (Satellite Positioning)
| Satellite Positioning | GPS |
|---|
Interface
| Ethernet Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s) |
|---|---|
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
| Audio | 1 output (line out), max. output amplitude: 1.8 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm | 1 input(s),1 output(s) |
| RS-485 | 1 RS-485 |
| RS-232 | 1 RS-232 |
| Power Output | 5 VDC, max. 2 A |
Road Traffic and Vehicle Detection
| Trigger Mode | Video trigger |
|---|---|
| Smart Function | License plate recognition |
| LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 98%, Vehicle moving direction recognition accuracy > 98%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| Blocklist and Allowlist | Max. 200000 records |
General
| Operating System | Linux |
|---|---|
| Power | DC 9 V to 36 V, 2.5 A, max. 22.5 W |
| Material | Camera: aluminum alloy, Host: aluminum alloy |
| Dimension | Camera：Ø 38mm × 59.3mm (Ø 1.49" ×2.33 "), Host：170mm×100mm×39.5mm(6.69" × 3.94" × 1.56") (L × W × H); |
| Package Dimension | 374 mm × 345 mm × 90 mm (14.72" × 13.6" × 3.54") (L × W × H) |
| Weight | Host: Approx. 0.58 kg (1.28 lb.);, Camera: Approx. 0.14 kg (0.31 lb.) |
| With Package Weight | Approx. 1.82 kg (4.0 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, password protection, NTP time adjustment |
| Language | English |
Approval
| RF | CE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4，EN 301489-52 V1.2.1，EN 300440 V2.1.1, EN 302288-2 V1.6.1 |
|---|---|
| EMC | CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
| Safety | CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017,CE-LVD: EN IEC 62368-1:2020 +A11:2020 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013(only for camera) |
