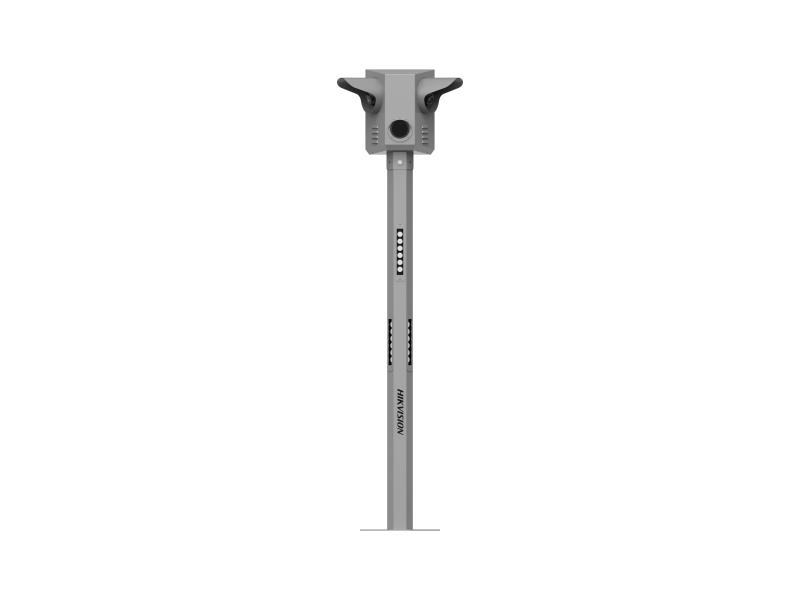

iDS-TCH55P-H
5 MP Axles Counting Trinocular Camera
iDS-TCH55P-H 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | Middle camera: 1/2.7" CMOS; Left and right camera: 1/1.8" CMOS |
|---|---|
| Max. Resolution | Middle camera: 2688 × 1944, Left and right camera: 2944 × 1728 |
| Min. Illumination | Middle camera: Color: 0.04Lux@ (F2.2，AGC ON); B/W: 0.02Lux@ (F2.2，AGC ON), Left and right camera: Color: 0.0005Lux @ (F1.6, AGC ON); B/W: 0.0002Lux@ (F1.6，AGC ON) |
| Shutter Time | 50 to 20000 μs |
| Day & Night | IR cut filter |
Lens
| Lens Type | Fixed focal lens |
|---|---|
| Focal Length & FOV | Middle camera: 1.16 mm, horizontal FOV 164°, vertical FOV 164°, diagonal FOV 164°, Left and right camera: 4 mm, horizontal FOV 89.2°, vertical FOV 50.9°, diagonal FOV 101.7° |
| Lens Mount | M12 |
| Iris Type | Fixed iris |
| Aperture | Middle camera: F2.2, Left and right camera: F1.6 |
Illuminator
| Built-in Supplement Light Type | IR light,White light |
|---|---|
| Light Bead | 18 |
| Built-in Supplement Light Range | Left and right light: Up to 20m, Middle light: Up to 4m |
| IR Wavelength | 850 nm |
Video
| Main Stream | Middle camera: 50Hz: 50fps(2688×1944, 1920×1088, 1280×1024, 640×480); 60Hz: 60fps(2688×1944, 1920×1088, 1280×1024, 640×480), Left and right camera: 50Hz 25fps(2944×1728, 1920×1200, 1920×1080, 1280×720); 60Hz 30fps(2944×1728, 1920×1200, 1920×1080, 1280×720) |
|---|---|
| Sub-Stream | Middle camera: 50Hz 50fps(1920×1088, 1280×720, 704×576, 352×288); 60Hz 60fps(1920×1088, 1280×720, 704×576, 352×288), Left and right camera: 50Hz 25fps(1920×1080, 1280×720, 704×576, 352×288); 60Hz 30fps(1920×1080, 1280×720, 704×576, 352×288) |
| Video Compression | Main stream: H.264/H.265/MJPEG, Sub-stream: H.264/H.265/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
Network
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,802.1X,IPv4/IPv6,UDP,ISUP,ARP,IGMP,SMTP |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI,SDK,ISUP |
| User/Host | Up to 32 users,3 user levels: administrator, operator, and user |
| Security | Password protection,HTTPS encryption,Complicated password,Control timeout settings,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5) |
| Network Storage | Local storage,SD card (512 GB) |
| Client | Hik-Central Pro |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Image Settings | AGC,White balance,Gain,Sharpness,Contrast,Brightness,Saturation,Adjustable by client software or web browser. |
|---|---|
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | Supported |
| Image Enhancement | BLC,HLC,3D DNR |
Interface
| Ethernet Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interface |
|---|---|
| On-Board Storage | Built-in memory card slot, supporting SD/SDHC/SDXC card, up to 512 GB |
| Alarm | 1 IO input(s) |
| RS-485 | 1 RS-485 ((half duplex, HIKVISION) |
| RS-232 | 1 RS-232 |
Event
| Basic Event | HDD error,Network disconnected,IP address conflict |
|---|
Road Traffic and Vehicle Detection
| Trigger Mode | Video trigger |
|---|---|
| Smart Function | License plate recognition, Axle total number recognition, Tyre total number recognition, Axle type recognition, Floating axle recognition |
| LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 99%, LPR accuracy > 98%, Mistaken capture rate < 2% |
General
| Operating System | Linux |
|---|---|
| Power | AC 100 V to 240 V, 2.0 A, max. 60 W, 2-core terminal block, |
| Material | SGCC |
| Dimension | 1839.8 mm × 503.3 mm × 282.5 mm (72.43" × 19.81" × 11.12") (L × W × H) |
| Package Dimension | 1925 mm × 410 mm × 430 mm (75.79" × 16.14" × 16.93") (L × W × H) |
| Weight | Approx. 22.25 kg (49.05 lb.) |
| With Package Weight | Approx. 24.15 kg (53.24 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
| Heater | Not supported |
| Language | 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
Approval
| EMC | CE-EMC: EN 50130-4: 2011+A1: 2014, EN55032: 2015+A11: 2020+A1: 2020, EN 55035: 2017+A11: 2020, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021+A2: 2024, EN IEC 61326-1: 2021 |
|---|---|
| Safety | CB: IEC 62368-1: 2014,CE-LVD: EN 62368-1: 2014+A11: 2017, CB: IEC 62368-1: 2018, CE-LVD: EN 62368-1: 2020+A11: 2020 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IP54: IEC 60529-2013 |
