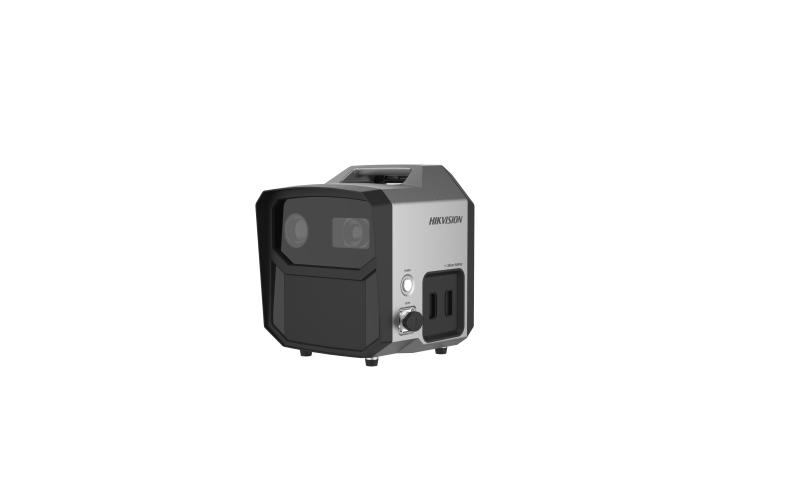

iDS-TDICC0-H
Dual 12 MP Portable Radar Speed Detector
iDS-TDICC0-H 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | 2 * 1.1" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 4112 × 3072 |
| Min. Illumination | Color: 0.001 Lux @ (F1.4, AGC ON), B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with white light |
| Shutter Time | 50 to 40000 μs |
| Day & Night | IR cut filter |
Lens
| Lens Type | Fixed focal lens, 25 and 50mm |
|---|---|
| Focal Length & FOV | Channel 1: 25 mm, horizontal FOV 32.1°, vertical FOV 23.9°, diagonal FOV 40.3°, Channel 2: 50 mm, horizontal FOV 16.7°, vertical FOV 12.2°, diagonal FOV 20.8° |
| Focus | Auto |
| Aperture | Channel 1：F1.6 Channel 2：F1.4 |
Illuminator
| Built-in Supplement Light Type | White light |
|---|---|
| Light Bead | 6 |
| Built-in Supplement Light Range | Up to 50 m |
| Flashlight Control | Supports light control/time control |
| IR Wavelength | 850 nm |
Radar
| Working Frequency | 24.05 to 24.25 GHz |
|---|---|
| Modulation Waveform | FMCW |
| Speed Measuring Range | 10 to 320 km/h |
| Max. Detectable Targets | Up to 32 |
| Speed Measuring Accuracy | ± 2 km/h |
| Antenna Beam Width | 35° × 16° |
| Capture Rate | ≥ 95% |
Video
| Main Stream | 50 Hz: 25 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720) 60 Hz: 24 fps (4112 × 3072, 3296 × 2472, 3392 × 2008, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1600 × 1200, 1280 × 720) |
|---|---|
| Sub-Stream | 50 Hz: 25 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576) 60 Hz: 24 fps (1920 × 1080, 1600 × 1200, 1280 × 720, 704 × 576) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576) 60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 576) |
| Video Compression | Main stream: H.265/H.264/MJPEG,, Sub-stream: H.265/H.264/MJPEG,, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
PTZ
| Pan Range | 25mm: Fixed Lens 50mm: -10° to 10° |
|---|---|
| Tilt Range | 25mm: Fixed Lens 50mm: -5° to 3° |
Network
| Protocols | TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS,RTSP,NTP,802.1X,QoS,IPv4/IPv6,UDP,ISUP |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI,SDK,ISUP |
| User/Host | Up to 16 users |
| Security | Password protection,Complicated password,IP address filter,HTTPS encryption,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.3,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5) |
| Network Storage | Local storage,CVR,ANR |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
Wireless (Wi-Fi)
| Encryption Mode | WPA-PSK/WPA2-PSK |
|---|---|
| Wi-Fi Protocol | IEEE 802.11a/b/g/n/ac/ax |
| Frequency Range | 2.4 GHz~2.4835 GHz, 5.150 GHz~5.850 GHz |
| Channel Bandwidth | 20/40/80 MHz |
| Modulation | 802.11b: CCK(11,5.5Mbps),QPSK(2Mbps),BPSK(1Mbps), 802.11a/g/n/ac/ax: OFDM |
| Transfer Rate | 11a: up to 54 Mbps, 11b: up to 11 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps, 11ac: up to 433.3 Mbps, 11ax: up to 600 Mbps |
| Wireless Range | Up to 120 m (The performance varies based on actual environment.) |
Wireless (Mobile Communication)
| Frequency | LTE FDD: Band 1/3/5/7/8/20/28 LTE TDD: Band 38/40/41 WCDMA: Band 1/5/8 GSM/GPRS/EDGE: 850/900/1800MHz |
|---|---|
| Standard | LTE-FDD, LTE-TDD, DC-HSPA+, WCDMA, EDGE, GPRS |
| SIM Card Type | Nano SIM |
| Image Settings | Saturation, brightness, contrast, white balance, AGC |
|---|---|
| Day/Night Switch | Auto,Schedule,Manual |
| Image Enhancement | BLC, HLC, 3D DNR |
Supplement Detection (Satellite Positioning)
| Satellite Positioning | GPS |
|---|
Interface
| Video Output | 2 outputs for extra supplement light control |
|---|---|
| Ethernet Interface | 1 RJ45 10M/100M/1000M Ethernet interface |
| USB | 1 USB 3.0 |
Event
| Basic Event | HDD Error, network disconnected, IP address conflicted |
|---|
Road Traffic and Vehicle Detection
| Trigger Mode | Radar trigger,Video trigger |
|---|---|
| Capture Speed Range | 10 to 320 km/h |
| Coverage | Up to 6 lanes |
| Smart Function | License Plate Recognition, Vehicle Type Classification, Vehicle Color, Vehicle Brand |
| LPR Countries/Regions | Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 95%, LPR accuracy > 98%, Mistaken capture rate < 5% |
| No License Plate Detection | Supported |
General
| Operating System | Linux and Android dual system |
|---|---|
| Power | DC12V, 6.5 A, max. 78W |
| Material | ADC & PC |
| Dimension | 292 mm × 270.5 mm × 252.8 mm (11.50" × 10.65" × 9.95") (L × W × H) |
| Package Dimension | 435 mm × 375 mm × 395 mm (17.13" × 14.76" × 15.55") (L × W × H) |
| Weight | Approx. 8.8 kg (19.4 lb.) |
| With Package Weight | Approx. 11.6 kg (25.6 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing), Lithium batery included: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| General Function | Password protection,One-key reset,Three streams,Heartbeat, NTP time sync, Anti-Theft/Fall Detection, Power Management |
Approval
| RF | CE-RED: EN 300328 V2.2.2, EN 303413 V1.2.1, EN 301511 V12.5.1, EN 301908-1 V15.2.1, EN 301908-2 V13.1.1, EN 301908-13 V13.2.1, ETSI TS 136 521-1 V18.4.0, EN IEC 62311: 2020 |
|---|---|
| EMC | CE-EMC: EN 301489-1 V2.2.3, EN 301489-17 V3.3.1, EN 301489-19 V2.2.1, EN 301489-51 V2.1.1, EN 301489-52 V1.3.1,EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2: 2019+A1:2021+A2:2024, EN 55032: 2015+A11:2020+A1:2020, EN 50130-4: 2011+A1:2014, EN 61000-3-3: 2013+A1:2019+A2:2021,EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN IEC 61326-1: 2021 |
| Safety | CB: IEC 61010-1:2010, IEC 61010-1:2010/AMD1:2016 CE-LVD: EN 61010-1:2010+A1:2019 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IK10: IEC 62262:2002,IP66: IEC 60529-2013 |
