描述

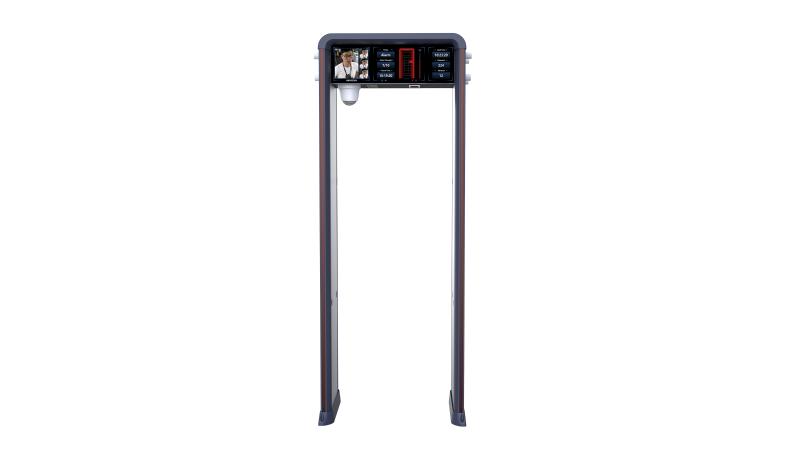

ISD-SMG572LC-I
Walk-though Metal Detector
ISD-SMG572LC-I 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Walk-Through Metal Detector
| Detection zones | 161112183372 zone(s) |
|---|---|
| Display type and size | 7-inch LCD、29-inch LCD |
| Package dimension | Case Package: 850 mm × 528 mm × 370 mm Top Cover Package: 920 mm × 650 mm × 225 mm Planks Package: 2300 mm × 695 mm × 255 mm IP Camera Package: 192 mm × 182 mm × 160 mm |
| Self diagnostic | Supported |
Dimension Parameters
| Tunnel Size | 2002 mm × 727 mm × 600 mm(H × W × D) |
|---|---|
| Dimension | 2287 mm × 871 mm × 666 mm (H × W × D) |
Specification Parameters
| Power | 100-240V～, 50/60Hz, 1A Max |
|---|---|
| Operating Temperature | -10 ℃ to 55 ℃ |
Device Interface
| Network Interface | 1 |
|---|---|
| Power Interface | 1 |
| Alram Output | 2 output interfaces |
