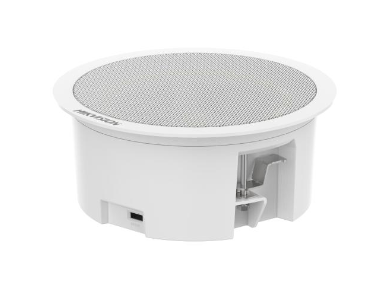

HIKVISION Network Ceiling Speaker 3W

DS-QAZ1203G1-BE

  • Adopt high-speed industrial grade dual core chips, built-in NOR Flash+EMMC dual storage, support dual backup of the system to ensure stable and reliable system performance.
  • Support secure startup, user login locking mechanism, and password complexity prompts, support security audit log traceability, and improve system network security.
  • Support batch unified management of remote platforms through IP networks (local area networks/public networks) and flexible configuration of local WEB single machines, while also support local audio collection and playback, adapting to various scene applications.
  • Support fixed resistance output and can be connected to an external sub speaker to increase the coverage area of the sound field, saving installation and wiring costs.
  • Support alarm input, arming schedule, and audio linkage, support TTS speech synthesis and text broadcasting, with natural and smooth standard male and female dual audio options.
分類:

描述

HIKVISION Network Ceiling Speaker 3W

DS-QAZ1203G1-BE

Specification



Speaker

  • Rated Power3 W
  • Impedance8 Ω
  • Max. Acoustic Pressure97 dBSPL
  • Sensitivity(1 M, 1 W)93 dB
  • DirectionAll directions
  • Frequency Response300 Hz to 15 kHz
  • SNR82 dB



Function

  • Audio AlgorithmAEC、AGC、ANS、DRC
  • Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
  • Audio File FormatMP3, WAV
  • NTP TimingSupport
  • BroadcastRegular broadcast, live broadcast, emergency broadcast
  • Speech SynthesisEnglish



Network

  • Network ProtocolIPv4, HTTP, HTTPS , SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
  • Interface Protocol (API)ISAPI, ISUP, RTP
  • ClientHik-Connect, ivms/4200, HikCentral Professional, Hik-Partner Pro, NVR, MileStone
  • Functions
  • Audio FunctionSupports digital noise reduction, manually adjustable for 5 gears to ensure communication/audio quality.
  • Communication
  • Communication MethodSupport wired network and bluetoothcommunication



Interface

  • Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
  • Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
  • APIISAPI, ISUP
  • AlarmAlarm input × 2
  • Audio In3.5 mm audio interface × 1
  • Audio Out

    Fixed resistance output × 1，phoenix terminal，8 Ω

    *The primary speaker(3 W, 8 Ω) can be connected to a maximum of 3 secondary speakers(3 W, 8 Ω).



General

  • PowerPoE: 802.3at，12 VDC/1.5 A
  • MaterialDevice body: plastic; Mesh cover: metal
  • Language5 languages: English, French, Spanish, German, Italian
  • DimensionØ179 mm × 73.5 mm (Ø7.05″ × 2.89″) (Hole size: 160 mm）
  • Package Dimension255mm × 243mm × 175mm (10.04″ × 9.57″ × 6.89″)
  • WeightApprox. 0.3 kg (0.66 lb.)
  • With Package WeightApprox. 0.5 kg (1.1 lb.)
  • ColorWhite
  • Packing List

    Device × 1

    Mesh cover × 1

    Regulatory Compliance and Safety Information × 1

  • Operating Temperature-10 °C to 50 °C(14 °F to 122 °F)
  • Operating Humidity＜90% (No condensation)



Approval

  • RF

    CE-RED:EN 301489-1 V2.2.3 (BT or 2.4G),EN 301489-17 V3.2.4 (BT or 2.4G),EN 300 328 V2.2.2 (BT or 2.4G) ,EN62311 2020(BT or 2.4G)

    RCM: EN 300 328 V2.2.2 (BT or 2.4G) ,AS/NZS 2772.2:2016+A1:2018, ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev.1), ARPANSA RPS S01 Advisory Note

    IC ID: RSS-247(BT or 2.4G)

    ANATEL: Resolution No. 680/2017,Act No. 14448/2017,Act No. 950/2018,Act No. 1120/2018

  • EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
  • Safety

    CB: IEC 62368-1:2014

    CE-LVD: EN 62368-1:2014/A11:2017

  • Environment

    CE-RoHS: 2011/65/EU

    WEEE: 2012/19/EU

    Reach: Regulation (EC) No 1907/2006
