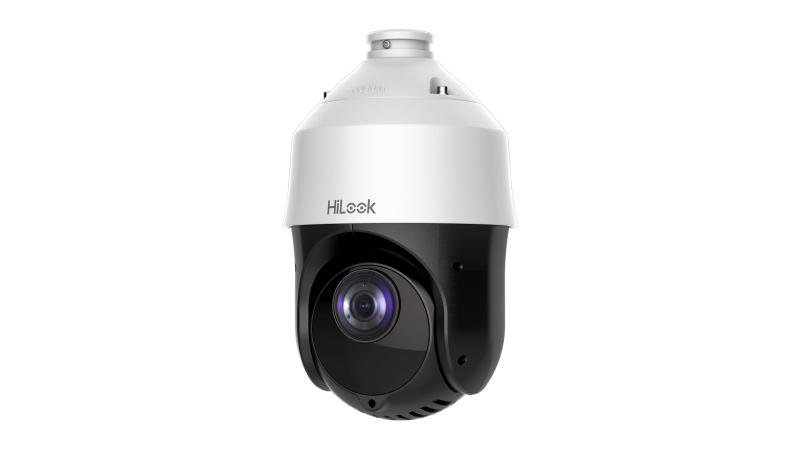

PTZ-N4215I-DE
4-inch 2 MP 15X Powered by DarkFighter IR Network Speed Dome
PTZ-N4215I-DE 屬海康威視閉路電視產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。選型及報價可參考閉路電視安裝。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/2.8" progressive scan CMOS |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Zoom | 15x optical, 16x digital |
Lens
| Focal Length | 5 mm to 75 mm, 15× optical |
|---|---|
| FOV | Horizontal field of view: 53.8° to 4.0° (wide-tele), Vertical field of view: 31.9° to 2.3° (wide-tele), Diagonal field of view: 60.4° to 4.6°(wide-tele) |
| Focus | Auto, semi-auto, manual |
| Aperture | F1.6 to F3.0 |
| Zoom Speed | Approx. 2.4 s (optical lens, wide-tele) |
Illuminator
| Supplement Light Type | IR |
|---|---|
| Supplement Light Range | Up to 100 m |
| Smart Supplement Light | Yes |
PTZ
| Movement Range (Pan) | 360° endless |
|---|---|
| Movement Range (Tilt) | From -15° to 90° (Auto-flip) |
| Pan Speed | Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s |
| Tilt Speed | Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display | Yes |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust |
| Power-off Memory | Yes |
Video
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|---|---|
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | Main stream, sub-stream and third stream respectively support four fixed areas |
Network
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
|---|---|
| Simultaneous Live View | Up to 20 channels |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform;Open Network Video Interface, ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Security | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Network Storage | NAS (NPS, SMB/ CIPS), ANR |
| Client | iVMS-4200, HiLookVision |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51;IE10-11, Chrome 57+, Firefox 52+, Safari 12+ |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
|---|---|
| Wide Dynamic Range (WDR) | 120 dB |
| Defog | Digital defog |
| Image Stabilization | EIS;No |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable privacy masks |
| Regional Focus | Yes |
| Regional Exposure | Yes |
Interface
| Ethernet Interface | 1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3 at, class4) |
|---|---|
| On-board Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
Event
| Basic Event | Motion Detection, Video Tampering Detection, Exception Detection |
|---|---|
| Smart Event | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection |
General
| Power | 12 VDC, 2.0 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A, class4 Max.:18 W (IR Max.6 W) |
|---|---|
| Dimension | Ø 165.9 mm × 290 mm (Ø 6.53" × 11.42") |
| Material | ADC 12, PC+10% GF |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
Approval
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015) |
|---|---|
| Safety | UL (UL 62368-1) CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005); LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
