描述

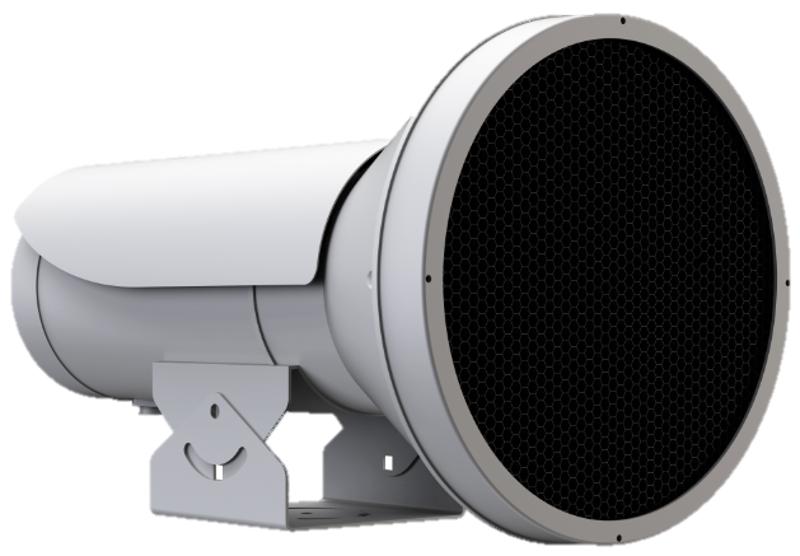

SL-1211-1I
IR Flash Supplement Light
SL-1211-1I 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Supplement Light
| Light Type | IR light |
|---|---|
| IR Wavelength | ≥850nm |
| Angle of Light | 10° |
| Effective Distance | 16 to 25 m |
| Response Time | ≤ 67 ms |
| Trigger Manner | TTL level (switch trigger optional) |
| Trigger Level | 5 to 12 V (High level trigger) |
| Trigger Frequency | 0.5 Hz |
| Flash Energy | 200 J |
| Service Life | ≥ 20 million Times |
| Coverage | 1 lane(s) |
Interface
| Flash Trigger Input | 1 Flash trigger input |
|---|---|
| RS-485 | 1 RS-485 |
Function
| Day and Night Function | Supports ambient brightness detection and auto startup at low illumination (optional) |
|---|---|
| Brightness Control | 0 to 100 levels of brightness |
| Remote Control | Support |
General
| Power | AC 100 V to 240 V, 3.5 A, 60 W, three wires |
|---|---|
| Material | Aluminium alloy |
| Dimensions | 469 mm × 269.5 mm × 270.76 mm (18.46" × 10.61" × 10.66") (L × W × H) |
| Package Dimensions | 536 mm × 345 mm × 355 mm (21.10" × 13.58" × 13.98") (L × W × H) |
| Weight | Approx. 5.2 kg (11.53 lb.) |
| With Package Weight | Approx. 6.6 kg (14.48 lb.) |
| Operating Condition | -25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -25 °C to 70 °C (-13 °F to 158 °F). Humidity 95% or less (Non-condensing) |
Approval
| EMC | EN 50130-4:2011+A1:2014, EN 55032:2015+A11:2020+A1:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021 |
|---|---|
| Safety | CB: IEC 60598-1:2020, IEC 60598-2-5:2015, IEC 62031:2018, IEC TR 62778:2014, CE-LVD: EN 60598-1, EN 60598-2-5, EN 62031 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP65: IEC 60529: 1989+A1: 1999+A2: 2013 |
