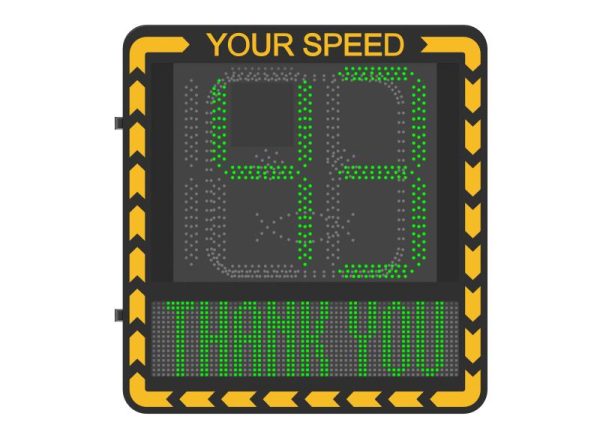

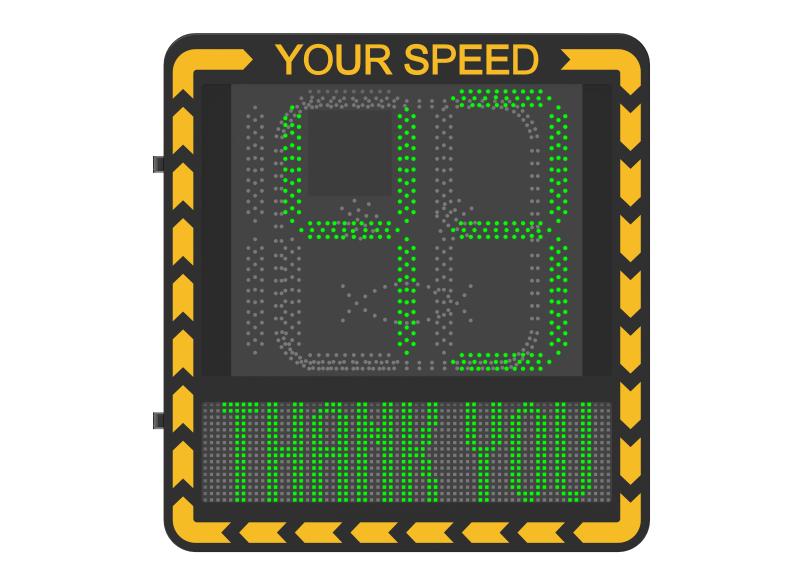

YJP7681-188-NR
Outdoor Speed Sign LED Display
YJP7681-188-NR 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Network
| Protocols | TCP/IP,HTTP,DHCP |
|---|---|
| User/Host | Up to 16 users,3 user levels: administrator, operator, and user |
| Security | Password protection,HTTPS encryption,IP address filter,Control timeout settings |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
Wireless (Wi-Fi)
| Encryption Mode | WPA-PSK/WPA2-PSK |
|---|---|
| Wi-Fi Protocol | IEEE802.11b,IEEE802.11g,IEEE802.11n |
| Frequency Range | 2.4 GHz to 2.484 GHz |
| Channel Bandwidth | 20/40 MHz |
| Modulation | 802.11b: DSSS/CCK,802.11g: BPSK/QPSK/16-QAM/64-QAM,802.11n: BPSK/QPSK/16-QAM/64-QAM |
| Wireless Range | Up to 50 m (The performance varies based on actual environment.) |
Interface
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port(s) |
|---|---|
| On-Board Storage | Built-in eMMC 2G |
| RS-485 | 1 RS-485 |
Warning Screen
| Central Light Strength | ≥ 3000cd/㎡ |
|---|---|
| LED Visual Angle | ＞ 100° |
| LED Service Life | ≥ 100,000 hours |
| LED Pixel Pitch | 10 mm |
General
| Power | DC 12 V ± 5%, 4.3 A, 2-core terminal block, 1. The average power consumption: 20 W, 2. The max. power consumption: 52 W |
|---|---|
| Material | SECC |
| Dimension | 759 mm × 96 mm × 810 mm (29.88" × 3.78" × 31.89") (L × W × H) |
| Package Dimension | 930 mm × 250 mm × 988 mm (36.6" × 9.84" × 38.9") (L × W × H) |
| Weight | Approx. 15.2 kg (33.5 lb.) |
| With Package Weight | Approx. 18.2 kg (40.1 lb.) |
| Operating Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| General Function | Remote config via WiFi, Customized LED display(Chinese, English, Spanish, Portuguese),Password protection |
Approval
| RF | CE-RED: EN 301489-1 V2.2.3, EN 301489-3 V2.3.2, EN 301489-17 V3.3.1, EN 301 489-52 V1.2.1, EN 61000-3-3: 2013+A1:2019+A2:2021, EN IEC 61000-3-2: 2019+A1:2021+A2:2024, EN 300 328 V2.2.2, EN IEC 62311:2020 |
|---|---|
| EMC | CE-EMC: EN 55032: 2015+A11:2020+A1:2020, EN 55035: 2017+A11:2020, EN 61000-3-3: 2013 +A1:2019+A2:2021, EN IEC 61000-3-2: 2019+A1:2021+A2:2024, EN IEC 61326-1: 2021 |
| Safety | CE-LVD: EN IEC 62368-1:2020+A11:2020, CE-LVD: EN 61010-1:2010+A1:2019 CB: IEC 62368-1:2018, CB: IEC 61010-1:2010, IEC 61010-1:2010/AMD1:2016 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IP66: IEC 60529-2013 |
