描述

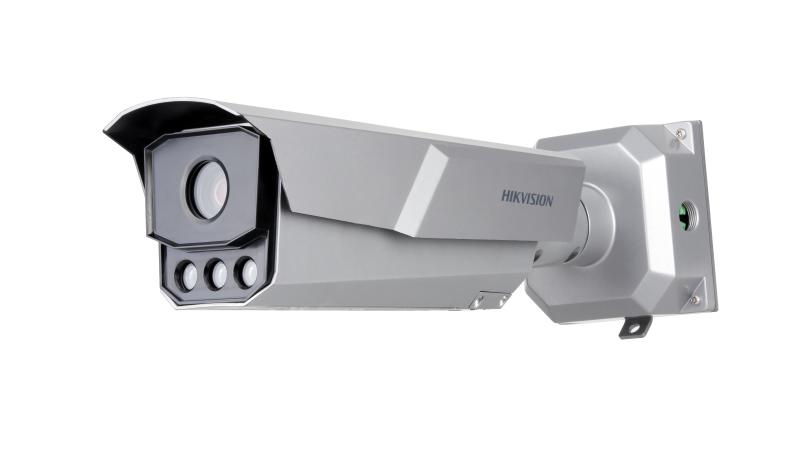

iDS-TCM803-H
8MP ANPR Moto Varifocal Bullet Camera
iDS-TCM803-H 屬海康威視專業產品。傑成系統有限公司（香港防盜）為海康威視產品經銷商，可按項目報價供應；安裝範圍視乎項目另行確認。查詢請聯絡我們。規格以原廠資料為準。
規格
Camera
| Image Sensor | 1/1.8″ progressive scan CMOS |
|---|---|
| Max. Resolution | 3840 ×2160 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light |
| Shutter Time | 7/10000s to 1/25s |
| Day & Night | 24/7 color imaging |
Lens
| Focal Length & FOV | 8-32mm: Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3° 2.8-12mm: Horizontal: 111.1°to 38.4°, Vertical:57.1°to 22.2°, Diagonal: 139.9° to 43.6° 10-50mm: Horizontal:41.2°to 9.3°, Vertical: 22.8° to 5.3°, Diagonal: 47.6°to 10.6° |
|---|---|
| Focus | Auto |
| Iris Type | DC-IRIS |
| Aperture | 8-32mm：F1.7 2.8-12mm：F1.47-F2.5 10-50mm：F1.38-F1.56 |
Illuminator
| Built-in Supplement Light Type | White light |
|---|---|
| Supplement Light Number | 3 |
| Built-in Supplement Light Range | Up to 50 m |
Video
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080P, 1280 × 720P) 60 Hz: 30 fps (3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080P, 1280 × 720P) |
|---|---|
| Sub-Stream | 50Hz: 25 fps (3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080P, 1280 × 720P, 704 × 576) 60 Hz: 30 fps (3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080P, 1280 × 720P, 704 × 576) |
| Third Stream | 50 Hz: 25 fps (1280 × 720P, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720P, 704 × 576, 352 × 288) |
| Video Compression | H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG Third-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile/Main profile/High profile |
| H.265 Type | Main profile |
Audio
| Audio Compression | G.711/G.722.1 |
|---|---|
| Audio Bit Rate | 8Kbps (G.711) /16Kbps (G.722.1) |
Network
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2, 1.3,Host authentication (MAC address) |
| Network Storage | Micro SD/TF card (1 TB), local storage and CVR, NVR, ANR |
| Client | Hik-Central Master,Hik-Central Pro,HikCentral Master Lite |
| Web Browser | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
| Image Settings | Saturation,Brightness,Contrast,Sharpness,Gain,White balance,Adjustable by client software or web browser.,AGC |
|---|---|
| Day/Night Switch | Auto/Scheduled/Manaul |
| Wide Dynamic Range (WDR) | 140 dB |
| Image Enhancement | BLC, 3D DNR |
Interface
| Ethernet Interface | 1 RJ45 10M/100M/1000M Ethernet interface |
|---|---|
| On-Board Storage | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 1 TB |
| Audio | Supported |
| Alarm | 1 input interface, 1 output interface, 2 relays |
| RS-485 | 1 RS-485 interface |
| Wiegand | 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit) |
Event
| Basic Event | HDD error,Network disconnected,IP address conflict |
|---|
Road Traffic and Vehicle Detection
| Coverage | Up to 4 lane(s) |
|---|---|
| Smart Function | license plate recognition of vehicles,Helmet Detection,Manned Non-Motor Detection,Enclosed Area Speeding Traffic flow detection：average speed, traffic flow, queuing length, and traffic status Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving |
| LPR Countries/Regions | 120+ countries/regions: Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan |
| Accuracy (Under recommended installation and lighting conditions) | Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| No License Plate Detection | Supported |
| Motorcycle LPR | Supported |
| ADR License Plate | Supported |
| Vehicle Type | Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle |
| Vehicle Color | Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only |
| Vehicle Manufacturer | 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo |
| Capture Speed Range | 5 to 120 km/h |
| Blocklist and Allowlist | Max. 50000 records |
General
| Operating System | Linux |
|---|---|
| Power | DC 12 V to 24 V, 2.25 A, max. 23 W, two-core terminal block, PoE: 802.3bt, Type 2, Class 4, max. 23 W |
| Material | Aluminum alloy |
| Dimension | 414 mm × 120 mm × 120 mm (16.3" × 4.7" × 4.7") (L × W × H) |
| Package Dimension | 595 mm × 259 mm × 193 mm (23.4" × 10.2" × 7.6") (L × W × H) |
| Weight | Approx. 2.975 kg (6.56 lb.) |
| With Package Weight | Approx. 4.385 kg (9.67 lb.) |
| Operating Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
| General Function | One-key reset, three streams, heartbeat, password protection, watermark |
| Language | 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish |
Approval
| EMC | EN 55032: 2015+A11:2020+A1:2020, EN IEC 61000-3-2: 2019+A1:2021+A2:2024, EN 61000-3-3: 2013+A1:2019+A2:2021, EN 50130-4: 2011+A1: 2014 |
|---|---|
| Safety | CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017,CE-LVD: EN IEC 62368-1:2020 +A11:2020 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
| Protection | IK10: IEC 62262:2002,IP68: IEC 60529-2013 |
