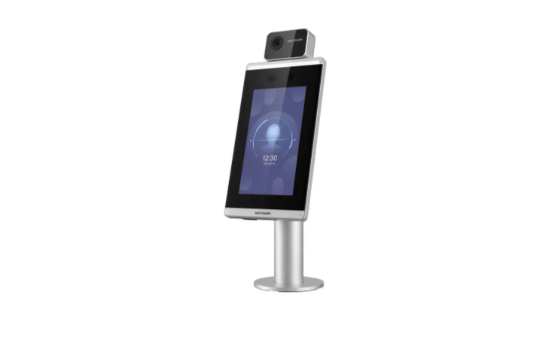

Face Recognition Module For Turnstile
- Compatible with Hikvision turnstile
- Communicates with the third-party turnstile via IO output or Wiegand
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
- Recognition distance: 0.3 to 2 m
- Face mask detection
- Displays temperature measurement results on the authentication page
- 50,000 face capacity and 100,000 event capacity
- Face recognition duration ＜ 0.2 s/User
- face recognition accuracy rate ≥ 99%
Specification
Temperature Measurement
- Temperature Range : 30 °C to 45 °C (86 °F to 113 °F)
- Sensor : Vanadium Oxide uncooled sensor
- Resolution : 120 × 160
- Frame Rate : 25 fps
- Measurement Accuracy : 0.1 °C
- Measurement Deviation : ± 0.5 °C, without black body calibration
- Measuring Distance : 0.3 to 2 m
Display
- Screen Size : 7-inch
- Type : Touch screen
Video
- Resolution : 2 MP
- Lens : Dual-lens
Network
- Wired Network : Support, 10/100/1000 Mbps self-adaptive
- Wi-Fi : Support
Interface
- Network Interface : 1
- RS-485 : 1
- Wiegand : 1
- Lock Control : 1
- Exit Button : 1
- Door Contact Input : 1
- Alarm Input : 2
- Alarm Output : 1
- TAMPER : 1
Capacity
- Face Capacity : 50,000
- Event Capacity : 100,000
Authentication
- Face Recognition Duration : ＜ 0.2 s per person
- Face Recognition Distance : 0.3 to 2 m
General
- Power Supply : 12 VDC/2 A
- Working Temperature
0 °C to 50 °C (32 °F to 122 °F)
For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)
- Working Humidity : 10 to 90% (No condensing)
- Application Environment : Indoor and windless environment use only
Function
- Face Anti-Spoofing : Support
- Audio Prompt : Support
